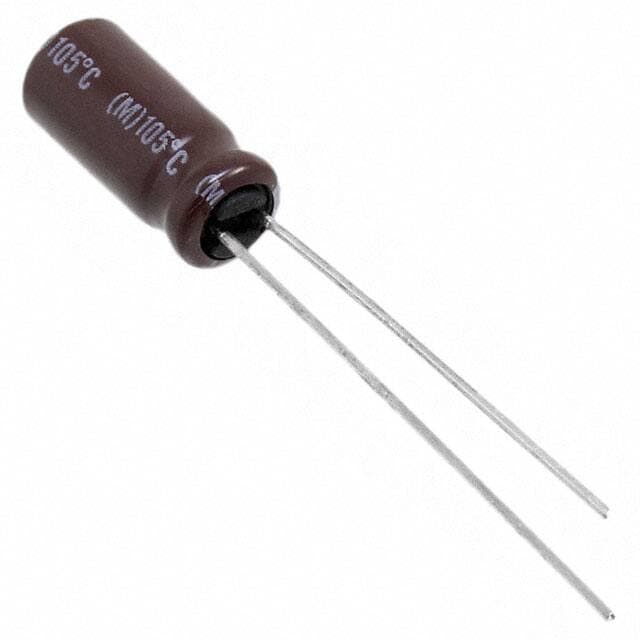

United Chemi-Con EKZN250ELL680ME11D
United Chemi-Con EKZN250ELL680ME11D

United Chemi-Con EKZN250ELL680ME11D

Manufacturer No:

EKZN250ELL680ME11D

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

KZN 68?F Capacitor ±20% Bulk Through Hole 450mA 0.197Dia 5.00mm -40°C~105°C Polar 2.0066mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKZN250ELL680ME11D information

United Chemi-Con EKZN250ELL680ME11D technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKZN250ELL680ME11D.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • KZN
  • Published
  • 2016
  • Size / Dimension
  • 0.197Dia 5.00mm
  • Tolerance
  • ±20%
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Radial
  • Applications
  • General Purpose
  • Capacitance
  • 68?F
  • Voltage - Rated DC
  • 25V
  • Lead Pitch
  • 2.0066mm
  • Lead Spacing
  • 0.079 2.00mm
  • Lifetime @ Temp
  • 7000 Hrs @ 105°C
  • Ripple Current
  • 450mA
  • Polarization
  • Polar
  • Life (Hours)
  • 7000 hours
  • Impedance
  • 380mOhm
  • Ripple Current @ Low Frequency
  • 180mA @ 12Hz
  • Lead/Base Style
  • Straight
  • Diameter
  • 5mm
  • Height
  • 5mm
  • Height Seated (Max)
  • 0.492 12.50mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for United Chemi-Con EKZN250ELL680ME11D.

Datasheets:

EKZN250ELL680ME11D Overview


As far as the ripple current is concerned, it is 450mA @ 100kHz at full charge.As far as the ripple current is concerned, it is 180mA @ 12Hz at the lowest charge.The height seated (Max) should be kept below 0.492 12.50mm.This capacitor operates from a voltage - Rated DC of 25V.The operating temperature should be maintained at -40°C~105°C for high efficiency.

EKZN250ELL680ME11D Features


the ripple current is 450mA @ 100kHz.
the ripple current is 180mA @ 12Hz.
voltage - Rated DC of 25V
an operating temperature of -40°C~105°C


EKZN250ELL680ME11D Applications


There are a lot of United Chemi-Con
EKZN250ELL680ME11D applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
