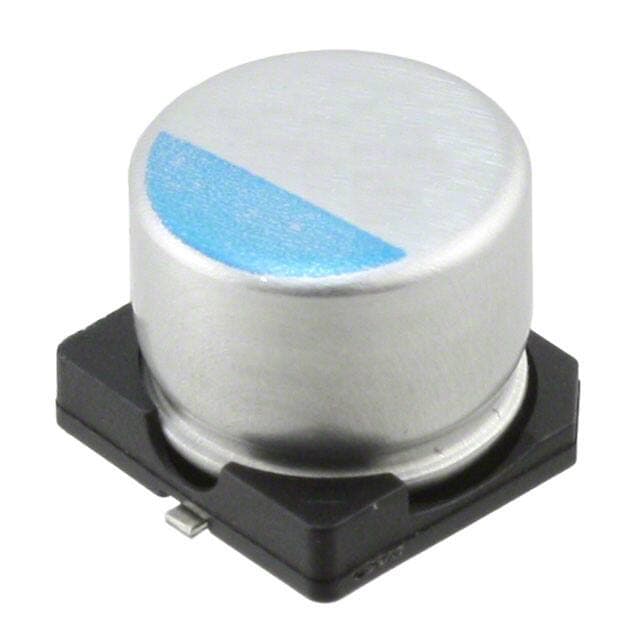

United Chemi-Con APXE2R5ARA821MH80G
Manufacturer No:
APXE2R5ARA821MH80G
Manufacturer:
Package:
Radial, Can - SMD
Description:
820?F ±20% Radial, Can - SMD 0.315 8.00mm Tape & Reel (TR) 12mOhm NPCAP?-PXE Surface Mount Polymer General Purpose
Quantity:
Delivery:




Payment:






In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
APXE2R5ARA821MH80G information
United Chemi-Con APXE2R5ARA821MH80G technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con APXE2R5ARA821MH80G.
- Type
- Parameter
- Factory Lead Time
- 16 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- Radial, Can - SMD
- Surface Mount Land Size
- 0.327Lx0.327W 8.30mmx8.30mm
- Operating Temperature
- -55°C~105°C
- Packaging
- Tape & Reel (TR)
- Series
- NPCAP?-PXE
- Published
- 2014
- Size / Dimension
- 0.315Dia 8.00mm
- Tolerance
- ±20%
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- SMD/SMT
- Type
- Polymer
- Applications
- General Purpose
- Capacitance
- 820?F
- Voltage - Rated DC
- 2.5V
- ESR (Equivalent Series Resistance)
- 12mOhm
- Lifetime @ Temp
- 2000 Hrs @ 105°C
- Leakage Current
- 410?A
- Ripple Current
- 4.26A
- Life (Hours)
- 2000 hours
- Dissipation Factor
- 0.12 %
- Height
- 8.3mm
- Height Seated (Max)
- 0.315 8.00mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for United Chemi-Con APXE2R5ARA821MH80G.
APXE2R5ARA821MH80G Overview
4.26A @ 100kHz ripple current @ high frequency is required in order to power systems.There is a 12mOhm in ESR (Equivalent Series Resistance) in this electrical device.The dissipation factor for this part is 0.12 %.Stable operation requires -55°C~105°C as the operating temperature.
APXE2R5ARA821MH80G Features
4.26A @ 100kHz ripple current on a high frequency
a 12mOhm in ESR (Equivalent Series Resistance) in this electrical device
an operating temperature of -55°C~105°C
APXE2R5ARA821MH80G Applications
There are a lot of United Chemi-Con
APXE2R5ARA821MH80G applications of aluminum polymer capacitors.
- LED driver power supplies
- Phone chargers
- Motherboards
- Servers and adapters (laptop power supplies)
- Medical equipment
- Switching Power Supply and DC/DC Converter.
- Buck up Power Supplies of CPU(VRM etc.)
- Miniature high Power Supply.
