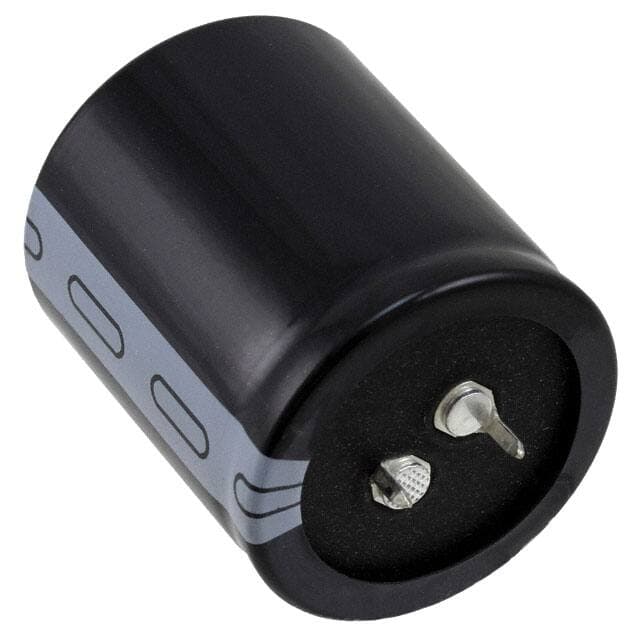

United Chemi-Con ESMR451VSN331MA25S

Manufacturer No:

ESMR451VSN331MA25S

Manufacturer:

United Chemi-Con

Package:

Radial, Can - Snap-In

Description:

SMR 330?F Capacitor ±20% Bulk Through Hole 2.1A 1.378Dia 35.00mm -25°C~85°C Polar 10.0076mm Radial, Can - Snap-In

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ESMR451VSN331MA25S information

United Chemi-Con ESMR451VSN331MA25S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con ESMR451VSN331MA25S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can - Snap-In

Operating Temperature
-25°C~85°C

Packaging
Bulk

Series
SMR

Published
2016

Size / Dimension
1.378Dia 35.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Applications
General Purpose

Voltage - Rated
450V

Capacitance
330?F

Lead Pitch
10.0076mm

Lead Spacing
0.394 10.00mm

Lifetime @ Temp
2000 Hrs @ 85°C

Ripple Current
2.1A

Polarization
Polar

Life (Hours)
2000 hours

Ripple Current @ Low Frequency
2.1A @ 120Hz

Ripple Current @ High Frequency
3.003A @ 50kHz

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for United Chemi-Con ESMR451VSN331MA25S.

Datasheets:

unitedchemicon-esmr451vsn221mq30s-datasheets-0551.pdf

ESMR451VSN331MA25S Overview

Ripple current at full charge is 3.003A @ 50kHz.It is 2.1A @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 1.083 27.50mm.It is recommended that the operating temperature be kept at -25°C~85°C to achieve high efficiency.

ESMR451VSN331MA25S Features

the ripple current is 3.003A @ 50kHz.
the ripple current is 2.1A @ 120Hz.
an operating temperature of -25°C~85°C

ESMR451VSN331MA25S Applications

There are a lot of United Chemi-Con
ESMR451VSN331MA25S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
