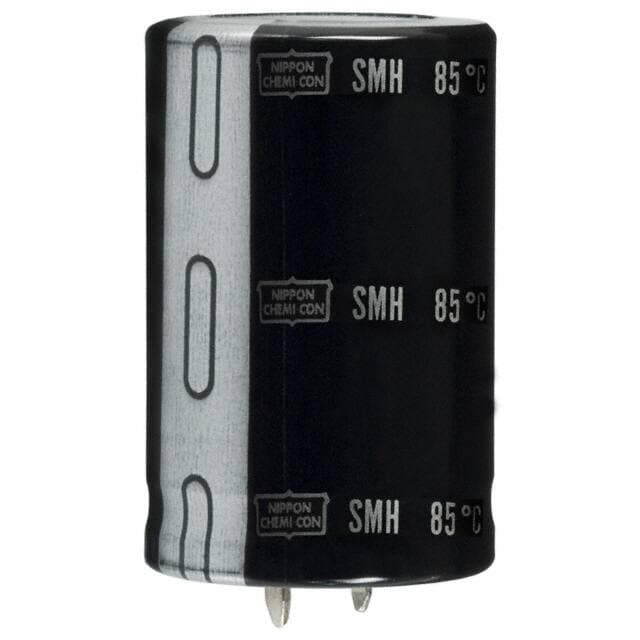

United Chemi-Con ESMH160VSN223MQ40T
United Chemi-Con ESMH160VSN223MQ40T

United Chemi-Con ESMH160VSN223MQ40T

Manufacturer No:

ESMH160VSN223MQ40T

Manufacturer:

United Chemi-Con

Package:

Radial, Can - Snap-In

Description:

SMH 22000?F Capacitor ±20% Bulk Through Hole 4.26A 1.000Dia 25.40mm -40°C~85°C Polar 10mm Radial, Can - Snap-In

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ESMH160VSN223MQ40T information

United Chemi-Con ESMH160VSN223MQ40T technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con ESMH160VSN223MQ40T.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can - Snap-In
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Series
  • SMH
  • Published
  • 2007
  • Size / Dimension
  • 1.000Dia 25.40mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Termination
  • Snap in
  • Resistance
  • 30mOhm
  • Applications
  • General Purpose
  • Capacitance
  • 22000?F
  • Voltage - Rated DC
  • 16V
  • Lead Pitch
  • 10mm
  • ESR (Equivalent Series Resistance)
  • 30mOhm @ 120Hz
  • Lead Spacing
  • 0.394 10.00mm
  • Lifetime @ Temp
  • 2000 Hrs @ 85°C
  • Leakage Current
  • 3mA
  • Test Frequency
  • 120Hz
  • Polarization
  • Polar
  • Life (Hours)
  • 2000 hours
  • Ripple Current @ Low Frequency
  • 4.26A @ 120Hz
  • Ripple Current @ High Frequency
  • 4.6008A @ 100kHz
  • Dissipation Factor
  • 0.4 %
  • Diameter
  • 25.4mm
  • Height
  • 40mm
  • Height Seated (Max)
  • 1.575 40.00mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for United Chemi-Con ESMH160VSN223MQ40T.

Datasheets:

ESMH160VSN223MQ40T Overview


At full charge, the ripple current is 4.6008A @ 100kHz.It is necessary to provide the ESR (Equivalent Series Resistance) of 30mOhm @ 120Hz so that it can fully perform its functions.The ripple current is 4.26A @ 120Hz at the lowest charge.It is recommended to keep the height seated (Max) below 1.575 40.00mm.A 0.4 % dissipation factor is used.The capacitor operates at a voltage of 16V - Rated DC.For high efficiency, the operating temperature should be -40°C~85°C.

ESMH160VSN223MQ40T Features


the ripple current is 4.6008A @ 100kHz.
the ripple current is 4.26A @ 120Hz.
a dissipation factor of 0.4 %
voltage - Rated DC of 16V
an operating temperature of -40°C~85°C


ESMH160VSN223MQ40T Applications


There are a lot of United Chemi-Con
ESMH160VSN223MQ40T applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
