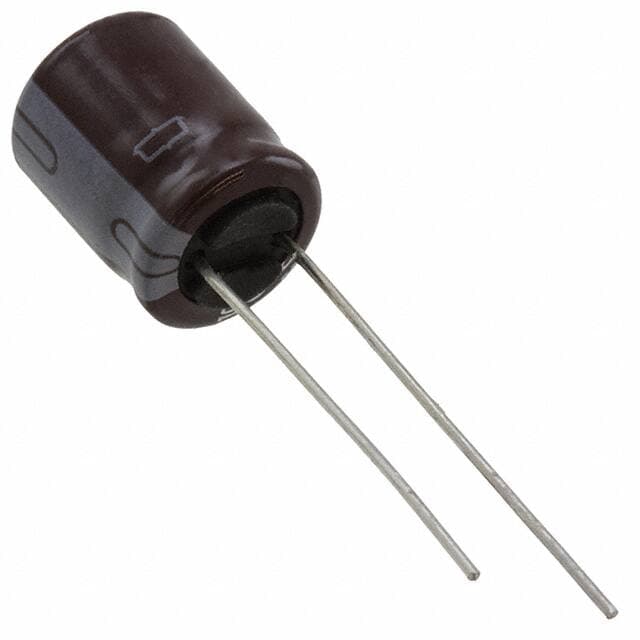

United Chemi-Con EKMQ451ELL4R7MJC5S

Manufacturer No:

EKMQ451ELL4R7MJC5S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

KMQ 4.7?F Capacitor ±20% Bulk Through Hole 32mA 0.394Dia 10.00mm -25°C~105°C Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKMQ451ELL4R7MJC5S information

United Chemi-Con EKMQ451ELL4R7MJC5S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKMQ451ELL4R7MJC5S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Operating Temperature
-25°C~105°C

Packaging
Bulk

Series
KMQ

Published
2011

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

Feature
General Purpose

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Radial

Applications
General Purpose

Capacitance
4.7?F

Voltage - Rated DC
450V

Lead Pitch
5mm

Lead Spacing
0.197 5.00mm

Lifetime @ Temp
2000 Hrs @ 105°C

Ripple Current
32mA

Polarization
Polar

Life (Hours)
2000 hours

Ripple Current @ High Frequency
80mA @ 100kHz

Dissipation Factor
0.24 %

Height Seated (Max)
0.551 14.00mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for United Chemi-Con EKMQ451ELL4R7MJC5S.

Datasheets:

unitedchemicon-ekmq101ell101mj16s-datasheets-3553.pdf

EKMQ451ELL4R7MJC5S Overview

Full charge results in a ripple current of 80mA @ 100kHz.The ripple current at the lowest charge is 32mA @ 120Hz.Keeping the maximum height of the seated person (Max) below 0.551 14.00mm is recommended.Despite its 0.24 % dissipation factor, it still operates.Rated DC voltage is 450V for this capacitor.High efficiency requires an operating temperature of -25°C~105°C.

EKMQ451ELL4R7MJC5S Features

the ripple current is 80mA @ 100kHz.
the ripple current is 32mA @ 120Hz.
a dissipation factor of 0.24 %
voltage - Rated DC of 450V
an operating temperature of -25°C~105°C

EKMQ451ELL4R7MJC5S Applications

There are a lot of United Chemi-Con
EKMQ451ELL4R7MJC5S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
