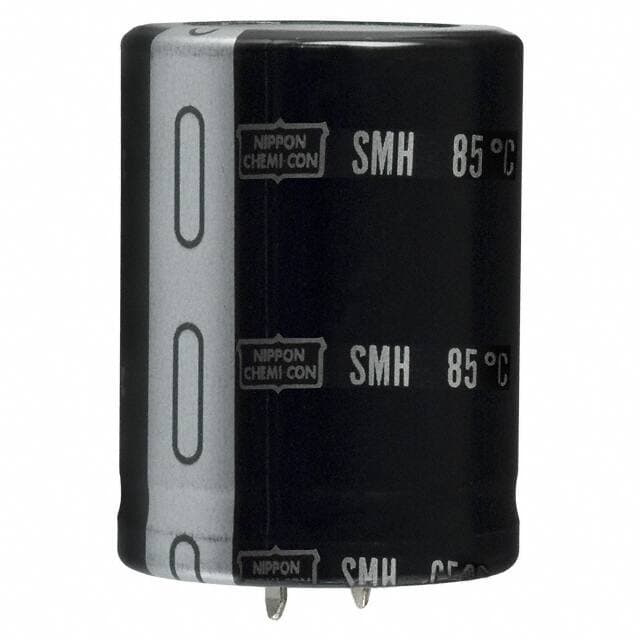

United Chemi-Con ESMH101VSN332MR40T
United Chemi-Con ESMH101VSN332MR40T

United Chemi-Con ESMH101VSN332MR40T

Manufacturer No:

ESMH101VSN332MR40T

Manufacturer:

United Chemi-Con

Package:

Radial, Can - Snap-In

Description:

SMH 3300?F Capacitor ±20% Bulk Through Hole 4.05A 1.181Dia 30.00mm -40°C~85°C Polar 10mm Radial, Can - Snap-In

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ESMH101VSN332MR40T information

United Chemi-Con ESMH101VSN332MR40T technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con ESMH101VSN332MR40T.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can - Snap-In
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Series
  • SMH
  • Published
  • 2007
  • Size / Dimension
  • 1.181Dia 30.00mm
  • Tolerance
  • ±20%
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Termination
  • Snap in
  • Resistance
  • 75mOhm
  • Applications
  • General Purpose
  • Capacitance
  • 3300?F
  • Voltage - Rated DC
  • 100V
  • Lead Pitch
  • 10mm
  • ESR (Equivalent Series Resistance)
  • 75mOhm @ 120Hz
  • Lead Spacing
  • 0.394 10.00mm
  • Lifetime @ Temp
  • 2000 Hrs @ 85°C
  • Ripple Current
  • 4.05A
  • Polarization
  • Polar
  • Ripple Current @ Low Frequency
  • 4.05A @ 120Hz
  • Ripple Current @ High Frequency
  • 4.86A @ 100kHz
  • Diameter
  • 30mm
  • Height
  • 40mm
  • Height Seated (Max)
  • 1.575 40.00mm
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for United Chemi-Con ESMH101VSN332MR40T.

Datasheets:

ESMH101VSN332MR40T Overview


As far as the ripple current is concerned, it is 4.86A @ 100kHz at full charge.The ESR (Equivalent Series Resistance) of 75mOhm @ 120Hz needs to be provided to fully play its function.As far as the ripple current is concerned, it is 4.05A @ 120Hz at the lowest charge.The height seated (Max) should be kept below 1.575 40.00mm.This capacitor operates from a voltage - Rated DC of 100V.The operating temperature should be maintained at -40°C~85°C for high efficiency.

ESMH101VSN332MR40T Features


the ripple current is 4.86A @ 100kHz.
the ripple current is 4.05A @ 120Hz.
voltage - Rated DC of 100V
an operating temperature of -40°C~85°C


ESMH101VSN332MR40T Applications


There are a lot of United Chemi-Con
ESMH101VSN332MR40T applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
