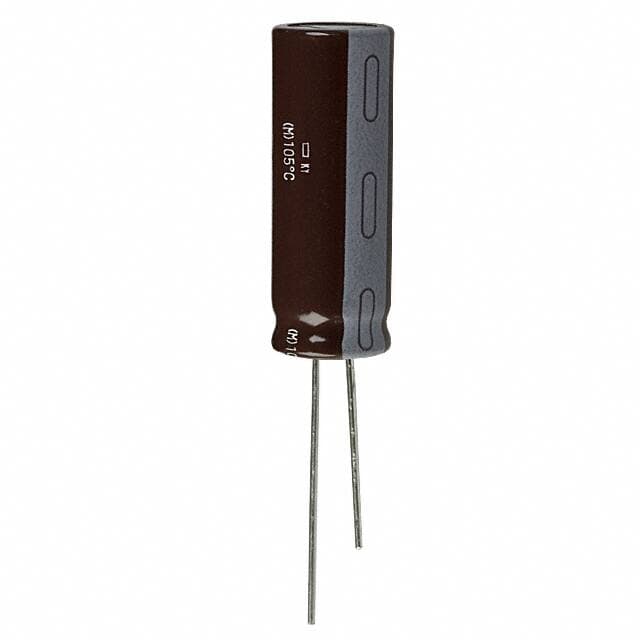

United Chemi-Con EKY-160ELL332MK35S

Manufacturer No:

EKY-160ELL332MK35S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

KY 3300?F Capacitor ±20% Bulk Through Hole 2.88A 0.492Dia 12.50mm -40°C~105°C Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKY-160ELL332MK35S information

United Chemi-Con EKY-160ELL332MK35S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKY-160ELL332MK35S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Number of Pins
35

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
KY

Published
2010

Size / Dimension
0.492Dia 12.50mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Radial

Applications
General Purpose

Capacitance
3300?F

Voltage - Rated DC
16V

Lead Pitch
5mm

ESR (Equivalent Series Resistance)
20mOhm

Lead Spacing
0.197 5.00mm

Lead Diameter
600 ?m

Voltage
16V

Lifetime @ Temp
10000 Hrs @ 105°C

Ripple Current
2.88A

Polarization
Polar

Life (Hours)
10000 hours

Impedance
20mOhm

Ripple Current @ Low Frequency
2.16A @ 120Hz

Ripple Current @ High Frequency
2.88A @ 100kHz

Diameter
12.5mm

Height Seated (Max)
1.378 35.00mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for United Chemi-Con EKY-160ELL332MK35S.

Datasheets:

unitedchemicon-eky500ell102mk40s-datasheets-0989.pdf

EKY-160ELL332MK35S Overview

As far as the ripple current is concerned, it is 2.88A @ 100kHz at full charge.The ESR (Equivalent Series Resistance) of 20mOhm needs to be provided to fully play its function.As far as the ripple current is concerned, it is 2.16A @ 120Hz at the lowest charge.The height seated (Max) should be kept below 1.378 35.00mm.This capacitor operates from a voltage - Rated DC of 16V.The operating temperature should be maintained at -40°C~105°C for high efficiency.

EKY-160ELL332MK35S Features

the ripple current is 2.88A @ 100kHz.
the ripple current is 2.16A @ 120Hz.
voltage - Rated DC of 16V
an operating temperature of -40°C~105°C

EKY-160ELL332MK35S Applications

There are a lot of United Chemi-Con
EKY-160ELL332MK35S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
