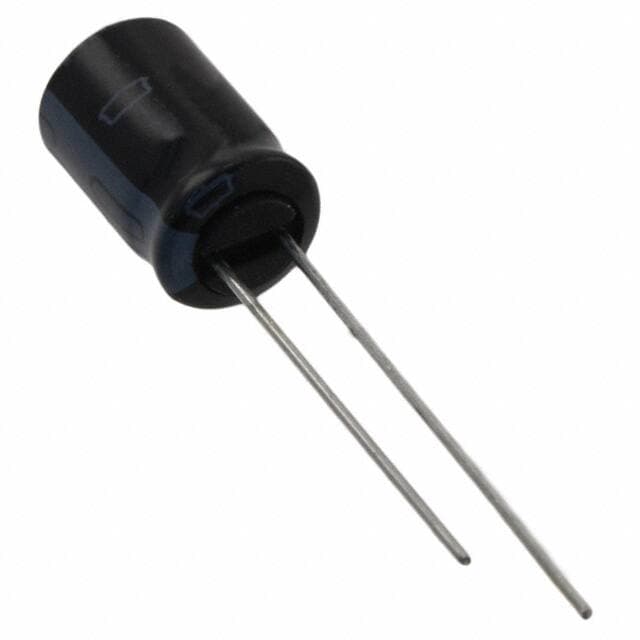

United Chemi-Con ESMG350ELL221MHB5D

Manufacturer No:

ESMG350ELL221MHB5D

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

SMG 220?F Capacitor ±20% Bulk Through Hole 385mA 0.315Dia 8.00mm -40°C~85°C Polar 3.5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ESMG350ELL221MHB5D information

United Chemi-Con ESMG350ELL221MHB5D technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con ESMG350ELL221MHB5D.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Number of Pins
2

Dielectric Material
Aluminium

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
SMG

Published
2001

Size / Dimension
0.315Dia 8.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Radial

Applications
General Purpose

Capacitance
220?F

Voltage - Rated DC
35V

Lead Pitch
3.5mm

Lead Spacing
0.138 3.50mm

Lifetime @ Temp
2000 Hrs @ 85°C

Ripple Current
385mA

Polarization
Polar

Ripple Current @ Low Frequency
385mA @ 120Hz

Ripple Current @ High Frequency
577.5mA @ 100kHz

Diameter
8mm

Height
11.5mm

Height Seated (Max)
0.512 13.00mm

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for United Chemi-Con ESMG350ELL221MHB5D.

Datasheets:

unitedchemicon-esmg500ell100me11d-datasheets-2322.pdf

ESMG350ELL221MHB5D Overview

A full charge has a ripple current of 577.5mA @ 100kHz volts.In the lowest charge, the ripple current is 385mA @ 120Hz.Sitting height should not exceed 0.512 13.00mm (Max).A voltage of 35V DC operates this capacitor.Maintaining -40°C~85°C as the operating temperature will maximize efficiency.

ESMG350ELL221MHB5D Features

the ripple current is 577.5mA @ 100kHz.
the ripple current is 385mA @ 120Hz.
voltage - Rated DC of 35V
an operating temperature of -40°C~85°C

ESMG350ELL221MHB5D Applications

There are a lot of United Chemi-Con
ESMG350ELL221MHB5D applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
