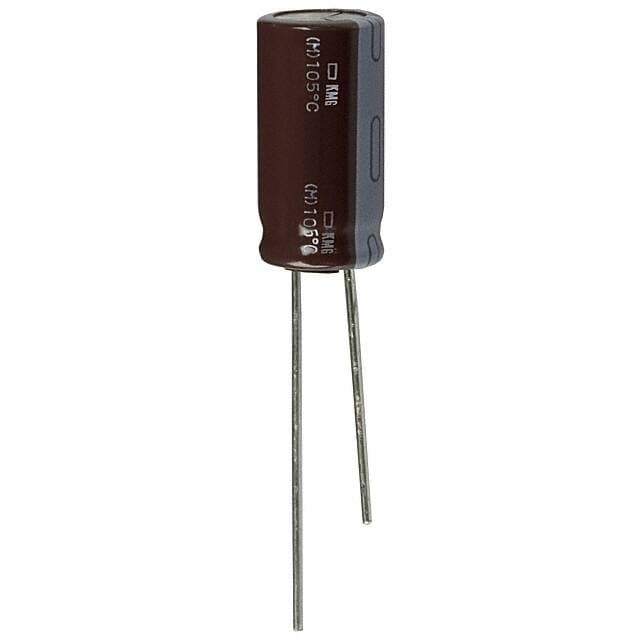

United Chemi-Con EKMG630ELL331MJ20S

Manufacturer No:

EKMG630ELL331MJ20S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

KMG 330?F Capacitor ±20% Bulk Through Hole 510mA 0.394Dia 10.00mm -55°C~105°C Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKMG630ELL331MJ20S information

United Chemi-Con EKMG630ELL331MJ20S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKMG630ELL331MJ20S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Number of Pins
2

Dielectric Material
Aluminium

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
KMG

Published
2010

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Radial

Applications
General Purpose

Capacitance
330?F

Voltage - Rated DC
63V

Lead Pitch
5mm

Lead Spacing
0.197 5.00mm

Lead Diameter
600 ?m

Lifetime @ Temp
1000 Hrs @ 105°C

Ripple Current
510mA

Polarization
Polar

Ripple Current @ Low Frequency
510mA @ 120Hz

Ripple Current @ High Frequency
765mA @ 100kHz

Diameter
10mm

Height
20mm

Height Seated (Max)
0.846 21.50mm

REACH SVHC
Unknown

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for United Chemi-Con EKMG630ELL331MJ20S.

Datasheets:

unitedchemicon-ekmg500ell221mjc5s-datasheets-5821.pdf

EKMG630ELL331MJ20S Overview

At full charge, the ripple current is 765mA @ 100kHz.The ripple current is 510mA @ 120Hz at the lowest charge.It is recommended to keep the height seated (Max) below 0.846 21.50mm.The capacitor operates at a voltage of 63V - Rated DC.For high efficiency, the operating temperature should be -55°C~105°C.

EKMG630ELL331MJ20S Features

the ripple current is 765mA @ 100kHz.
the ripple current is 510mA @ 120Hz.
voltage - Rated DC of 63V
an operating temperature of -55°C~105°C

EKMG630ELL331MJ20S Applications

There are a lot of United Chemi-Con
EKMG630ELL331MJ20S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
