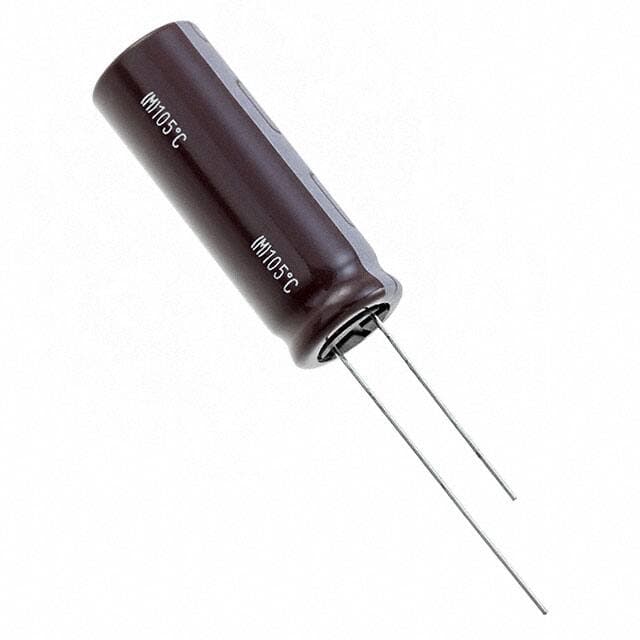

United Chemi-Con EKZN800ELL271MK20S

Manufacturer No:

EKZN800ELL271MK20S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

KZN 270?F Capacitor ±20% Bulk Through Hole 1.75A 0.492Dia 12.50mm -40°C~105°C Polar 5.0038mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKZN800ELL271MK20S information

United Chemi-Con EKZN800ELL271MK20S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKZN800ELL271MK20S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
KZN

Published
2015

Size / Dimension
0.492Dia 12.50mm

Tolerance
±20%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Radial

Applications
General Purpose

Capacitance
270?F

Voltage - Rated DC
80V

Lead Pitch
5.0038mm

Lead Spacing
0.197 5.00mm

Lifetime @ Temp
10000 Hrs @ 105°C

Ripple Current
1.75A

Polarization
Polar

Life (Hours)
10000 hours

Impedance
48mOhm

Ripple Current @ Low Frequency
875mA @ 120Hz

Lead/Base Style
Straight

Diameter
12.5mm

Height
12.5mm

Height Seated (Max)
0.846 21.50mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for United Chemi-Con EKZN800ELL271MK20S.

Datasheets:

unitedchemicon-ekzn101ell221mk25s-datasheets-0785.pdf

EKZN800ELL271MK20S Overview

Full charge should result in a ripple current of 1.75A @ 100kHz.If the charge is low, ripple current is 875mA @ 120Hz.Keep your seated height below 0.846 21.50mm.A voltage of 80V DC is used to operate this capacitor.The maximum efficiency can be achieved by maintaining -40°C~105°C as the operating temperature.

EKZN800ELL271MK20S Features

the ripple current is 1.75A @ 100kHz.
the ripple current is 875mA @ 120Hz.
voltage - Rated DC of 80V
an operating temperature of -40°C~105°C

EKZN800ELL271MK20S Applications

There are a lot of United Chemi-Con
EKZN800ELL271MK20S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
