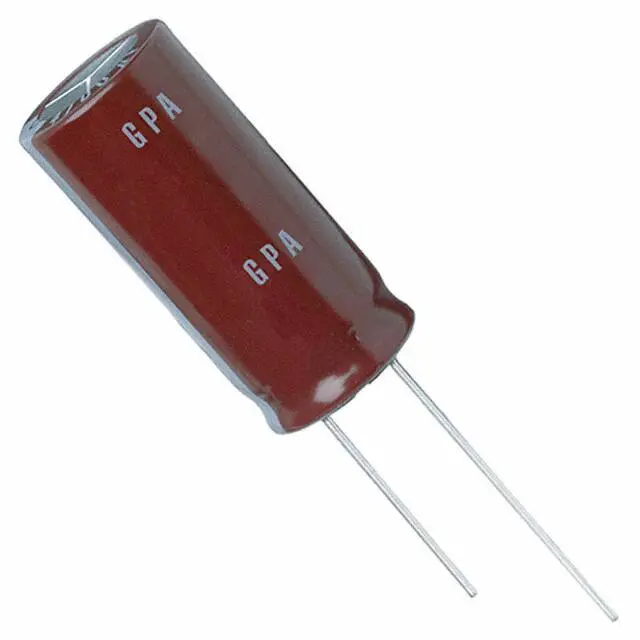

United Chemi-Con EGPA350ELL681MK20S

Manufacturer No:

EGPA350ELL681MK20S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

GPA 680?F Capacitor ±20% Bulk Through Hole 1.82A 0.492Dia 12.50mm -40°C~125°C Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EGPA350ELL681MK20S information

United Chemi-Con EGPA350ELL681MK20S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EGPA350ELL681MK20S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Number of Pins
20

Operating Temperature
-40°C~125°C

Packaging
Bulk

Series
GPA

Published
2012

Size / Dimension
0.492Dia 12.50mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Radial

Applications
Automotive

Capacitance
680?F

Lead Pitch
5mm

ESR (Equivalent Series Resistance)
44mOhm @ 100kHz

Lead Spacing
0.197 5.00mm

Lead Diameter
600 ?m

Voltage
35V

Lifetime @ Temp
3000 Hrs @ 125°C

Leakage Current
4?A

Polarization
Polar

Life (Hours)
3000 hours

Ripple Current @ Low Frequency
1.092A @ 120Hz

Ripple Current @ High Frequency
1.82A @ 100kHz

Diameter
12.5mm

Height Seated (Max)
0.846 21.50mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Ratings
AEC-Q200

Download datasheets and manufacturer documentation for United Chemi-Con EGPA350ELL681MK20S.

Datasheets:

unitedchemicon-egpa500ell102ml25s-datasheets-1411.pdf

EGPA350ELL681MK20S Overview

Full charge results in a ripple current of 1.82A @ 100kHz.44mOhm @ 100kHz must have the ESR (Equivalent Series Resistance) to function properly.The ripple current at the lowest charge is 1.092A @ 120Hz.Keeping the maximum height of the seated person (Max) below 0.846 21.50mm is recommended.High efficiency requires an operating temperature of -40°C~125°C.

EGPA350ELL681MK20S Features

the ripple current is 1.82A @ 100kHz.
the ripple current is 1.092A @ 120Hz.
an operating temperature of -40°C~125°C

EGPA350ELL681MK20S Applications

There are a lot of United Chemi-Con
EGPA350ELL681MK20S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
