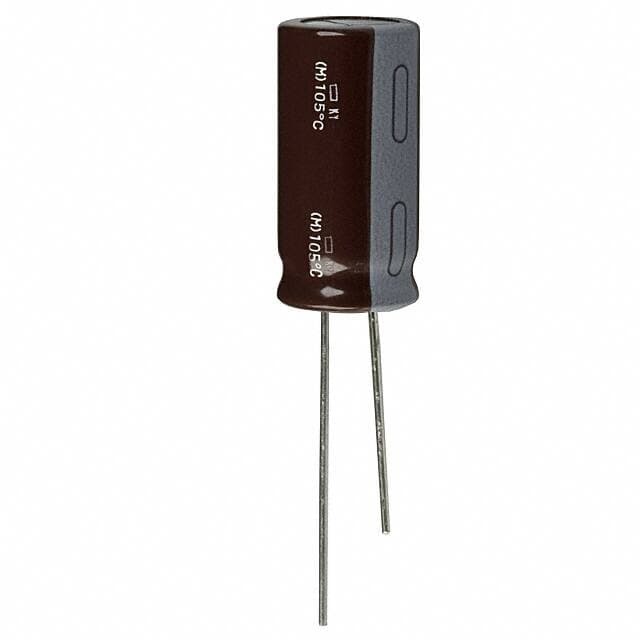

United Chemi-Con EKY-101ELL221MK25S

Manufacturer No:

EKY-101ELL221MK25S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

KY 220?F Capacitor ±20% Bulk Through Hole 1.25A 0.492Dia 12.50mm -40°C~105°C Polar 5.0038mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKY-101ELL221MK25S information

United Chemi-Con EKY-101ELL221MK25S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKY-101ELL221MK25S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
KY

Published
2014

Size / Dimension
0.492Dia 12.50mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Applications
General Purpose

Capacitance
220?F

Voltage - Rated DC
100V

Lead Pitch
5.0038mm

Lead Spacing
0.197 5.00mm

Lifetime @ Temp
10000 Hrs @ 105°C

Ripple Current
1.25A

Polarization
Polar

Life (Hours)
10000 hours

Impedance
47mOhm

Ripple Current @ Low Frequency
625mA @ 120Hz

Height Seated (Max)
1.043 26.50mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for United Chemi-Con EKY-101ELL221MK25S.

Datasheets:

unitedchemicon-eky500ell102mk40s-datasheets-0989.pdf

EKY-101ELL221MK25S Overview

Full charge results in a ripple current of 1.25A @ 100kHz.The ripple current at the lowest charge is 625mA @ 120Hz.Keeping the maximum height of the seated person (Max) below 1.043 26.50mm is recommended.Rated DC voltage is 100V for this capacitor.High efficiency requires an operating temperature of -40°C~105°C.

EKY-101ELL221MK25S Features

the ripple current is 1.25A @ 100kHz.
the ripple current is 625mA @ 120Hz.
voltage - Rated DC of 100V
an operating temperature of -40°C~105°C

EKY-101ELL221MK25S Applications

There are a lot of United Chemi-Con
EKY-101ELL221MK25S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
