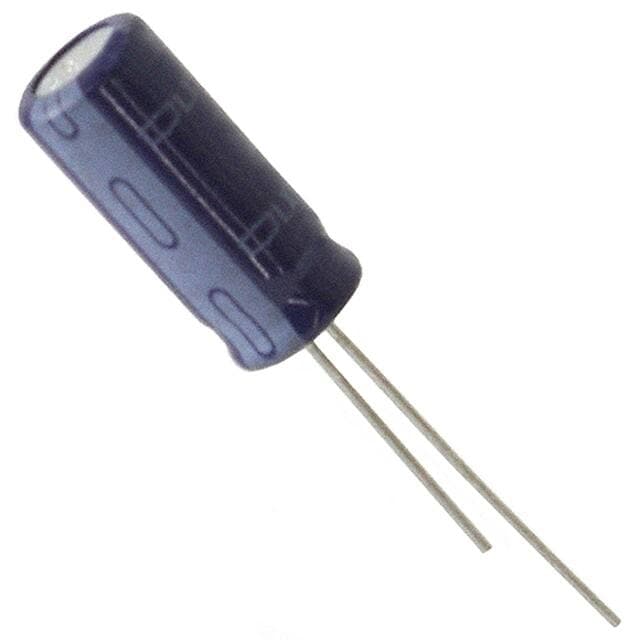

United Chemi-Con ELXZ350ELL152MK35S

Manufacturer No:

ELXZ350ELL152MK35S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

LXZ 1500?F Capacitor ±20% Bulk Through Hole 2.51A 0.492Dia 12.50mm -55°C~105°C Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ELXZ350ELL152MK35S information

United Chemi-Con ELXZ350ELL152MK35S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con ELXZ350ELL152MK35S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Number of Pins
35

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
LXZ

Published
2004

Size / Dimension
0.492Dia 12.50mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Radial

Applications
Automotive

Capacitance
1500?F

Voltage - Rated DC
35V

Lead Pitch
5mm

ESR (Equivalent Series Resistance)
44mOhm

Lead Spacing
0.197 5.00mm

Lead Diameter
600 ?m

Voltage
35V

Lifetime @ Temp
7000 Hrs @ 105°C

Ripple Current
2.51A

Polarization
Polar

Life (Hours)
7000 hours

Impedance
22mOhm

Ripple Current @ Low Frequency
1.506A @ 120Hz

Ripple Current @ High Frequency
2.51A @ 100kHz

Diameter
12.5mm

Height
35mm

Height Seated (Max)
1.437 36.50mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Ratings
AEC-Q200

Download datasheets and manufacturer documentation for United Chemi-Con ELXZ350ELL152MK35S.

Datasheets:

unitedchemicon-elxz350ell392mm40s-datasheets-9114.pdf

ELXZ350ELL152MK35S Overview

In terms of ripple current, it is 2.51A @ 100kHz at full charge.In order for 44mOhm to perform its full function, the ESR (Equivalent Series Resistance) needs to be provided.When the charge is lowest, the ripple current is 1.506A @ 120Hz.Sitting height (Max) should not exceed 1.437 36.50mm.Voltage - Rated DC of 35V is required to operate this capacitor.It is recommended to maintain the operating temperature at -55°C~105°C in order to maximize efficiency.

ELXZ350ELL152MK35S Features

the ripple current is 2.51A @ 100kHz.
the ripple current is 1.506A @ 120Hz.
voltage - Rated DC of 35V
an operating temperature of -55°C~105°C

ELXZ350ELL152MK35S Applications

There are a lot of United Chemi-Con
ELXZ350ELL152MK35S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
