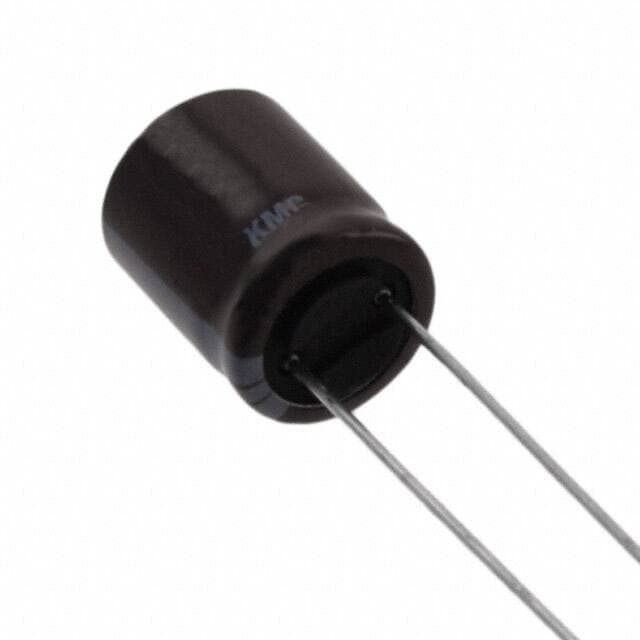

United Chemi-Con EKMG351ELL3R3MJC5S

Manufacturer No:

EKMG351ELL3R3MJC5S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

KMG 3.3?F Capacitor ±20% Bulk Through Hole 38mA 0.394Dia 10.00mm -40°C~105°C Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKMG351ELL3R3MJC5S information

United Chemi-Con EKMG351ELL3R3MJC5S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKMG351ELL3R3MJC5S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Number of Pins
2

Dielectric Material
Aluminium

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
KMG

Published
2010

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Radial

Applications
General Purpose

Capacitance
3.3?F

Voltage - Rated DC
350V

Lead Pitch
5mm

Lead Spacing
0.197 5.00mm

Lead Diameter
600 ?m

Lifetime @ Temp
1000 Hrs @ 105°C

Ripple Current
38mA

Life (Hours)
1000 hours

Ripple Current @ Low Frequency
38mA @ 120Hz

Ripple Current @ High Frequency
95mA @ 100kHz

Diameter
10mm

Height
12.5mm

Height Seated (Max)
0.551 14.00mm

REACH SVHC
Unknown

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for United Chemi-Con EKMG351ELL3R3MJC5S.

Datasheets:

unitedchemicon-ekmg500ell221mjc5s-datasheets-5821.pdf

EKMG351ELL3R3MJC5S Overview

During full charge, the ripple current is 95mA @ 100kHz.When the battery is charged to its lowest level, the ripple current is 38mA @ 120Hz.You should keep the height of the seat (Max) below 0.551 14.00mm.Rated DC voltage of 350V is used to operate this capacitor.If you want high efficiency, you should keep the operating temperature at -40°C~105°C.

EKMG351ELL3R3MJC5S Features

the ripple current is 95mA @ 100kHz.
the ripple current is 38mA @ 120Hz.
voltage - Rated DC of 350V
an operating temperature of -40°C~105°C

EKMG351ELL3R3MJC5S Applications

There are a lot of United Chemi-Con
EKMG351ELL3R3MJC5S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
