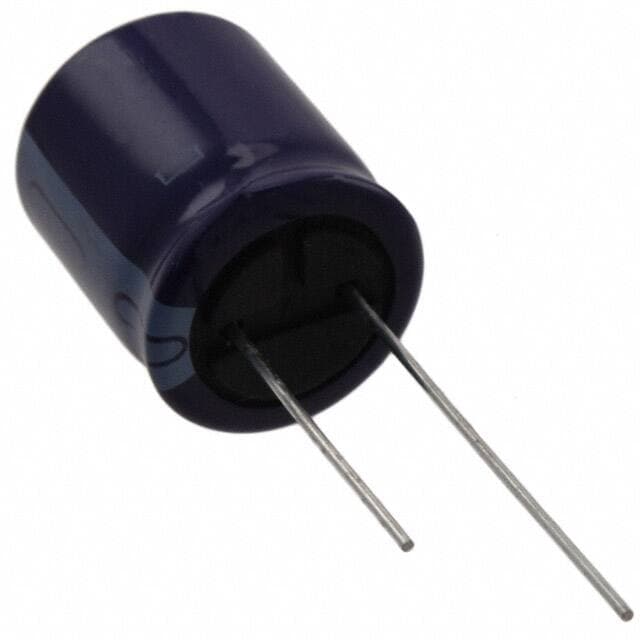

United Chemi-Con ELXZ500ELL122MM25S

Manufacturer No:

ELXZ500ELL122MM25S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

LXZ 1200?F Capacitor ±20% Bulk Through Hole 2.61A 0.709Dia 18.00mm -55°C~105°C Polar 7.493mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ELXZ500ELL122MM25S information

United Chemi-Con ELXZ500ELL122MM25S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con ELXZ500ELL122MM25S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Number of Pins
25

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
LXZ

Published
2004

Size / Dimension
0.709Dia 18.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Radial

Applications
Automotive

Capacitance
1200?F

Voltage - Rated DC
50V

Lead Pitch
7.493mm

ESR (Equivalent Series Resistance)
58mOhm

Lead Spacing
0.295 7.50mm

Lead Diameter
800 ?m

Voltage
50V

Lifetime @ Temp
8000 Hrs @ 105°C

Ripple Current
2.61A

Polarization
Polar

Life (Hours)
8000 hours

Impedance
29mOhm

Ripple Current @ Low Frequency
1.566A @ 120Hz

Ripple Current @ High Frequency
2.61A @ 100kHz

Diameter
18mm

Height
25mm

Height Seated (Max)
1.043 26.50mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Ratings
AEC-Q200

Download datasheets and manufacturer documentation for United Chemi-Con ELXZ500ELL122MM25S.

Datasheets:

unitedchemicon-elxz350ell392mm40s-datasheets-9114.pdf

ELXZ500ELL122MM25S Overview

Full charge should result in a ripple current of 2.61A @ 100kHz.To fully perform its function, 58mOhm needs the equivalent series resistance.If the charge is low, ripple current is 1.566A @ 120Hz.Keep your seated height below 1.043 26.50mm.A voltage of 50V DC is used to operate this capacitor.The maximum efficiency can be achieved by maintaining -55°C~105°C as the operating temperature.

ELXZ500ELL122MM25S Features

the ripple current is 2.61A @ 100kHz.
the ripple current is 1.566A @ 120Hz.
voltage - Rated DC of 50V
an operating temperature of -55°C~105°C

ELXZ500ELL122MM25S Applications

There are a lot of United Chemi-Con
ELXZ500ELL122MM25S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
