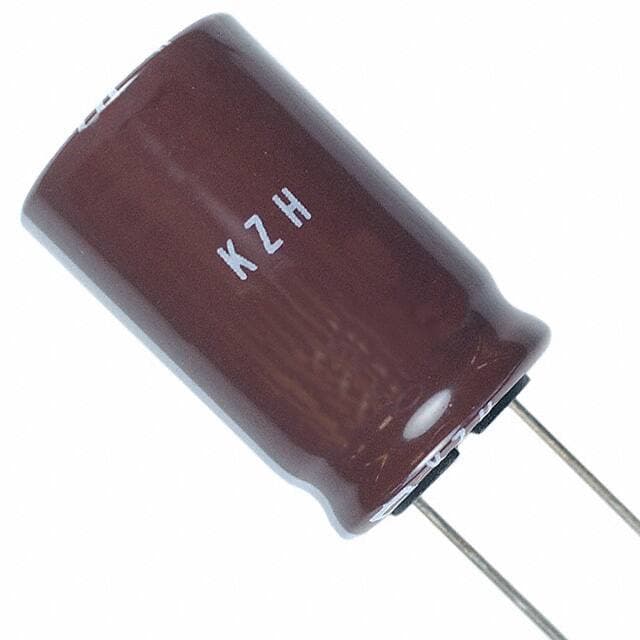

United Chemi-Con EKZH350ETD470ME11D

Manufacturer No:

EKZH350ETD470ME11D

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

KZH 47?F Capacitor ±20% Tape & Box (TB) Through Hole 330mA 0.197Dia 5.00mm -40°C~105°C Polar 2.0066mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKZH350ETD470ME11D information

United Chemi-Con EKZH350ETD470ME11D technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKZH350ETD470ME11D.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Operating Temperature
-40°C~105°C

Packaging
Tape & Box (TB)

Series
KZH

Published
2016

Size / Dimension
0.197Dia 5.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Radial

Applications
General Purpose

Capacitance
47?F

Voltage - Rated DC
35V

Lead Pitch
2.0066mm

Lead Spacing
0.079 2.00mm

Lifetime @ Temp
5000 Hrs @ 105°C

Ripple Current
330mA

Polarization
Polar

Life (Hours)
5000 hours

Impedance
240mOhm

Ripple Current @ High Frequency
330mA @ 100kHz

Height Seated (Max)
0.492 12.50mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for United Chemi-Con EKZH350ETD470ME11D.

Datasheets:

unitedchemicon-ekzh350ell221mhb5d-datasheets-6085.pdf

EKZH350ETD470ME11D Overview

During full charge, the ripple current is 330mA @ 100kHz.When the battery is charged to its lowest level, the ripple current is 132mA @ 120Hz.You should keep the height of the seat (Max) below 0.492 12.50mm.Rated DC voltage of 35V is used to operate this capacitor.If you want high efficiency, you should keep the operating temperature at -40°C~105°C.

EKZH350ETD470ME11D Features

the ripple current is 330mA @ 100kHz.
the ripple current is 132mA @ 120Hz.
voltage - Rated DC of 35V
an operating temperature of -40°C~105°C

EKZH350ETD470ME11D Applications

There are a lot of United Chemi-Con
EKZH350ETD470ME11D applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
