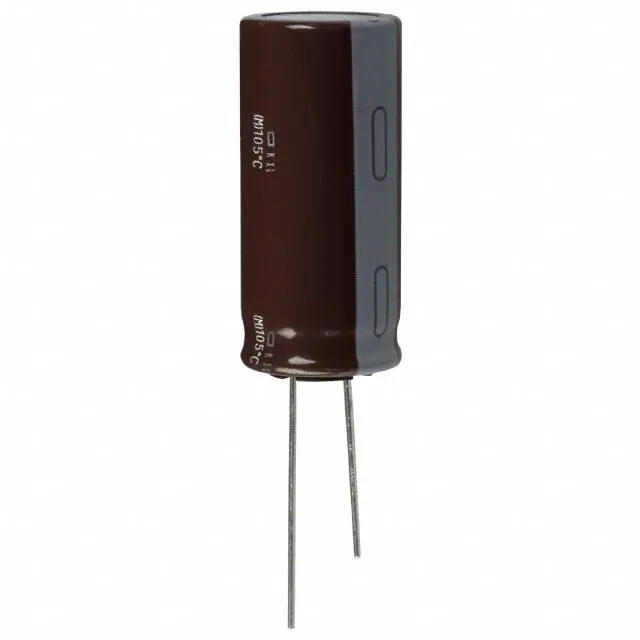

United Chemi-Con EKXG451ELL101MM40S
United Chemi-Con EKXG451ELL101MM40S

United Chemi-Con EKXG451ELL101MM40S

Manufacturer No:

EKXG451ELL101MM40S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

KXG 100?F Capacitor ±20% Bulk Through Hole 800mA 0.709Dia 18.00mm -25°C~105°C Polar 7.5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKXG451ELL101MM40S information

United Chemi-Con EKXG451ELL101MM40S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKXG451ELL101MM40S.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Operating Temperature
  • -25°C~105°C
  • Packaging
  • Bulk
  • Series
  • KXG
  • Published
  • 2010
  • Size / Dimension
  • 0.709Dia 18.00mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Radial
  • Applications
  • General Purpose
  • Capacitance
  • 100?F
  • Voltage - Rated DC
  • 450V
  • Lead Pitch
  • 7.5mm
  • Lead Spacing
  • 0.295 7.50mm
  • Lifetime @ Temp
  • 10000 Hrs @ 105°C
  • Ripple Current
  • 800mA
  • Polarization
  • Polar
  • Life (Hours)
  • 10000 hours
  • Ripple Current @ Low Frequency
  • 800mA @ 120Hz
  • Height Seated (Max)
  • 1.575 40.00mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for United Chemi-Con EKXG451ELL101MM40S.

Datasheets:

EKXG451ELL101MM40S Overview


Ripple current at full charge is 1.8A @ 100kHz.It is 800mA @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 1.575 40.00mm.Voltage - Rated DC - is 450V.It is recommended that the operating temperature be kept at -25°C~105°C to achieve high efficiency.

EKXG451ELL101MM40S Features


the ripple current is 1.8A @ 100kHz.
the ripple current is 800mA @ 120Hz.
voltage - Rated DC of 450V
an operating temperature of -25°C~105°C


EKXG451ELL101MM40S Applications


There are a lot of United Chemi-Con
EKXG451ELL101MM40S applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
