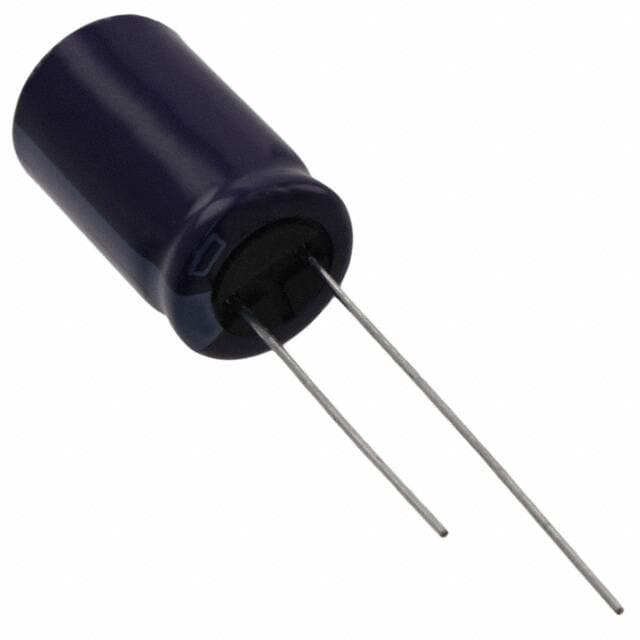

United Chemi-Con ELXZ500ELL561MK25S

Manufacturer No:

ELXZ500ELL561MK25S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

LXZ 560?F Capacitor ±20% Bulk Through Hole 1.84A 0.492Dia 12.50mm -55°C~105°C Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ELXZ500ELL561MK25S information

United Chemi-Con ELXZ500ELL561MK25S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con ELXZ500ELL561MK25S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Number of Pins
25

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
LXZ

Published
2004

Size / Dimension
0.492Dia 12.50mm

Tolerance
±20%

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Radial

Applications
Automotive

Capacitance
560?F

Voltage - Rated DC
50V

Lead Pitch
5mm

ESR (Equivalent Series Resistance)
88mOhm

Lead Spacing
0.197 5.00mm

Lead Diameter
600 ?m

Voltage
50V

Lifetime @ Temp
7000 Hrs @ 105°C

Leakage Current
3?A

Polarization
Polar

Life (Hours)
7000 hours

Impedance
44mOhm

Ripple Current @ Low Frequency
920mA @ 120Hz

Ripple Current @ High Frequency
1.84A @ 100kHz

Diameter
12.5mm

Height
25mm

Height Seated (Max)
1.043 26.50mm

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Ratings
AEC-Q200

Download datasheets and manufacturer documentation for United Chemi-Con ELXZ500ELL561MK25S.

Datasheets:

unitedchemicon-elxz350ell392mm40s-datasheets-9114.pdf

ELXZ500ELL561MK25S Overview

Full charge should result in a ripple current of 1.84A @ 100kHz.To fully perform its function, 88mOhm needs the equivalent series resistance.If the charge is low, ripple current is 920mA @ 120Hz.Keep your seated height below 1.043 26.50mm.A voltage of 50V DC is used to operate this capacitor.The maximum efficiency can be achieved by maintaining -55°C~105°C as the operating temperature.

ELXZ500ELL561MK25S Features

the ripple current is 1.84A @ 100kHz.
the ripple current is 920mA @ 120Hz.
voltage - Rated DC of 50V
an operating temperature of -55°C~105°C

ELXZ500ELL561MK25S Applications

There are a lot of United Chemi-Con
ELXZ500ELL561MK25S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
