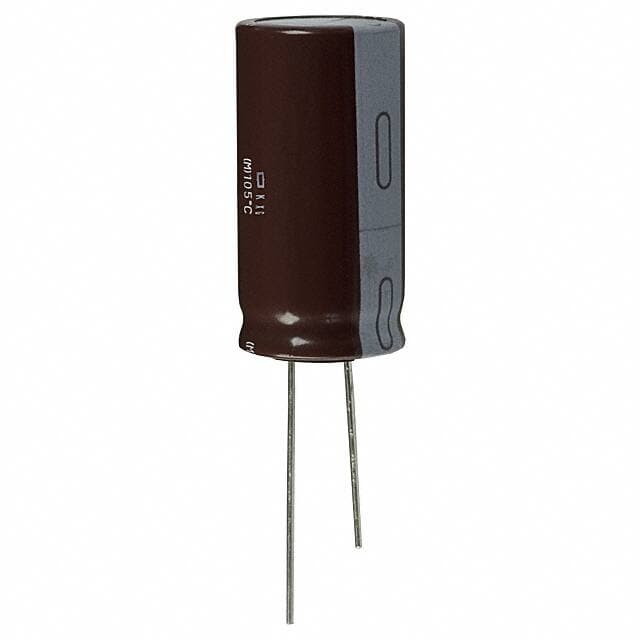

United Chemi-Con EKXG201ELL331MMP1S

Manufacturer No:

EKXG201ELL331MMP1S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

KXG 330?F Capacitor ±20% Bulk Through Hole 1.43A 0.709Dia 18.00mm -40°C~105°C Polar 7.5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKXG201ELL331MMP1S information

United Chemi-Con EKXG201ELL331MMP1S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKXG201ELL331MMP1S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
KXG

Published
2004

Size / Dimension
0.709Dia 18.00mm

Tolerance
±20%

Feature
General Purpose

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Radial

Applications
General Purpose

Capacitance
330?F

Voltage - Rated DC
200V

Lead Pitch
7.5mm

Lead Spacing
0.295 7.50mm

Lifetime @ Temp
10000 Hrs @ 105°C

Ripple Current
1.43A

Polarization
Polar

Life (Hours)
10000 hours

Ripple Current @ High Frequency
3.2175A @ 100kHz

Diameter
18mm

Height
35.5mm

Height Seated (Max)
1.398 35.50mm

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for United Chemi-Con EKXG201ELL331MMP1S.

Datasheets:

unitedchemicon-ekxg251ell470mk20s-datasheets-0512.pdf

EKXG201ELL331MMP1S Overview

Full charge should result in a ripple current of 3.2175A @ 100kHz.If the charge is low, ripple current is 1.43A @ 120Hz.Keep your seated height below 1.398 35.50mm.A voltage of 200V DC is used to operate this capacitor.The maximum efficiency can be achieved by maintaining -40°C~105°C as the operating temperature.

EKXG201ELL331MMP1S Features

the ripple current is 3.2175A @ 100kHz.
the ripple current is 1.43A @ 120Hz.
voltage - Rated DC of 200V
an operating temperature of -40°C~105°C

EKXG201ELL331MMP1S Applications

There are a lot of United Chemi-Con
EKXG201ELL331MMP1S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
