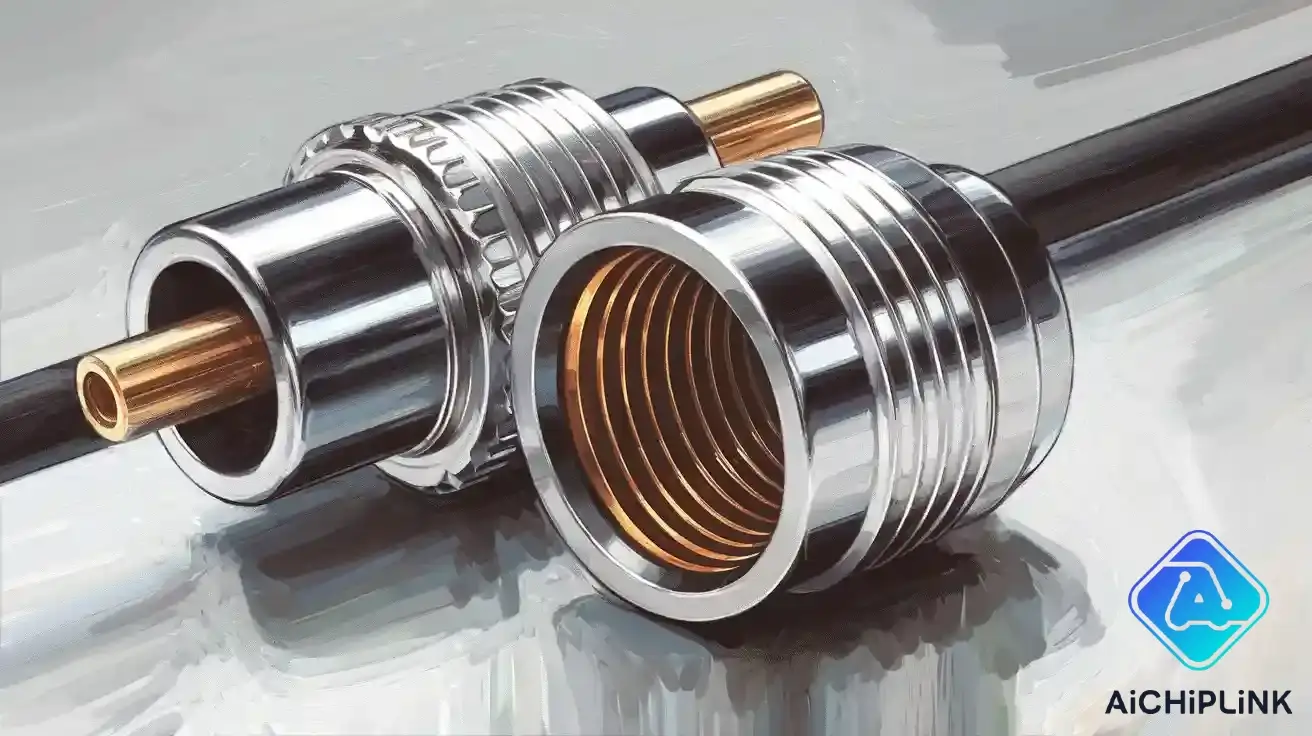

What is an SMA RF Connector?

You use an SMA RF connector to join devices for radio frequency jobs. It works well for high-frequency uses. This connector is small and has a screw-type part. The screw helps keep the connection safe and steady. The sma connector is tiny, so it fits in small places. In rf and microwave systems, sma connectors help send signals without problems.

Key Takeaways

• SMA RF connectors work well for high-frequency uses. They can handle signals up to 18 GHz. They do this with very little signal loss.

• The screw-type design keeps SMA connectors stable. This makes the connection safe and strong for many devices.

• Pick the right SMA connector type, male or female. This helps your devices work together and stops signal problems.

• It is important to install and care for SMA connectors the right way. Always keep them clean and handle them with care.

• SMA connectors are used in telecom, medical devices, and RF modules. They give strong connections in small spaces.

SMA RF Connector Features

Design

The sma rf connector is very small and built with care. Its tiny size lets it fit where big connectors cannot go. It is made from strong materials, so it lasts a long time and works well. Here is a table that lists the main parts of the sma connector and what they do:

Component	Function	Material Used
Outer Shell	Gives support, shields from signals, and grounds the connector.	Brass or stainless steel
Center Contact	Moves the RF signal and keeps the right impedance.	Brass or beryllium copper
Dielectric Material	Stops short circuits and sets the impedance.	PTFE (Teflon)

Because the sma connector is so small, it is great for high-frequency jobs. You can see the main benefits in this table:

Benefit	Description
High Frequency	SMA connectors work up to 18 GHz, so they are good for high-frequency uses.
Small Size	Their tiny size helps make devices smaller.
Stable Connections	They give steady and strong connections, which is important for microwaves.

This connector fits into small devices but still works really well for rf. That is why many radio frequency systems use the sma rf connector.

Electrical Specs

The sma rf connector has important features that make it good for high-frequency work. It has a standard impedance of 50 ohms, which matches most rf systems. It can handle signals from DC up to 18 GHz, so it works for many things. The sma connector also has low insertion loss, so you do not lose much signal. Here are the main specs you should know:

Specification	Value
Impedance	50 Ω
Maximum Frequency	DC to 18 GHz
RF Leakage	-90 dB @ 2-3 GHz
Insulation Resistance	5000 MΩ min
Contact Resistance	Center: 3.0 mΩ max, Outer: 2.0 mΩ max
Insertion Loss	.04 dB max x W f GHz (Straight), .06 dB max x W f GHz (Right Angle)

Sma connectors keep the signal strong, even at high frequencies. When you compare them to other coaxial rf connectors, sma connectors can handle higher frequencies and keep the signal clear. Here is a table to compare:

Connector Type	Frequency Handling	Characteristics
SMA	Up to 26.5 GHz	Small, secure, and keeps the signal strong even if it shakes
BNC	Typically below 4 GHz	Works for lower frequencies, but loses signal above 4 GHz
N-Type	Up to 18 GHz	Bigger, handles more power, and is good for outside use

The sma rf connector is one of the best for high-frequency and microwave jobs. You can count on its specs for great rf performance and little signal loss.

Coupling Mechanism

The sma connector uses a screw to connect. You twist it to lock it in place. This screw design makes the connection safe and steady. Here are the main points about how it connects:

• The sma connector uses a screw to connect.

• This makes the connection strong and safe.

• It helps keep the signal clear, even if things shake.

This way of connecting stops the cable from coming loose by accident. The sma rf connector stays connected, even if the equipment moves. But there are good and bad things about this screw design:

Advantages	Disadvantages
Small and light	Not as tough as some other connectors
Works up to 18 GHz	Not good if you need to connect and disconnect a lot

This connector is best for places where you do not need to unplug it often. The screw helps keep the signal strong and the connection steady, but it is not great for quick changes.

SMA Types

Male and Female

There are two main types of sma connectors. One is male, and the other is female. The type matters when you connect cables and devices. Look at this table to see how they are different:

Connector Type	Center Component	Thread Type
SMA Male	Center Pin	Internal
SMA Female	Center Sleeve	External

The sma male connector has a pin in the middle. Its threads are inside. The sma female connector has a sleeve in the middle. Its threads are outside. You need to match the connector type to your device or antenna. If you use the wrong type, they will not fit together. Sometimes, you can use an adapter to join different types. For example, you can connect an sma male to an rp-sma female. Try not to use too many adapters. Each adapter can make the signal a little weaker.

• The sma or rp-sma connector type must match your device and antenna.

• Adapters can join different types, but too many can lower the signal.

Reverse Polarity (RP-SMA)

You might see rp-sma connectors in wireless systems. The reverse polarity design helps keep devices safe. It makes sure only the right devices connect together. This design helps your wireless systems work well and stops damage. You will find rp-sma connectors in Wi-Fi routers, wireless access points, and FPV drones.

• Wi-Fi routers

• Wireless access points

• FPV drones

Mounting Options

There are different ways to mount sma connectors. Each way changes how you install the connector and how it works. The most common types are panel-mount, PCB-mount, and cable-mount. Panel-mount connectors go on the outside of a device. PCB-mount connectors attach to a circuit board. Cable-mount connectors go on the end of a cable.

• The mounting type changes stability, impedance matching, and signal quality.

• PCB-mount connectors can fit different board thicknesses for better stability.

• The mounting type you choose affects how the rf signal moves in your device.

Tip: Pick the mounting option that fits your device and keeps the rf signal strong.

SMA Connector Applications

Telecom

You see the sma connector in lots of telecom devices. It helps connect antennas and cables for high-frequency signals. You find these connectors in GSM and CDMA equipment. They are also used in radio boards and Wi-Fi antennas. The sma connector works well in low-power UHF systems. You use it in RF amplifiers, isolators, splitters, and couplers. These uses help keep the signal strong and lower loss. The screw-type design gives a steady connection, which is important for telecom work.

Common telecom applications:

• GSM and CDMA devices

• Radio boards

• RF amplifiers

• RF isolators

• Power splitters

• Directional couplers

• Wi-Fi antennas

• Low-power UHF systems

Tip: Using sma connectors in telecom means less signal loss and better quality.

Medical Devices

You find sma connectors in medical devices that need exact RF signals. These connectors help send signals with little loss, which is important for patient monitors and diagnostic tools. The sma connector fits into small spaces, so devices can be compact. You use sma connectors in wireless sensors and imaging systems. The strong screw keeps the connection safe, even if you move the device.

Medical Device Type	Benefit of SMA Connector
Wireless sensors	Small size, steady signal
Diagnostic tools	Low loss, reliable
Imaging systems	Supports high frequencies

RF Modules

You use sma rf connectors in many RF modules. These connectors are very reliable because the screw keeps them tight. You get low loss, even at microwave frequencies. The sma connector is small and fits into lab setups and RF systems. You find a standard interface, so sma connectors work with many RF and wireless devices. The screw-on design makes it easy to install. You do not need special tools. The sma connector helps build tiny devices and lets you mix different technologies for complex solutions.

Benefits of using sma connectors in RF modules:

• High reliability and steady performance

• Very little signal loss

• Small size for tiny devices

• Easy to use with other technologies

• Standard interface for many uses

Note: The sma connector helps make small and smart RF modules, so it is a top pick for modern designs.

SMA vs Other RF Connectors

RP-SMA

RP-SMA connectors are common in wireless networks. RP-SMA means Reverse Polarity SMA. It looks almost like a regular SMA connector. The center pin and sleeve switch places in RP-SMA. RP-SMA stops people from using the wrong antennas. Many Wi-Fi routers use RP-SMA for safety. Access points also use RP-SMA for compatibility. Always check the center pin before you connect. If you mix up SMA and RP-SMA, they will not connect right. You might lose signal if you use the wrong type.

Tip: Make sure your connector matches your device. RP-SMA and SMA do not fit together unless you use an adapter.

SMB, SMC

SMA connectors are different from SMB and SMC connectors. Each connector has its own design and use. SMA connectors have threads for a tight connection. SMB and SMC connectors use snap-on or threads. Snap-on connectors are faster to connect. They may not be as secure as SMA connectors. SMB and SMC are used in small gadgets and medical tools. SMA connectors are better for high-frequency jobs. They work well for precise tasks.

Here is a table that shows the main differences:

Feature	SMA Connectors	SMC Connectors
Coupling Mechanism	Threaded coupling for secure connection	Snap-on or threaded connection
Frequency Range	Up to 18 GHz	Up to 10 GHz
Size	Slightly larger and bulkier	Smaller and more compact
Application Suitability	High-frequency and precision applications	Space-constrained devices like handheld devices
Connection Security	More secure due to threaded design	Snap-on version connects faster but less secure
Typical Use Cases	Wireless communications, test equipment, radar	Compact devices, medical equipment

Pick SMA connectors for high-frequency signals. Choose SMB or SMC for quick connections in small spaces. SMA connectors give better signal quality and less loss.

Adapter Needs

You sometimes need adapters to join SMA to other connectors. This happens when you use different devices or systems. Adapters help match impedance or connect different types. They also help fit connectors in tight spaces. For example, you may need an adapter for SMA male to BNC female. Using the wrong adapter can cause signal loss.

Here is a table that shows when you need adapters:

Scenario	Description
Impedance Matching	Custom adapters are needed for special impedance, like 75Ω, to stop reflections.
Hybrid Connectors	Adapters join different connector types, like SMA male to BNC female, to keep the signal strong.
Size Constraints	Small devices, like UAVs or implants, need custom adapters for size and weight.

Note: Try to use as few adapters as you can. Each adapter can lower your signal strength.

Check all connector types and adapter needs before you build your RF system. This helps keep your signal strong and avoids extra loss.

Choosing an SMA Connector

Selection Criteria

When you pick an sma rf connector, you should think about a few key things. These things help your rf system work its best. You want to keep the signal strong and avoid problems. Here are some things to look for:

• Frequency range: The sma connector must work with your device’s frequency.

• Impedance: Most sma connectors are 50 ohms. Match this to your system to lower signal loss.

• Power handling needs: Make sure the connector can handle the power your device uses.

• Mechanical properties: Look for connectors that are tough and keep out water and dust.

• Electrical properties: Check impedance, frequency range, VSWR, and insulation resistance.

If you pick the right sma connector, your connections will be strong. You will have less signal loss. This makes your rf system work better.

Compatibility

You need to make sure your sma connector fits your device and cable. The connector’s gender is important. SMA male connectors have a pin. Female connectors have a sleeve. You must match these types so they fit together. Some devices use reverse polarity sma connectors. Always check the center pin before you connect.

Use this table to help you check compatibility:

Device Type	Connector Needed	Notes
Wi-Fi Router	RP-SMA Female	Check for reverse polarity
RF Module	SMA Male or Female	Match gender and impedance
Test Equipment	SMA Male	Confirm frequency range

Try not to use too many adapters. Each adapter can make the signal weaker. Always check the connector type before you put it in.

Installation Tips

You want your sma connector to last and work well. Handle it gently and keep it clean. Dirt or dust can hurt the signal. Tighten the connector by hand or use a torque wrench if needed. Do not make it too tight, or you could break it. After you put in the sma connector, test it to make sure it works. Testing helps you find problems early and keeps your rf signal strong.

Tip: Always follow the manufacturer’s steps for installation. Clean connectors and tight connections help stop signal loss and keep your system working well. ?️

You now know that an sma rf connector helps connect rf devices. It gives a strong and steady connection. The sma connector works with high frequencies. It is tough and lasts a long time. You can install it easily. Here are some main advantages:

Feature/Advantage	Description
High Frequency Range	Handles signals up to 18 GHz for many uses.
Durability and Reliability	Strong build keeps connections steady and lowers signal loss.
Compact Size	Fits in small spaces, good for portable devices.
Excellent Impedance Matching	Keeps signals clear with little loss.
Easy Installation	Threaded design makes setup easy.
Versatile Applications	Works in telecom, military, and test gear.

If you know sma types and pick the right connector, your system works better and lasts longer. Always match your connector to your device for the best results.
