An ac fan motor is a machine that changes electricity into spinning motion. This spinning helps move the fan blades. You can find these motors in many air conditioning systems. They are in condenser units and cooling towers. When your air conditioner works well, the ac fan motor helps keep air moving. It also helps keep the temperature nice at home or work.

Key Takeaways

• An AC fan motor changes electricity into movement. It helps move air around. This keeps rooms cool and comfortable.

• Cleaning and checking your AC fan motor often is important. It helps the motor last longer. It also saves energy.

• Watch for signs that your motor is not working well. Strange sounds or weak air can mean trouble. Fix problems early to save money.

• Pick a variable-speed motor for better energy savings. It is quieter and uses less power than single-speed motors.

• Be safe when you change an AC fan motor. Ask an expert if you are not sure. This helps you avoid danger.

AC Fan Motor

What Is an AC Fan Motor

You might wonder what makes your air conditioner blow cool air. The answer is the ac fan motor. This small but powerful device turns electricity into spinning motion. When the motor spins, it moves the fan blades. This action pushes air through your home or office, keeping you comfortable.

Let’s break down the main parts of an ac fan motor and how they work together:

Component	Function
Motor Housing	Protects the inside parts and helps cool the motor.
Rotor and Stator	The rotor spins the fan. The stator creates a magnetic field to move it.
Fan Blades	Move air through the system as they turn.
Bearings	Help the rotor spin smoothly and last longer.
Capacitor	Gives the motor a boost to start and keeps it running well.
Wiring and Connectors	Carry electricity to the motor.
Motor Mounts	Hold the motor in place and cut down on noise.
Control Board	Tells the motor when to turn on or off.
Speed Controller	Changes how fast the motor spins in some models.

You should also know that ac fan motors must meet safety standards. For homes, look for these certifications:

Standard	Description
IEC/EN 60335-1	Makes sure the motor is safe for home use and can handle high heat.
UL 507	Checks that the motor’s plastic parts are safe and won’t catch fire easily.
CSA C22.2 No. 60335-2-80	Sets rules for household fans to keep them safe and reliable.

Where It’s Located

You can find the ac fan motor in different spots, depending on your system. Here are the most common places:

• Central AC units: The blower motor sits in the air handler, often in the basement, attic, or a closet.

• Furnaces: The blower motor is inside the furnace, usually in the basement, utility room, or garage.

• Heat pumps: The blower motor is in the air handler, just like in central AC systems.

If you ever need to check or replace your ac fan motor, knowing where to look saves you time and trouble.

Types of Air Conditioning Motors

When you look at your air conditioning system, you will see different ac fan motors. Each motor does a special job. Let’s talk about the main types so you know what is inside your system.

Condenser Fan Motors

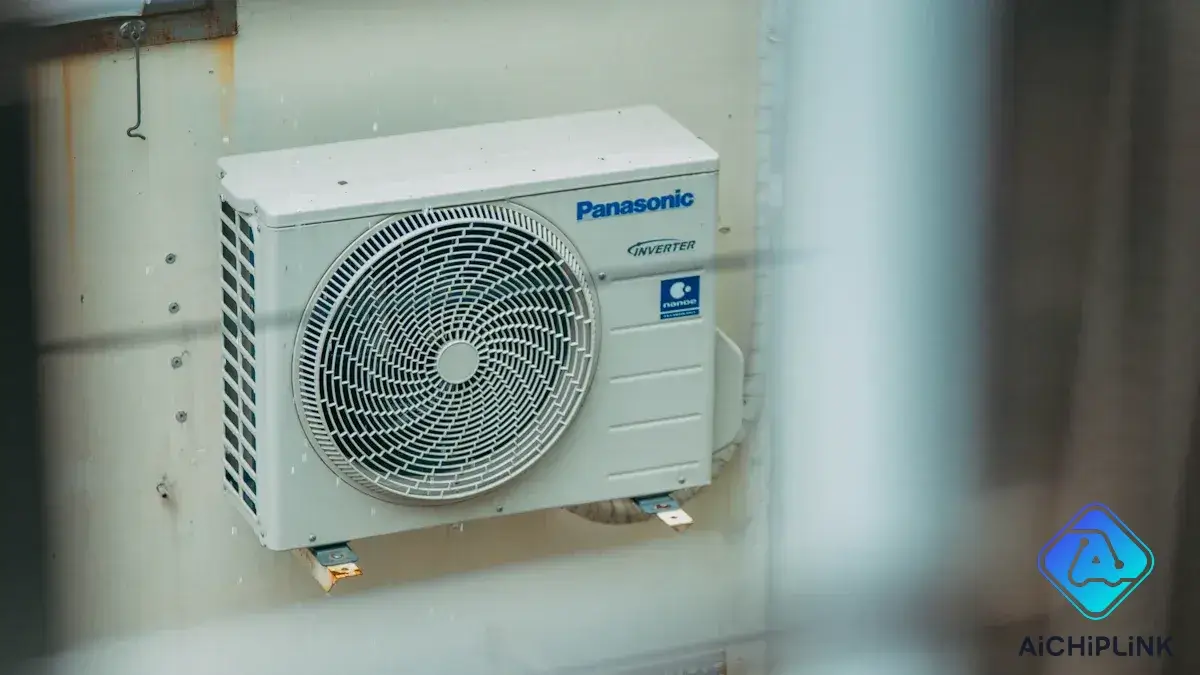

The condenser fan motor is outside in a big metal box. Its job is to blow air over the condenser coil. This helps your system get rid of heat. The condenser fan motor has bigger blades. These blades push lots of air to cool the coil quickly. Most of these motors use single-phase power. This makes them simple and easy to use.

Here is a table that compares condenser fan motors and blower motors:

Feature	Condenser Fan Motors	Blower Motors
Function	Moves air across the condenser coil to get rid of heat	Pushes air through rooms
Motor Type	Usually single-phase motors	Usually multi-speed motors
Fan Blade Size	Bigger blades to move more air	Smaller blades than condenser fan motors
Power Consumption	Uses less power to move air over the coil	Uses more power to push air through the house

A condenser fan motor or compressor motor can last 10 to 20 years. You need to take care of it to make it last longer.

Blower Motors

The blower motor moves air inside your house. You will find it in the air handler or furnace. This motor pushes cool or warm air through the ducts. It sends air into every room. Blower motors have smaller blades than condenser fan motors. They work harder and run longer. They use more power because they move air all over your house.

There are different blower motors. Some are single-speed, some are multi-speed, and some are variable-speed. Each type changes how your system feels and sounds.

Tip: If your blower motor makes weird noises or the air flow drops, you should check or replace it.

Single-Speed, Multi-Speed, Variable-Speed

There are three main types of ac fan motors in new systems:

Type of Motor	Advantages	Disadvantages
Single-Speed	Costs less, easy to install, simple to fix	Not as efficient, louder, shorter life (about 15 years)
Multi-Speed	Better temperature control, more efficient, quieter	More complicated, costs more at first
Variable-Speed	Very efficient (uses about 25% of the power of single-speed), quiet, lasts 15-20 years	Costs the most, harder to repair

Variable-speed motors save lots of energy. They can run slower and use up to 75% less power than single-speed motors. This helps you save money on your bills. Single-speed motors waste energy because they turn on and off a lot. Variable-speed motors keep things comfy and use less power by running longer at slow speeds.

If you want the best air conditioning motor, pick a system with a variable-speed blower motor or compressor motor. These motors help your home stay cool and quiet. They also use less electricity.

Function

Air Circulation

When you turn on your air conditioning system, you want cool air in every room. The ac fan motor makes this happen. It pushes air through the ducts and out the vents. You get even cooling all over your home. If the fan motor stops working, you might notice weak airflow or some rooms feeling warmer than others.

• The ac fan motor moves cooled air throughout your home, making sure every space feels comfortable.

• If the motor fails, you get weak airflow and uneven cooling.

• Good airflow keeps your energy bills lower and helps your system work less.

Tip: If you hear strange noises or feel less air coming from your vents, check the fan motor. A quick fix can save you from bigger problems later.

Cooling Efficiency

You want your air conditioning system to cool your home fast and keep you comfortable. Air conditioning motors play a big part in this. When the fan motor works well, it keeps air moving smoothly. This helps your system keep the temperature steady and stops hot or cold spots from forming. You get better comfort and your system does not have to work as hard.

A high-efficiency fan motor uses less power. You save money on your electric bill. Your system lasts longer because it does not have to run as much. Clean and well-maintained motors also keep dust and dirt from building up inside your air conditioning system. This means fewer breakdowns and better cooling.

If the fan motor fails, you might notice warm air blowing from your vents. The system can overheat or shut off too often. Sometimes, you hear loud buzzing or squealing sounds. These are signs that you need to check your air conditioning system right away.

Note: Regular maintenance keeps your air conditioning system running smoothly. It also helps you avoid costly repairs and keeps your home cool all summer.

AC Motor Replacement

Signs You Need to Replace AC Fan Motor

You might wonder how to spot the common symptoms of a failing ac fan motor. Your air conditioner gives you clues when something is wrong. Here are the top signs of a failing motor:

1. The fan doesn’t start, even when the AC is on.

2. The fan keeps running after you turn the AC off.

3. The fan blades spin very slowly or not at all.

4. You hear rattling, humming, or buzzing noises from the outside unit.

5. The AC runs on and off, or you notice it shuts down by itself.

6. You feel weak or no cold airflow from the vents.

7. The outside fan blades stay still, but you hear the compressor working.

Tip: If you notice any of these problems, you may need to replace ac fan motor soon. Ignoring these signs can lead to bigger air conditioning repair bills.

Tools and Safety

Before you start any ac motor replacement, you need the right tools and safety steps. Here’s what you should have ready:

• Multimeter

• Set of screwdrivers

• Socket set

• Pliers

• Wire strippers

• Electrical tape

• Gear puller

• New fan motor (make sure it matches your old one)

• Fan start capacitor (recommended)

• Safety goggles and gloves

Always check that the new air conditioning motor matches the old one. You can find the specs on the nameplate or in your system’s manual.

Safety First:

• Turn off the power at the circuit breaker before you touch anything.

• Wear gloves and goggles to protect yourself.

• Make sure your clothes won’t get caught in moving parts.

• Read your AC’s manual so you know where everything is.

Replace AC Fan Motor

Ready to tackle the step-by-step replacement process? Take your time and follow these steps for a safe and smooth job:

1. Gather all your tools and put on your safety gear.

2. Turn off the power at the breaker. Double-check with a multimeter to make sure there’s no electricity.

3. Remove the access panel from your AC unit using a screwdriver.

4. Take a photo of the wiring before you disconnect anything. This helps you remember where each wire goes.

5. Unplug the electrical connectors from the fan motor.

6. Carefully discharge the capacitor by following your AC’s manual. This step keeps you safe from electric shock.

7. Unscrew or unbolt the old fan motor. Use a gear puller if the fan blade is stuck.

8. Gently lift out the old motor and set it aside.

9. Install the new fan motor in the same position. Secure it with screws or bolts.

10. Reconnect the wiring, using your photo as a guide.

11. Replace the access panel.

12. Restore power at the breaker and test your AC to make sure the new motor works.

Note: If you feel unsure at any step, stop and call a professional. Working with air conditioning motors can be tricky and even dangerous.

When to Call a Pro

Sometimes, it’s best to leave ac motor replacement to the experts. Here’s when you should call for air conditioning repair:

• You hear loud noises or see sparks.

• The airflow is weak, or the AC won’t start at all.

• The unit overheats or your energy bills go up for no reason.

• You don’t have the right tools or feel nervous about electrical work.

Replacing an AC fan motor can be complicated. If you make a mistake, you might damage your system or even risk electrocution. Diagnosing the problem isn’t always easy, either. Sometimes, the issue isn’t the motor but another part, like the capacitor or thermostat. A pro can spot the real problem and fix it safely.

Cost and Warranty:
The average cost for a replacement condenser fan motor is about $450. If your motor is under warranty, you might pay only $100 to $300. Without a warranty, the price can reach $700. Always check your warranty before you start any air conditioning repair.

Environmental Tip:
Don’t just throw away your old motor. Recycling helps protect the environment and saves energy by reusing valuable metals.

Did You Know?
AC fan motors usually last around 12 years. Regular cleaning and yearly checkups help them last even longer.

Knowing about your AC fan motor helps you keep cool at home. It also helps your AC work well. Always think about safety before replacing anything. If you are not sure what to do, ask a pro for help. Taking care of your AC is important. Here are some easy tips:

• Use surge protectors to keep power steady.

• Put oil on bearings often.

• Clean the motor so dirt does not build up.

• Make sure fan blades are balanced.

• Look at the motor often to check for problems.

Doing these things gives you many good results:

Benefit	Description
Extending Lifespan	Your AC works longer and does not wear out fast.
Improving Energy Efficiency	Clean parts help save energy and lower costs.
Preventing Costly Repairs	Fixing small things now stops big repairs later.
Enhancing Indoor Air Quality	Clean filters help your family breathe better air.

If you keep up these habits, your AC fan motor will last for many years!
