In any industrial setting, the failure of a standard relay might cause a machine to stop working—an expensive inconvenience. But in a safety circuit, the failure of a relay could be catastrophic, leading to severe injury or worse. This is why a simple red "Emergency Stop" button can't be wired to just any relay. It requires a specialized component: the safety relay. Believing a standard relay is "good enough" for a safety function is one of the most dangerous misconceptions in machine design. According to recent data from the U.S. Bureau of Labor Statistics, thousands of workers suffer serious injuries from equipment contact each year, a statistic that underscores the need for proper safety systems. This guide will demystify the safety relay, explain its unique internal design, and show why it is a non-negotiable component for protecting people and meeting critical safety standards.
1.0 What is a Safety Relay (and Why Isn't It a Normal Relay)?
A safety relay is a specialized monitoring device that serves as the logic-solving component of a safety circuit. It is designed to reliably and safely de-energize a machine when a safety device (like an E-Stop button or light curtain) is triggered or if a fault occurs within the safety circuit itself.
1.1 The Core Purpose: Ensuring a Safe State in Machinery
The primary job of a safety relay is to implement safety functions correctly and reliably. Its core purposes are:
- To monitor safety input devices: This includes emergency stop buttons, safety gates, light curtains, and pressure mats.
- To provide a safe switching output: To reliably shut down power to a machine's primary control element (like a motor contactor or a drive).
- To fail in a predictable, safe manner: This is the most important function. If the safety relay itself has an internal fault, it must revert to a safe, de-energized state.
1.2 The Critical Difference: Safety Relay vs. Standard Relay
The most critical question is, "Why can't I just use a standard, high-quality relay?" The answer lies in their fundamental design and failure modes.
| Feature | Standard Relay | Safety Relay |
|---|---|---|
| Contacts | Standard (independent) | Force Guided / Positively Driven |
| Failure Mode | Unpredictable (can fail open or welded shut) | Predictable (fails to a safe, open state) |
| Redundancy | None | Internal redundancy (dual channels) |
| Monitoring | None | Monitors for faults, shorts, and its own status |
| Safety Rating | None | Rated to standards like ISO 13849-1 (PL) & IEC 62061 (SIL) |
2.0 How a Safety Relay Works: The Principle of Force Guided Contacts
A safety relay's reliability comes from a combination of two key design principles: redundancy and a special mechanical construction known as force guided contacts.
2.1 A Look Inside: Redundancy and Self-Monitoring
A safety relay is essentially a "relay checking on another relay." It uses two redundant internal channels. The monitoring circuit checks that both channels operate identically. If one channel fails to open or close in sync with the other—due to a wiring fault or a welded contact—the safety relay detects the discrepancy, shuts down the output, and prevents a restart until the fault is cleared.
2.2 What are Force Guided Contacts? The Non-Weld Guarantee
This is the mechanical heart of every safety relay. Force guided contacts (also called positively driven contacts) means that the normally open (NO) and normally closed (NC) contacts are mechanically linked together.
- If a power-switching (NO) contact welds itself shut, the linked monitoring (NC) contact is physically unable to move back to its default closed state.
- When the safety relay's logic tries to de-energize the circuit, it sees that the NC contact has not closed as expected.
- It interprets this as a dangerous fault (a welded contact) and prevents the machine from being restarted. A standard relay provides no such feedback.
3.0 Common Safety Relay Applications and Types
Safety relays are the logic solvers for a wide variety of safety input devices. Specialized modules exist for different functions.

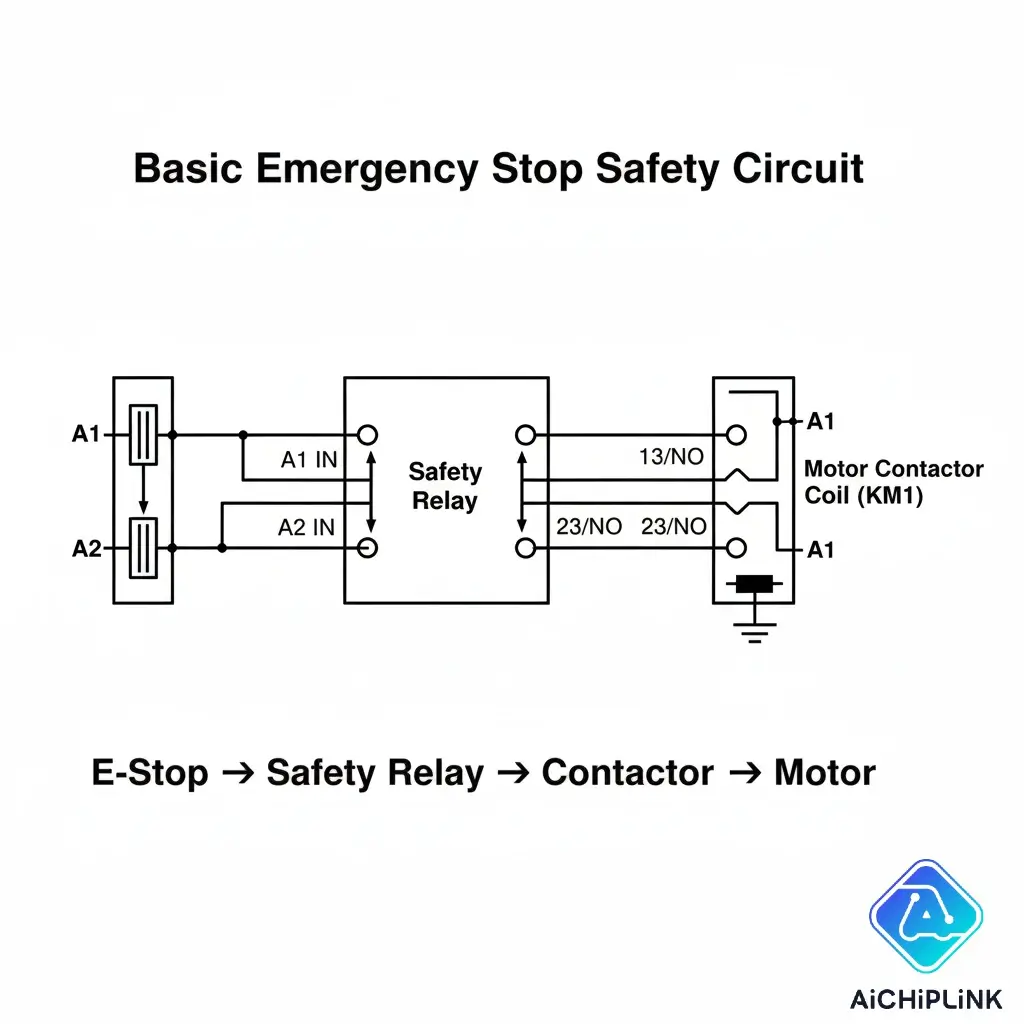

3.1 Emergency Stop (E-Stop) Circuits
This is the most common application. The safety relay monitors the dual contacts of an E-Stop button. When the button is pressed, the relay safely removes power to the machine's main contactors and monitors the circuit for faults. You can find E-Stop safety relays designed specifically for this purpose.
3.2 Light Curtains and Safety Gates
- Light Curtains: A safety relay monitors the output signal switching devices (OSSDs) of a light curtain. If a beam is broken, the relay immediately triggers a safe stop.
- Safety Gates: The relay monitors the position switches on a movable guard door. It ensures the machine cannot operate while the gate is open and cannot be opened while the machine is running (in locking gate applications).
3.3 Two-Hand Controls and Muting
- Two-Hand Controls: For machines like metal presses, the safety relay ensures that the operator must have both hands on two separate buttons to initiate a machine cycle, keeping their hands out of the danger zone.
- Muting: A specialized function where a safety device (like a light curtain) is temporarily and automatically bypassed to allow material (e.g., a pallet) to pass through without tripping the system.
"A safety circuit is only as strong as its weakest link. Using a certified safety relay ensures that the 'brain' of your safety system is just as robust as the input buttons and output contactors it controls." - OSHA on Machine Guarding
4.0 How to Choose and Implement a Safety Relay
Choosing and installing a safety relay requires careful consideration of your application's specific safety requirements.
4.1 Understanding Safety Standards (ISO 13849-1)
Modern machine safety is governed by standards like [ISO 13849-1]. This standard requires you to perform a risk assessment to determine the required Performance Level (PL) for your safety function, which ranges from PLa (low risk) to PLe (very high risk). You must then select safety components, including your safety relay, that are certified to meet or exceed this required PL.
4.2 Key Factors for Choosing a Safety Relay
- Required Performance Level (PLr): The relay must be rated for the PL determined by your risk assessment.
- Input Device: Is the relay designed for an E-Stop, a light curtain, a gate, or another device?
- Number of Outputs: How many safe output contacts do you need to control your power contactors?
- Logic Function: Does the application require time delays or other special logic?
- Reset Method: Does your application require a manual or automatic reset?
4.3 A Note on Resetting a Safety Relay
After a safety device is triggered and the hazard is cleared, the safety relay must be reset. This is typically done in one of two ways:
- Manual Reset: A momentary push button is pressed to reset the relay. This is the most common and generally safest method, as it requires a deliberate action by the operator.
- Automatic Reset: The relay resets automatically as soon as the input device is cleared. This is only allowed in specific, lower-risk applications where it does not create an additional hazard.
The safety relay is more than just a robust component; it's a purpose-built, intelligent device designed with a single, critical mission: to fail safely. Its use of force guided contacts and internal self-monitoring provides a level of diagnostic coverage and reliability that standard relays can never achieve. In the modern industrial world, where operator safety and regulatory compliance are paramount, the safety relay is not an option—it is an absolute necessity.
Ready to build a compliant and safe machine? Browse our catalog of certified safety relays and industrial control components at aichiplink.com to ensure your safety systems are built right.
Written by Jack Elliott from AIChipLink.
AIChipLink, one of the fastest-growing global independent electronic components distributors in the world, offers millions of products from thousands of manufacturers, and many of our in-stock parts is available to ship same day.
We mainly source and distribute integrated circuit (IC) products of brands such as Broadcom, Microchip, Texas Instruments, Infineon, NXP, Analog Devices, Qualcomm, Intel, etc., which are widely used in communication & network, telecom, industrial control, new energy and automotive electronics.
Empowered by AI, Linked to the Future. Get started on AIChipLink.com and submit your RFQ online today!
Frequently Asked Questions
What is the main difference between a safety relay and a normal relay?
The main difference is their internal construction and failure mode. A safety relay uses force guided contacts, which ensures that if a 'power-on' contact welds shut, the corresponding 'power-off' feedback contact is mechanically prevented from closing. A normal relay offers no such guarantee.
What does force guided mean in a relay?
'Force guided' contacts are a mechanical design feature where the normally open (NO) and normally closed (NC) contacts are linked. If an NO contact welds shut, the linked NC contact is physically blocked from returning to its closed state. This guaranteed state detection is the core principle of all safety relays.
Do I have to use a safety relay for an emergency stop button?
Yes, according to international safety standards like ISO 13849-1, you must use a certified safety monitoring device, such as a safety relay or safety PLC, for emergency stop functions. A standard relay is not sufficient.
What are the two channels in a safety circuit?
The two channels refer to the redundant wiring practice required for most safety circuits. For example, an E-stop button will have two separate electrical contacts. The safety relay monitors both of these independent channels to ensure that a single wiring fault or switch failure cannot render the safety function inoperable.
Can a PLC replace a safety relay?
A standard PLC cannot. However, a specialized **Safety PLC** can. Safety PLCs are designed and certified to the same safety standards as safety relays but are programmable and can manage multiple, more complex safety functions for an entire machine or production line.
