1.0 Comprehensive W25Q01JVSFIQ Datasheet & Technical Overview

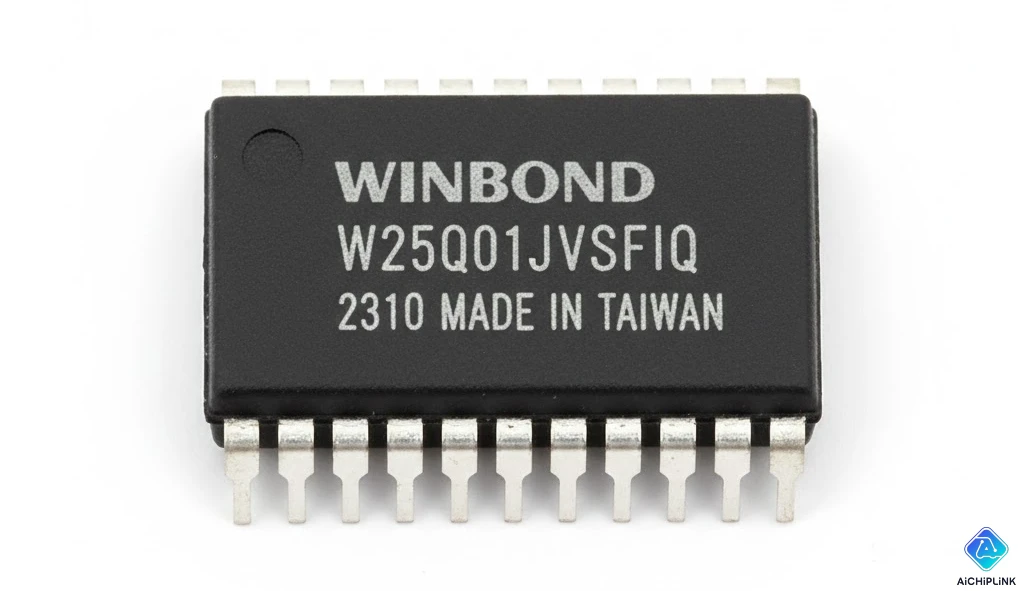

In the era of 5G infrastructure and complex edge AI, memory density is no longer just a luxury—it’s a prerequisite. The W25Q01JVSFIQ is a 1G-bit (128M-byte) Serial Flash memory from Winbond that pushes the boundaries of the SPI interface. As we move into 2026, the need for reliable, high-capacity code storage has led to a 35% increase in adoption for 1Gb SPI parts in the automotive and industrial sectors.
Did you know that the W25Q01JV series is designed to replace much bulkier Parallel Flash memories while saving up to 60% of PCB space? This efficiency makes the W25Q01JVSFIQ a critical component for designers at aichiplink.com. In this roadmap, we will explore the architecture that enables its high-speed performance.
1.1 SpiFlash® Multi-I/O Architecture Explained
The W25Q01JVSFIQ utilizes Winbond’s proprietary SpiFlash® technology, supporting Standard SPI, Dual SPI, and Quad SPI. This flexibility allows it to deliver data transfer rates that rival high-end parallel memories while maintaining a low pin count, which is essential for minimizing EMI in high-speed designs.
2.0 W25Q01JVSFIQ Specifications: Clock Speed and Bandwidth
The "-IQ" speed grade is where the W25Q01JVSFIQ truly excels. Supporting clock frequencies up to 133MHz, it can achieve an equivalent transfer rate of 532Mbps (66MB/s) when using Quad I/O mode.
2.1 Performance Comparison: 1Gb SPI Flash Options
When compared to other 1Gb Serial Flash competitors, Winbond maintains a lead in power efficiency and erase/program cycle endurance.
| Feature | W25Q01JVSFIQ | Common 1Gb Competitor |
|---|---|---|
| Max Clock Speed | 133 MHz | 108 MHz |
| Quad SPI Support | Yes (DTR supported) | Yes (Standard only) |
| Operating Voltage | 2.7V - 3.6V | 2.7V - 3.6V |
| Erase Endurance | 100,000 Cycles | 50,000 Cycles |
| Availability | In Stock (AichipLink) | Limited |
3.0 Advanced Security and Data Protection Features
For industrial and medical applications, data integrity is non-negotiable. The W25Q01JVSFIQ includes a suite of hardware and software protection mechanisms designed to prevent unauthorized code modification or accidental erasure.
3.1 Hardware Write Protection and OTP Security
The device features a Write Protect (WP) pin and multiple status register bits. Furthermore, it offers three 256-byte Security Registers with OTP (One-Time Programmable) lock capabilities, making it ideal for storing unique device IDs and encryption keys.
4.0 W25Q01JVSFIQ Price Trends and Inventory Status 2026
As of early 2026, the market for high-density SPI Flash has stabilized. However, the W25Q01JVSFIQ remains a high-demand item due to its popularity in the EV (Electric Vehicle) charging and networking markets.
"High-density SPI Flash like the W25Q01JV is the backbone of reliable OTA (Over-The-Air) update systems in the next generation of smart hardware."
At aichiplink.com, we maintain active stock of the W25Q01JVSFIQ to support our clients' rapid prototyping and mass production needs.
Conclusion
The W25Q01JVSFIQ is a robust, high-performance solution for engineers who need to balance massive code storage with a small physical footprint. Its 133MHz Quad SPI performance and industrial-grade reliability make it a future-proof choice for the hardware cycles of the late 2020s. As forward-looking statements suggest, the shift towards 1Gb+ SPI Flash will continue to accelerate as IoT devices become more sophisticated.
Written by Jack Elliott from AIChipLink.
AIChipLink, one of the fastest-growing global independent electronic components distributors in the world, offers millions of products from thousands of manufacturers, and many of our in-stock parts is available to ship same day.
We mainly source and distribute integrated circuit (IC) products of brands such as Broadcom, Microchip, Texas Instruments, Infineon, NXP, Analog Devices, Qualcomm, Intel, etc., which are widely used in communication & network, telecom, industrial control, new energy and automotive electronics.
Empowered by AI, Linked to the Future. Get started on AIChipLink.com and submit your RFQ online today!
Frequently Asked Questions
What is the storage capacity of the W25Q01JVSFIQ?
The W25Q01JVSFIQ has a capacity of 1G-bit, which is equivalent to 128MB (Megabytes) of storage space.
Is the W25Q01JVSFIQ compatible with standard SPI controllers?
Yes, it is fully backward compatible with Standard SPI and Dual SPI, though Quad SPI is required to achieve its maximum throughput.
What does the "IQ" suffix mean in the part number?
The "IQ" suffix indicates the device's package type (typically SOIC-16) and its industrial temperature range support (-40°C to +85°C).
How do I find a W25Q01JVSFIQ equivalent?
Common equivalents include parts from Macronix or GigaDevice, but you must verify pin-to-pin compatibility and command set support. Visit aichiplink.com for a cross-reference check.
Where can I download the W25Q01JVSFIQ PDF datasheet?
The official technical datasheet is available for immediate download on the product page at aichiplink.com
