You’ve picked out your solar panels and selected your batteries. But there’s a critical component sitting between them that will determine the efficiency and lifespan of your entire off-grid system: the solar charge controller. Making the right choice in the PWM vs MPPT solar charge controllers debate can be the difference between a trickle of power and a torrent. Choosing incorrectly means leaving valuable energy on the table and potentially damaging your expensive battery bank. With the global off-grid solar market showing robust growth and expected to expand significantly by 2028, more people than ever are relying on these systems for power. This guide will demystify the two leading technologies, PWM and MPPT, giving you the clarity to select the perfect controller to maximize your solar investment.
1.0 What Are PWM & MPPT Controllers? The Basics Explained
Before diving into a head-to-head battle, you need to understand the role of the champion and the challenger. Both are designed to do the same fundamental job, but they go about it in vastly different ways.
1.1 What is a Solar Charge Controller?

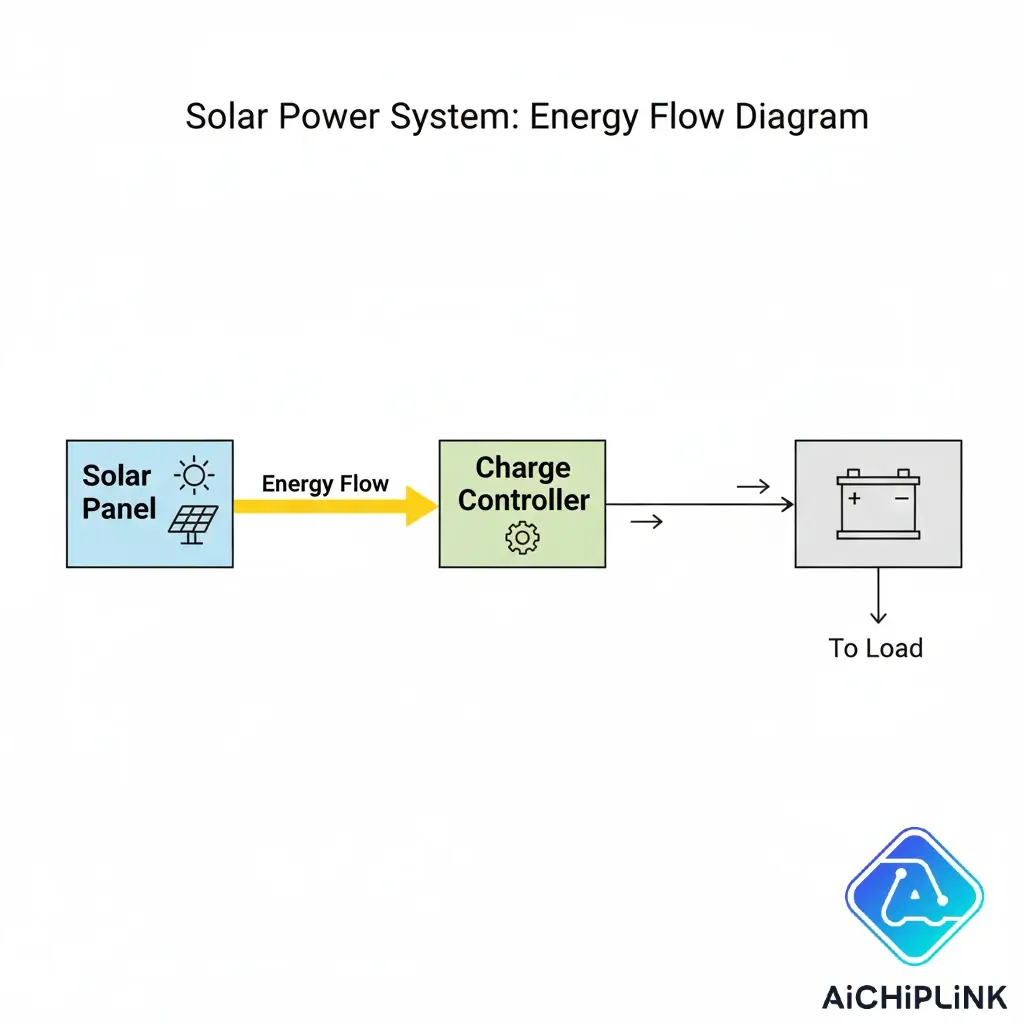

A solar charge controller, or regulator, is the brain of your solar charging system. It sits between your solar panels and your batteries and has two primary responsibilities:
- Prevent Overcharging: It regulates the voltage and current coming from the panels to prevent them from overcharging and damaging the batteries.
- Prevent Backflow: At night, it stops current from flowing back out of the batteries and into the panels, which would drain them.
Think of it as a smart valve, ensuring the batteries get exactly the right amount of energy, no more and no less.
1.2 PWM (Pulse Width Modulation) Controllers Explained
PWM is the older, simpler, and less expensive of the two technologies. It works by making a direct connection from the solar panel to the battery. As the battery charges, the controller rapidly switches this connection on and off to taper the current and maintain the battery at a safe "float" voltage.
- Technology: Time-tested and reliable.
- Cost: Very affordable.
- Best For: Small, simple, low-power systems.
1.3 MPPT (Maximum Power Point Tracking) Controllers Explained
MPPT is a more advanced and more efficient technology. Instead of a direct connection, it features a smart DC-to-DC converter that can transform the voltage and current from the panels. It actively tracks the "maximum power point" of the solar panel—the ideal combination of voltage and current that yields the most power—and converts it to the optimal voltage for charging the battery.
- Technology: Advanced and highly efficient.
- Cost: More expensive upfront.
- Best For: Larger systems and maximizing power harvest.
2.0 The Core Difference: How PWM and MPPT Controllers Work
The best analogy is a water hose. A PWM controller is like a simple on/off nozzle. An MPPT controller is like a sophisticated gearbox that can trade high pressure for more flow, ensuring no power is wasted.
2.1 How a PWM Controller Works: The Simple Switch
A PWM controller essentially drags the solar panel's voltage down to match the battery's voltage. If you have a 100-watt panel rated for 18V and a 12V battery, the PWM controller forces the panel to operate at ~12V. Since Power = Voltage x Current, you lose the ability to harvest the panel's full power potential. The extra volts are simply wasted as heat.
2.2 How an MPPT Controller Works: The Smart DC-DC Converter
An MPPT controller finds the sweet spot on the panel's power curve (e.g., 18V and 5.5A for a 100W panel) and captures all that power. It then converts the excess voltage into more current at the lower battery voltage. So, it might convert 18V @ 5.5A (100W) into roughly 13V @ 7.7A (100W), sending more charging current to your battery than the panel is natively producing. This process is detailed by institutions like the National Renewable Energy Laboratory (NREL) as key to photovoltaic system efficiency.
"The magic of MPPT isn't creating energy, but rather converting it. It ensures that the power your panel can produce is the power your battery actually receives."
3.0 PWM vs MPPT: A Head-to-Head Comparison
Now, let's put the two technologies side-by-side to see where each one shines.
3.1 Efficiency and Power Harvest
This is the MPPT's knockout punch. By converting excess voltage into charging current, an MPPT controller can be up to 30% more efficient than a PWM controller. This is especially true in cold weather when the panel's voltage is higher. This means more power, faster charging, and a better return on your investment in solar panels.
3.2 Cost Difference: Upfront vs. Lifetime Value
PWM controllers are significantly cheaper upfront. However, the higher efficiency of an MPPT controller can lead to long-term savings. Because it harvests more power, you may be able to meet your energy needs with a smaller, less expensive solar array.
| Feature | PWM Controller | MPPT Controller |
|---|---|---|
| Upfront Cost | Low | High |
| Efficiency | ~70-80% | ~95-99% |
| Power Harvest | Good | Excellent |
| Long-Term Value | Fair | Excellent |
3.3 Panel Voltage and System Sizing
- PWM: Requires that the nominal voltage of the solar panel array matches the nominal voltage of the battery bank (e.g., a 12V panel for a 12V battery).
- MPPT: Allows for much greater flexibility. You can use higher voltage panels (like inexpensive grid-tie panels) to charge a lower voltage battery bank. This also allows for longer wire runs from the panels to the controller without significant power loss.
3.4 Performance in Different Weather Conditions
- PWM: Performs reasonably well in consistently hot, sunny climates where the panel voltage is naturally lower and closer to the battery voltage.
- MPPT: Shines in cold or cloudy conditions. When it's cold, a panel's voltage rises, and an MPPT can capture that extra voltage and turn it into usable power, whereas a PWM would waste it.

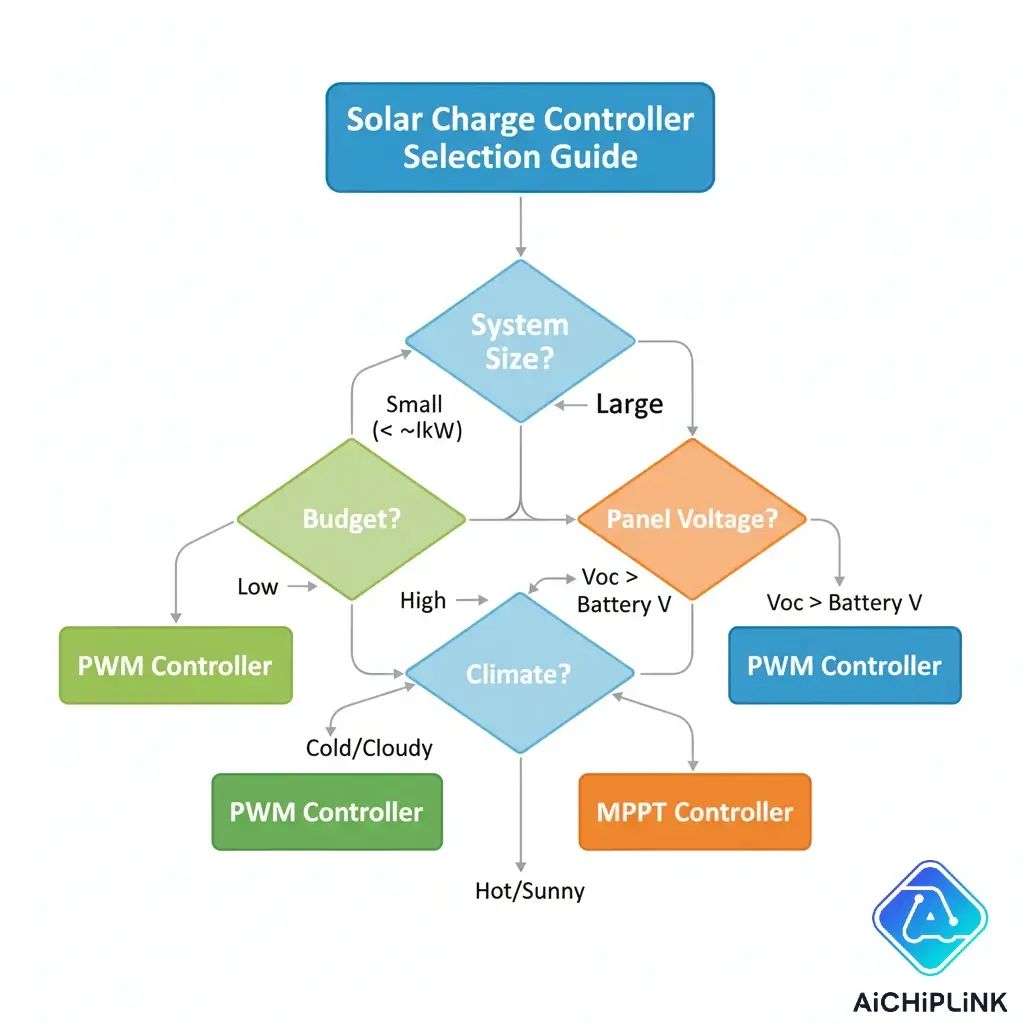

4.0 How to Choose: When to Use MPPT vs. PWM
The final decision in the PWM vs MPPT debate comes down to your specific system, climate, and budget.
4.1 When a PWM Controller is the Right Choice
A PWM controller is a great, cost-effective option if all the following are true:
- Your solar array is small (generally under 200W).
- The nominal voltage of your panels matches your battery bank.
- You are on a tight budget.
- Efficiency isn't your absolute top priority (e.g., for a small trickle-charging application).
4.2 When You Should Invest in an MPPT Controller
You should almost certainly choose an MPPT controller if:
- Your solar array is larger (over 200W).
- Your panel voltage is higher than your battery voltage.
- You want to maximize the power from your panels to charge faster or reduce array size.
- Your system is in a location with frequent cloudy or cold conditions.
- You need the best performance for a critical off-grid application.
4.3 Special Considerations: RVs and Lithium Batteries
| Application | Recommended Controller | Why? |
|---|---|---|
| RV / Van Life | MPPT | Roof space is limited, so maximizing power from every panel is critical. An MPPT will get the most power out of your setup. |
| Lithium Batteries | MPPT | Most high-quality MPPT controllers, like many aichiplink.com models, have specific, customizable charging algorithms required to safely and fully charge LiFePO4 and other lithium chemistries. |
In the end, the choice between PWM vs MPPT is a classic case of balancing cost against performance. A PWM controller is a reliable workhorse for smaller applications, while an MPPT controller is a high-performance engine designed to extract every last watt from your solar array. As battery technology evolves and our reliance on off-grid power grows, the advanced features and superior efficiency of MPPT technology will continue to make it the preferred choice for serious solar installations.
Ready to optimize your solar system? Explore our full range of PWM and MPPT solar charge controllers at aichiplink.com and get the power you paid for!
Written by Jack Elliott from AIChipLink.
AIChipLink, one of the fastest-growing global independent electronic components distributors in the world, offers millions of products from thousands of manufacturers, and many of our in-stock parts is available to ship same day.
We mainly source and distribute integrated circuit (IC) products of brands such as Broadcom, Microchip, Texas Instruments, Infineon, NXP, Analog Devices, Qualcomm, Intel, etc., which are widely used in communication & network, telecom, industrial control, new energy and automotive electronics.
Empowered by AI, Linked to the Future. Get started on AIChipLink.com and submit your RFQ online today!
Frequently Asked Questions
Can I use a 24V solar panel with a 12V battery?
Yes, but only if you use an MPPT solar charge controller. An MPPT can efficiently convert the higher panel voltage down to the correct charging voltage for the 12V battery. A PWM controller cannot do this and would waste a significant amount of power.
Is an MPPT controller always better than a PWM?
Not always. While MPPT controllers are more efficient and flexible, a PWM controller can be a perfectly suitable and cost-effective choice for small, simple systems, especially when the solar panel's nominal voltage matches the battery's nominal voltage and the climate is consistently sunny.
What happens if my charge controller is too small?
An undersized charge controller can be damaged by excess current from the solar panels. It's crucial to select a controller with an amperage rating that can handle the full short-circuit current (Isc) of your solar array.
Can I connect two different solar panels to one controller?
It is strongly discouraged. If panels with different electrical characteristics are wired together, the system's performance will be dragged down to that of the lowest-performing panel. It is best to use identical panels with a single controller.
Why is my MPPT controller getting hot?
Some heat is normal, as no electronic process is 100% efficient. However, excessive heat can indicate that the controller is undersized for the solar array or that it lacks adequate ventilation. Ensure there is airflow around the controller's heat sink.
