MAP Sensor: A Complete Guide to Symptoms, Function, and Testing

Table of Contents

• 1.0 What is a Manifold Absolute Pressure (MAP) Sensor and What Does It Do?
  • 1.1 The Core Function: Measuring Engine Load
  • 1.2 What a MAP Sensor Tells the Engine Control Unit (ECU)
  • 1.3 Where is the MAP Sensor Located?
• 2.0 The Telltale Signs: 7 Common Bad MAP Sensor Symptoms
  • 2.1 A Checklist of Common Symptoms
  • 2.2 Understanding Related OBD-II Codes (P0105-P0109)
• 3.0 MAP Sensor vs. MAF Sensor: What's the Difference?
  • 3.1 Pressure vs. Mass: A Fundamental Difference
  • 3.2 Head-to-Head Comparison Table
• 4.0 A Practical Guide to MAP Sensor Maintenance and Testing
  • 4.1 How to Test a MAP Sensor with a Multimeter
  • 4.2 Can You Clean a MAP Sensor?

---

Your car’s engine is a finely tuned machine, but its performance hinges on a constant stream of accurate data. If your vehicle is suffering from poor fuel economy, a rough idle, or a mysterious Check Engine Light, the culprit could be a small but vital component: the Manifold Absolute Pressure (MAP) sensor. This unsung hero of the engine management system plays a critical role in calculating the perfect air-fuel mixture. When it fails, the engine's computer is left guessing, leading to a host of performance issues. This guide will explain everything you need to know about the MAP sensor: its function, the clear symptoms of failure, and how you can test it yourself.

1.0 What is a Manifold Absolute Pressure (MAP) Sensor and What Does It Do?

A Manifold Absolute Pressure (MAP) sensor is a key sensor used in an internal combustion engine's electronic control system. Its job is to measure the pressure inside the intake manifold and report that data back to the Engine Control Unit (ECU).

1.1 The Core Function: Measuring Engine Load

The pressure inside your engine's intake manifold is a direct indicator of how much work the engine is doing, or its "load."

• High Pressure (Low Vacuum): When you press the accelerator, the throttle opens, letting in more air. The manifold pressure rises (approaching atmospheric pressure), indicating a high engine load.
• Low Pressure (High Vacuum): At idle, the throttle is closed, and the engine's pistons create a strong vacuum. The manifold pressure is very low, indicating a low engine load.

The MAP sensor acts like a barometer for the engine, constantly monitoring this internal "weather" to determine the load.

1.2 What a MAP Sensor Tells the Engine Control Unit (ECU)

The ECU uses the MAP sensor's data as a primary input to control two critical functions:

• Fuel Delivery: Based on the engine load reported by the MAP sensor, the ECU calculates precisely how much fuel to inject to maintain the optimal air-fuel ratio.
• Ignition Timing: The ECU also adjusts the ignition timing (when the spark plugs fire) based on engine load to maximize power and efficiency while preventing engine knock.

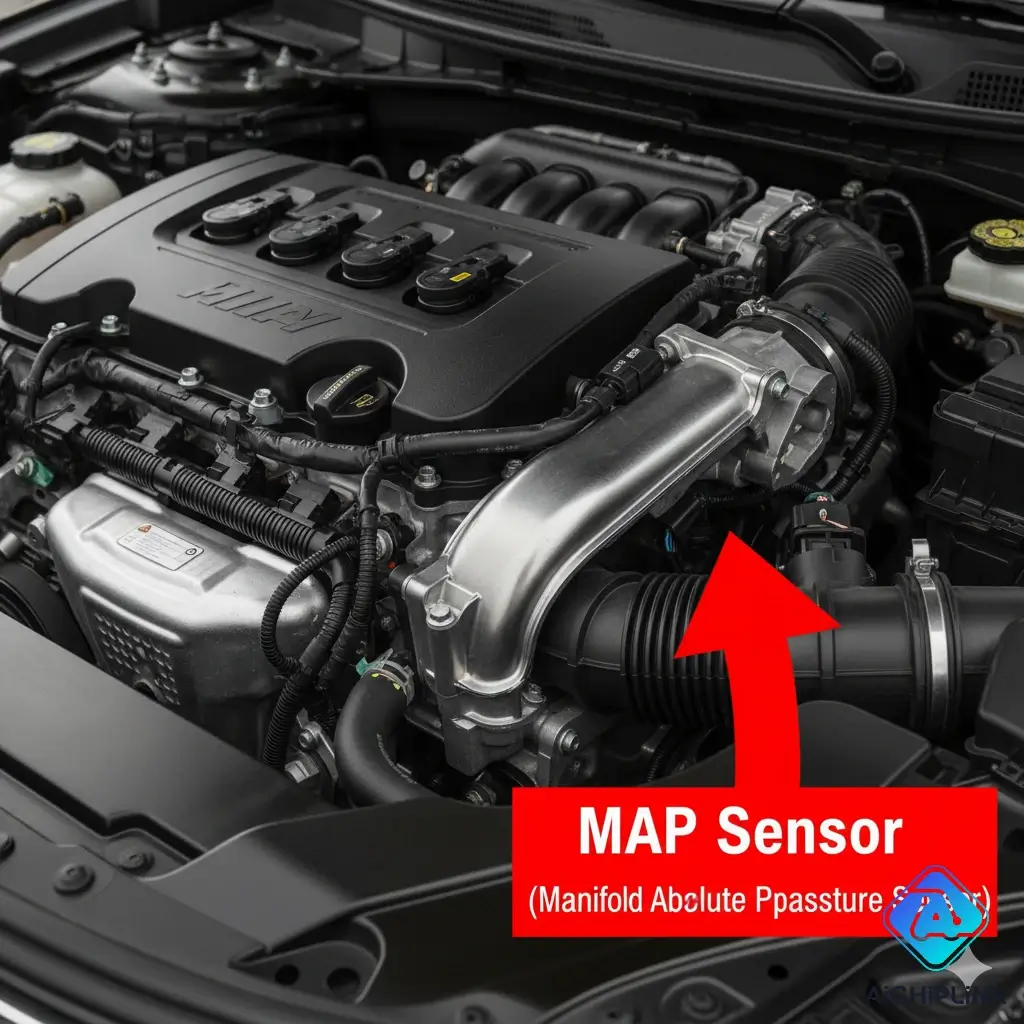

1.3 Where is the MAP Sensor Located?

The MAP sensor is typically a small, black, plastic component mounted directly on the intake manifold, throttle body, or connected via a small vacuum hose. It will have a wiring harness connector attached to it.

2.0 The Telltale Signs: 7 Common Bad MAP Sensor Symptoms

When a MAP sensor fails or provides inaccurate readings, the ECU makes poor decisions about fuel and spark. This results in a number of noticeable performance problems.

2.1 A Checklist of Common Symptoms

• Poor Fuel Economy: This is often the first sign. If the sensor incorrectly reports a high load, the ECU will inject too much fuel, wasting it.
• Rough Idle: An incorrect reading can cause the ECU to miscalculate the air-fuel mixture at idle, leading to a shaky, uneven idle.
• Lack of Power / Hesitation: During acceleration, if the sensor fails to report the increase in engine load, the ECU won't add enough fuel, causing the engine to hesitate or feel sluggish.
• Check Engine Light: A MAP sensor reading that is out of its expected range will trigger a Diagnostic Trouble Code (DTC) and illuminate the Check Engine Light.
• Rich or Lean Fuel Mixture: A "rich" condition (too much fuel) can cause black smoke from the exhaust. A "lean" condition (not enough fuel) can cause hesitation and potentially damaging engine knock.
• Failed Emissions Test: An incorrect air-fuel ratio will lead to high levels of hydrocarbons (HC) or nitrogen oxides (NOx), causing an automatic failure.
• Hard Starting or Stalling: In some cases, a completely failed MAP sensor can make the car difficult to start or cause it to stall intermittently.

2.2 Understanding Related OBD-II Codes (P0105-P0109)

If you have a Check Engine Light, an OBD-II scanner might show one of these common codes related to the MAP sensor circuit:

• P0105: MAP/Barometric Pressure Circuit Malfunction
• P0106: MAP/Barometric Pressure Circuit Range/Performance Problem
• P0107: MAP/Barometric Pressure Circuit Low Input
• P0108: MAP/Barometric Pressure Circuit High Input

3.0 MAP Sensor vs. MAF Sensor: What's the Difference?

Many people confuse MAP sensors with MAF (Mass Airflow) sensors. While they both measure engine load, they do it in completely different ways. Some cars have one or the other, and some performance vehicles have both.

3.1 Pressure vs. Mass: A Fundamental Difference

• A MAP sensor infers the amount of air entering the engine by measuring the pressure in the manifold.
• A MAF sensor directly measures the mass of the air as it passes through the engine's air intake tube, typically using a hot-wire element.

3.2 Head-to-Head Comparison Table

Feature	MAP Sensor	MAF Sensor
Measures	Manifold Pressure (Engine Load)	Mass of Airflow
Principle	Piezoresistive (Pressure changes resistance)	Hot-Wire Anemometer
Location	On or connected to the intake manifold	In the air intake tube, after the air filter
Pros	Simple, reliable, less sensitive to air leaks	Very precise measurement of air mass
Cons	Indirect measurement of air	Can be contaminated by dirt/oil, sensitive to leaks

"Whether an engine uses a MAP or MAF sensor is a core part of its design philosophy. MAP-based systems are often called 'speed-density' systems, while MAF systems are 'mass-airflow' systems." - A concept central to engine tuning, as explained by the Society of Automotive Engineers (SAE).

4.0 A Practical Guide to MAP Sensor Maintenance and Testing

If you suspect your MAP sensor is failing, there are a few simple diagnostic steps you can take.

4.1 How to Test a MAP Sensor with a Multimeter

You can perform a basic test on a common 3-wire MAP sensor with a multimeter.

1. Identify Wires: With the key on but the engine off, probe the connector to find the 5-volt reference, the ground, and the signal wire.
2. Check Baseline Voltage: Connect the multimeter to the signal wire and ground. With the engine off (high pressure), the voltage should be high (~4.5V - 5V).
3. Check Idle Voltage: Start the engine. At idle (high vacuum), the pressure drops, and the signal voltage should drop significantly (~1V - 2V).
4. Check Response: Briefly open the throttle. The voltage should quickly snap up towards the baseline voltage as the vacuum drops. If the voltage doesn't change or is stuck high or low, the sensor is likely bad.

4.2 Can You Clean a MAP Sensor?

Unlike a MAF sensor, which can often be cleaned with a special spray, cleaning a MAP sensor is generally not effective or recommended. The sensing element is usually a delicate piezoresistive diaphragm that is not directly exposed. If the port is clogged with carbon, you can gently clean the port, but if the sensor itself is faulty, it needs to be replaced. A faulty automotive sensor can cause a cascade of issues, making replacement the most reliable solution.

---

The Manifold Absolute Pressure sensor is a small but mighty component that has a huge impact on your engine's health. By listening to the subtle pressures inside the manifold, it provides the critical data your ECU needs to run efficiently and cleanly. If your car is exhibiting the classic symptoms of a bad MAP sensor, don't ignore them. A timely diagnosis and a quality replacement part can restore your vehicle's performance, improve your fuel economy, and save you from more costly repairs down the road.
