To choose an op-amp for your circuit, carefully match its specifications to your project’s requirements. Always review datasheets and application notes to get advice tailored to your needs. Use supplier search tools to quickly find op-amps with the right features. When you choose op-amp components, consider performance, cost, and compatibility with your design. Engineers sometimes make errors like selecting the wrong package, using op-amps as comparators, or leaving unused amplifiers open, which can cause noise issues. Being mindful of these points helps you choose op-amp devices that work best for your circuit.
-
Choose the right package for your op-amp to avoid problems later.
-
Only use operational amplifiers to amplify signals, not as voltage comparators.
-
Properly connect unused op-amp pins to prevent extra noise or issues.
Key Takeaways
- Make sure your op-amp’s specs fit your circuit’s needs. Check datasheets and look at example circuits to help you. Pick op-amps by looking at signal type, voltage, frequency, noise, and power needs. Always check important specs like supply voltage, output current, slew rate, offset voltage, and bandwidth. Use online tools to compare op-amps and find the best one fast. Try not to make mistakes like picking the wrong package, using op-amps as comparators, or leaving unused amplifiers open.
Choose Op-Amp by Application
You should know what your circuit does before picking op-amp devices. Every application, like audio, sensor, filter, RF, or precision measurement, needs different things. Makers often show example circuits in datasheets and notes. Looking at these examples helps you pick the best op-amp for your project.
Signal Type
Electronic circuits have many signal types. The type of signal changes how you pick op-amp parts:
-
Weak analog signals from sensors need high input impedance and low output impedance. This stops signal loss and loading.
-
Audio signals need op-amps with low noise and distortion. You want clear sound and good amplification for audio.
-
RF signals and fast data need op-amps with high bandwidth and quick response.
-
Precision measurement signals need low offset voltage and steady gain.
You can pick op-amp types by how your signal acts:
-
Dual supply op-amps are good for signals around 0V but need both positive and negative voltages.
-
Single supply op-amps work best for battery-powered or low-voltage circuits.
-
Rail-to-rail op-amps let signals get close to the supply rails. This is important for getting the most range in low-voltage systems.
Tip: Always check input and output impedance, voltage range, and offset voltage in the datasheet before picking op-amp devices for your circuit.
Voltage and Current
Voltage and current levels matter a lot when picking op-amps. If your circuit needs output close to the supply rails, pick a rail-to-rail op-amp. Standard op-amps might not reach the supply limits. This can cause clipping or lost signal range.
-
For example, if your circuit needs output from 7V to 15V with a +15V supply, only a rail-to-rail output op-amp can do this.
-
The amplifier’s gain depends on the ratio between input and output voltage ranges. You set this gain with resistor values in your circuit.
-
You also need to think about the input common-mode voltage range. The op-amp should work well within your circuit’s input and output voltage needs.
Note: Always match the op-amp’s voltage and current abilities to your circuit’s needs. This helps you avoid distortion or signal loss.
Frequency Needs
Circuits work at different frequencies. The frequency range changes which op-amp family you should pick. Here is a table to help you match your circuit’s frequency needs to the right op-amp type:
| Frequency Range | Description | Suitable Op-Amp Families |
|---|---|---|
| Low Frequency (Low Speed) | Used in slow sensing circuits, needs very low offset and noise | Zero-drift op-amps |
| Medium Frequency | Covers most general-purpose and precision circuits | Precision, general-purpose, low-noise |
| High Frequency (High Speed) | Bandwidths from 50 MHz to GHz, for fast data, RF, and high-speed circuits | High-speed, current feedback, JFET input |
| Rail-to-Rail/High Voltage | Wide dynamic range, often for high-speed or special circuits | Rail-to-rail, high voltage op-amps |
If you make an audio circuit, you usually use the medium frequency range. For RF or fast data, you need high-speed op-amps with high gain bandwidth and slew rate.
Noise and Power
Noise and power use are important for many circuits. If you use sensor signals, you need an op-amp with low noise and high signal-to-noise ratio. This keeps your signal clean and correct. Precision op-amps have even lower noise and offset voltage. This is important for measurement and instrumentation circuits.

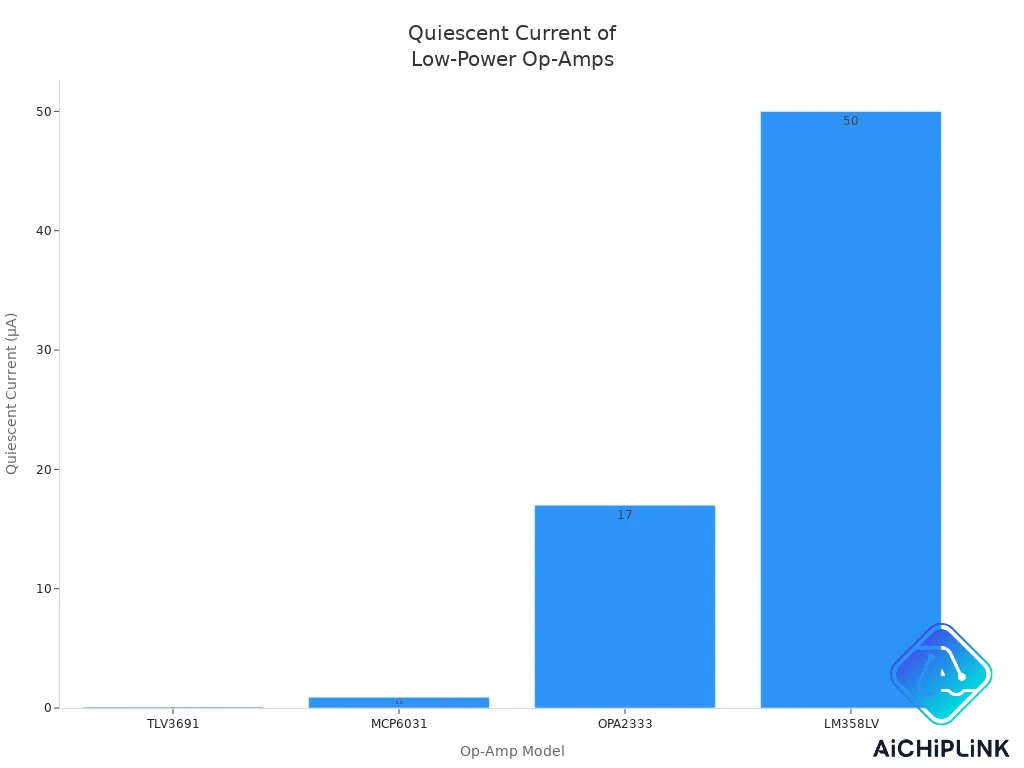

For battery-powered devices, pick op-amp models with low quiescent current. Here is a chart showing power use for some low-power op-amps:
Some op-amps, like the TLV3691, use as little as 75 nA. Others, like the OPA2333, give low power and precision. These features help your circuit last longer on batteries.
Tip: For sensor circuits, look for these features in your op-amp:
High input impedance
Low output impedance
Good gain control
Low noise and distortion
Instrumentation amplifier options for differential signals
When you pick op-amp devices, always balance noise, power, and performance. Check datasheets and notes for recommended circuits and best ways to use them. This helps you build circuits that work well for any application.
Key Op-Amp Specs
When you pick an op-amp, you should check some important specs. These specs change how your amplifier works in your project. Let’s look at the main specs you need to know.
Supply Voltage
Supply voltage shows what power your op-amp needs. Older op-amps used ±15 V for a wide range. Many new op-amps use lower voltages, like ±5 V or just +1.8 V. High-speed amplifiers often need lower voltages because of their design. If you use batteries, choose an op-amp that works with a single supply. The supply voltage you pick changes the output swing, speed, and power use.
Tip: Always match your op-amp’s supply voltage to your circuit. Lower voltages save power but can limit output range.
Output Current
Output current tells how much load your op-amp can drive. If your circuit powers a speaker, LED, or other device, you need enough output current. Most general op-amps drive small loads. Some special amplifiers can handle bigger currents. If you use a weak op-amp for a heavy load, you might see signal clipping or distortion.
-
Small sensors only need low output current.
-
Audio or motor circuits need higher output current.
Slew Rate
Slew rate shows how fast your op-amp’s output can change. If you use your amplifier in high-speed or video circuits, you need a high slew rate. A slow slew rate can make your signal look rounded or distorted. Fast signals need op-amps with high slew rates to keep up.
Note: If your oscilloscope shows fuzzy or slow signals, check your op-amp’s slew rate.
Offset Voltage
Offset voltage is a small difference at the output when both inputs are the same. In a perfect amplifier, this would be zero. Real op-amps always have some offset voltage. Precision op-amps can have offset voltages as low as 10 µV to 200 µV. Lower offset voltage means better accuracy. This is important for measurement and sensor circuits.
Here is a table showing offset voltage ranges for precision amplifiers:
| Input Offset Voltage Range | Application Context |
|---|---|
| ≤ 10 µV | Ultra-high accuracy measurement |
| 10 to 25 µV | Precision measurement |
| 25 to 150 µV | General precision applications |
| > 150 µV | Less critical applications |
If you want high accuracy, always check the offset voltage in the datasheet.
Bias Current
Bias current is a small current that goes into the input pins of your op-amp. Low bias current is important for high-resistance sensors or sources. High bias current can cause errors, especially with weak sources. FET-input and CMOS op-amps have very low bias current. This helps keep your signals correct.
Bandwidth
Bandwidth shows the range of frequencies your op-amp can handle. For most circuits, you want bandwidth much higher than your signal frequency. High-speed amplifiers have wide bandwidths. This is important for video, RF, and fast data circuits. The gain-bandwidth product (GBP) is a key number. It shows how much gain you get at a certain frequency.
Here is a table with important specs for high-speed signal processing:
| Specification | Description | Importance in High-Speed Signal Processing |
|---|---|---|
| Open Loop Gain (Avo) | High gain without feedback, usually 20,000 to 200,000; drops with frequency. | Shows amplification ability; gain drops at high frequency. |
| Input Impedance (ZIN) | Should be infinite to stop input current; real op-amps have small leakage. | High input impedance stops loading and signal distortion. |
| Output Impedance (ZOUT) | Should be zero for perfect voltage source; real op-amps have 100-20kΩ output impedance. | Low output impedance gives stable output and drives loads well. |
| Bandwidth (BW) | Frequency range where gain is above -3dB point; limited by gain-bandwidth product (GBP). | Needed for high-speed signals; higher bandwidth means faster signals. |
| Gain-Bandwidth Product (GBP) | Product of gain and bandwidth; sets frequency response and limits gain at high frequency. | Key for designing amplifiers with needed speed and gain. |
| Offset Voltage (VIO) | Should be zero output when inputs are equal; real op-amps have some offset voltage. | Changes accuracy and stability in high-speed circuits. |
| Common Mode Rejection Ratio (CMRR) | Ability to block common-mode signals; important for noise immunity. | Keeps signal clear in noisy places. |
If you build a video amplifier, you need high bandwidth and high slew rate to keep your signal sharp.
Noise
Noise is unwanted signal that mixes with your real signal. Low-noise op-amps are important for audio, sensor, and measurement circuits. Noisy amplifiers can make your signal lost or distorted. Look for op-amps with low noise specs in the datasheet, especially for small signals.
Tip: For best results, use an op-amp with low noise, high input impedance, and the right gain for your project.
When you check these specs, you make sure your amplifier works well in your circuit. Always compare datasheets and pick the op-amp that matches your needs for supply voltage, output current, slew rate, offset voltage, bias current, bandwidth, and noise.
Datasheet and Search Tools
Finding Specs
You can use online search tools to pick the right op-amp. These tools let you filter and compare different op-amp models. STMicroelectronics has a tool with sliders and boxes. You can set voltage, channels, and if it is for cars. The tool lets you sort by supply current. This helps you balance power and performance. You can compare many op-amps at once. The tool shows differences in bold, so you see what changes.
Analog Devices also has a search tool. It starts with 11 main parameters. You can add more and pick what matters most. You can type "best" to find top op-amps for a feature. The tool marks missing specs in red. You can click a model number to see the datasheet and more info. Analog Devices gives tables and signal chain tools. These help you learn about products for your project.
Tip: Try search tools from DigiKey, Mouser, Texas Instruments, and Analog Devices. They save time and help you find op-amps that fit your circuit.
Comparing Options
When you look at op-amp datasheets, check the key specs. These show if an op-amp is good for your circuit. Here are important things to look for:
-
Open-loop gain: Tells how much the op-amp can amplify.
-
Input impedance: High values mean less signal loss.
-
Output impedance: Low values help drive loads.
-
Frequency response and bandwidth: Show what signals the op-amp can handle.
-
Gain bandwidth product: Higher numbers mean better high-frequency work.
-
Power supply voltage range: Make sure it fits your circuit.
-
Power consumption: Lower is better for battery circuits.
-
Input offset voltage: Lower means more accurate results.
You should also look at example circuits in the datasheet. These show how to use the op-amp in real projects. They list things like gain-bandwidth product, input bias currents, offset voltage, and power supply effects. Some datasheets have reference designs and simulation models. These help you test the op-amp before you build your circuit.
| Parameter / Feature | Description / Role in Selection |
|---|---|
| Gain-bandwidth product | Needed for high-frequency and RF applications; sets max frequency range |
| Input bias currents | Important for low-noise and precision applications |
| Input offset voltage | Affects accuracy; some op-amps have offset nulling methods |
| Power supply effects | Includes rejection ratio and noise characteristics for stable operation |
| Noise characteristics | Important for sensitive analog designs |
| Reference designs and simulation | Help you validate performance before building |
| Sourcing and lifecycle data | Ensure you can buy the op-amp for a long time |
Note: Always check example circuits in the datasheet. You can find good op-amps for special needs, like low power or high frequency.
Op-Amp Selection Tips
Cost vs. Performance
When you pick an amplifier, you must balance price and how well it works. Fast amplifiers with low noise usually cost more money. If you want very accurate results, you may need to pay extra for special amplifiers with low offset voltage and steady gain. For easy sensor circuits, you can use general-purpose amplifiers that are not too expensive and work well enough. Always check if the amplifier gives you the gain and speed you need before buying it. If you choose a cheaper amplifier, make sure it does not hurt your circuit’s signal or how well it works.
Tip: Make sure the amplifier’s gain, speed, and accuracy fit your circuit. Do not pay for features you will not use.
Pinout and Package
The type of package your op-amp comes in changes how you design your board and how well it works. You can pick single, dual, or quad packages. Each one has its own effects:
-
Quad packages have four amplifiers that are all the same type. This can change how well your circuit works or how much it costs.
-
Crosstalk between amplifiers in one package can change offset voltage and cause signal problems.
-
Heat from one amplifier in a quad can affect the others and cause distortion.
-
Single or dual packages are easier to use and can save power.
-
Some supply voltages may need a certain package type.
Here is a table that shows how different package types change your board layout:
| Package Type | Layout Impact | Key Considerations |
|---|---|---|
| SOIC | Longer feedback paths can add unwanted signals and cause ringing. | You need to plan feedback paths carefully. |
| SOT-23 | Short feedback paths and better grounding. | Good for stopping unwanted signals. |
| LFCSP | Output and inverting input are close together, which lowers distortion. The exposed pad helps get rid of heat. | Makes layout simple and helps your circuit last longer. |
Note: Always check the pinout before you put the amplifier on your board. A wrong pinout can make your circuit stop working.
Common Mistakes
You can stop many problems by watching out for common mistakes when picking and using amplifiers:
-
Not giving a DC path for input bias current. This can make the voltage drift in amplifiers like integrators. Add a resistor to ground to fix this.
-
Forgetting about input common-mode voltage limits. If your input goes past the amplifier’s range, you can get signal problems or the circuit may not work.
-
Using feedback resistors that are too big. This can make your circuit unstable and cause it to oscillate, especially with fast amplifiers.
-
Leaving unused amplifiers open in multi-op packages. This can cause too much current use, noise, or the amplifier to get stuck. Connect unused amplifiers as voltage followers with inputs set to safe levels.
-
Using amplifiers as comparators. Amplifiers are not made for this job. It can make them slow to recover and act strangely.
It is also important to match your amplifier’s power supply to your circuit. If the power supply does not fit, outside signals can change the offset voltage and make the output act weird. This makes your circuit less reliable. Always design your power supply to stop interference and keep your amplifier working right.
Tip: Check that your amplifier’s supply voltage and output current are right before you finish your design. Make sure it can drive the load and handle any interference.
You should pick op-amp specs that fit your circuit. First, remove any parts that are not active. Then, choose by how the part mounts and its output type. After that, look at things like voltage and output current. Set limits for bandwidth, offset voltage, and bias current. Wait until the end to pick amplifier type and package. Use datasheets and trusted notes to compare your choices. Before you finish, check this simple list:
-
Make sure input resistance is high and output impedance is low.
-
Check that bandwidth works for both DC and AC signals.
-
Look at datasheet specs and sample circuits.
-
Make sure CAD models for your amplifier are correct.
Tip: Picking carefully helps your circuit work well and last longer.
FAQ
What is the most important op-amp spec for audio circuits?
You should look for low noise and low distortion. These specs help you get clear sound. Check the datasheet for noise figures and total harmonic distortion (THD).
Can I use any op-amp for sensor circuits?
No, you need high input impedance and low bias current. These features protect weak sensor signals. Always check the datasheet for input impedance and bias current values.
How do I know if my op-amp can handle high frequencies?
Check the gain-bandwidth product (GBP) and slew rate in the datasheet. High GBP and fast slew rate mean your op-amp works well with fast signals.
What should I do with unused op-amp pins?
You should connect unused op-amp pins to safe levels. Tie the input to ground or mid-supply. Connect the output to the input. This stops noise and unwanted signals.
