DB9 Connector vs RS232 Protocol: Key Differences, How They Work Together and How to Choose?

You might often hear about the DB9 Connector vs RS232, and while they are frequently used together, they are not the same thing. Many people confuse DB9 Connector vs RS232 because both are commonly found in various devices. Here are some common mistakes people make when discussing DB9 Connector vs RS232:

• The DB9 Connector is a physical connector with nine pins.

• RS232 is a communication protocol that defines how devices exchange data, not a connector itself.

• Some people mistakenly believe RS232 refers to the plug, but it actually describes the method of data transmission.

Today, most computers rely on USB or wireless connections, but the DB9 Connector vs RS232 debate is still relevant in industrial settings and machinery. Understanding the difference between DB9 Connector vs RS232 can help you avoid issues when setting up device connections.

Key Takeaways

• The DB9 connector is a plug with nine pins. RS232 is a group of rules for sending data.

• DB9 connectors are often found in old devices and factories. They help make strong serial connections.

• RS232 protocol lets devices talk to each other easily and steadily. But it is slower than new technology.

• Always make sure your devices work with the DB9 connector or RS232 protocol before you connect them.

• If your project needs fast data or must go far, use newer connection choices instead of DB9 and RS232.

DB9 Connector Overview

What Is a DB9 Connector?

You can find the db9 connector on old computers and machines. The connector has a D-shaped shell, so you plug it in the right way. Inside, there are nine pins or sockets. Some people call it a DE9 connector because it is the smallest in the D-sub group. The db9 interface lets you connect devices for serial communication. The db9 and rs232 often work together, but the db9 connector is just the hardware part.

Tip: The D-shape keeps you from plugging it in the wrong way.

Here are the main physical features:

• D-shaped shell helps with correct plugging

• Nine pins or sockets inside

• Small shell size (DE9)

Component	Material(s)
Conductive members	Copper or copper alloys
Insulating base	Strong plastics like polyamide or polycarbonate

DB9 Pinout

Each pin in the db9 interface has a special job. The db9 and rs232 use these pins to send and get data. You need to know the pinout to connect things the right way.

Pin Number	Function
1	Data Carrier Detect (DCD)
2	Received Data (RXD)
3	Transmitted Data (TXD)
4	Data Terminal Ready (DTR)
5	Ground (GND)
6	Data Set Ready (DSR)
7	Request To Send (RTS)
8	Clear To Send (CTS)
9	Ring Indicator (RI)

You will use these three pins the most:

• Pin 2: RX (Receive Data)

• Pin 3: TX (Transmit Data)

• Pin 5: GND (Ground)

DB9 Applications

The db9 connector is used in many fields. The db9 and rs232 are a common pair for serial communication. The db9 interface is found in communication ports, network ports, and electronic devices. You can see it in barcode scanners, controllers, and old computer parts.

Industry	Equipment Type
Communication	RS-232 ports
Networking	Network ports
Electronics	Different electronic devices

• Used a lot in communication ports

• Often found in network ports

• Used in many electronic devices

The db9 connector became popular because it is smaller than the DB25 connector. You can trust the db9 interface for strong connections in many places.

RS232 Protocol Explained

What Is RS232?

You can find rs232 in old computers and machines. The rs232 protocol is a rule for sending data one bit at a time. It helps two devices talk to each other in a simple way. You use rs232 when you want easy and steady data sharing. The protocol does not need a certain connector, but db9 and rs232 are often used together.

Note: The rs232 protocol became popular because it works with many devices and is simple to use.

Some things make rs232 stand out from other serial protocols:

• It is simple and needs only basic hardware.

• It is reliable and has worked for many years.

• It gives steady timing for sending data.

• Almost all makers support rs232.

• Many old machines still use rs232.

• It can handle noise better than TTL or CMOS.

• You get fast data sharing without waiting for extra steps.

RS232 Communication

With rs232, you send data using voltage signals. The protocol sets clear voltage levels for sending data. This helps devices talk without mistakes.

Logic Level	Voltage Range
Logic Zero	+3 to +15 volts
Logic One	-3 to -15 volts

If the voltage is between -3 and +3 volts, it is not valid for rs232. This big difference helps stop errors when sending data. That is why db9 and rs232 are often used together.

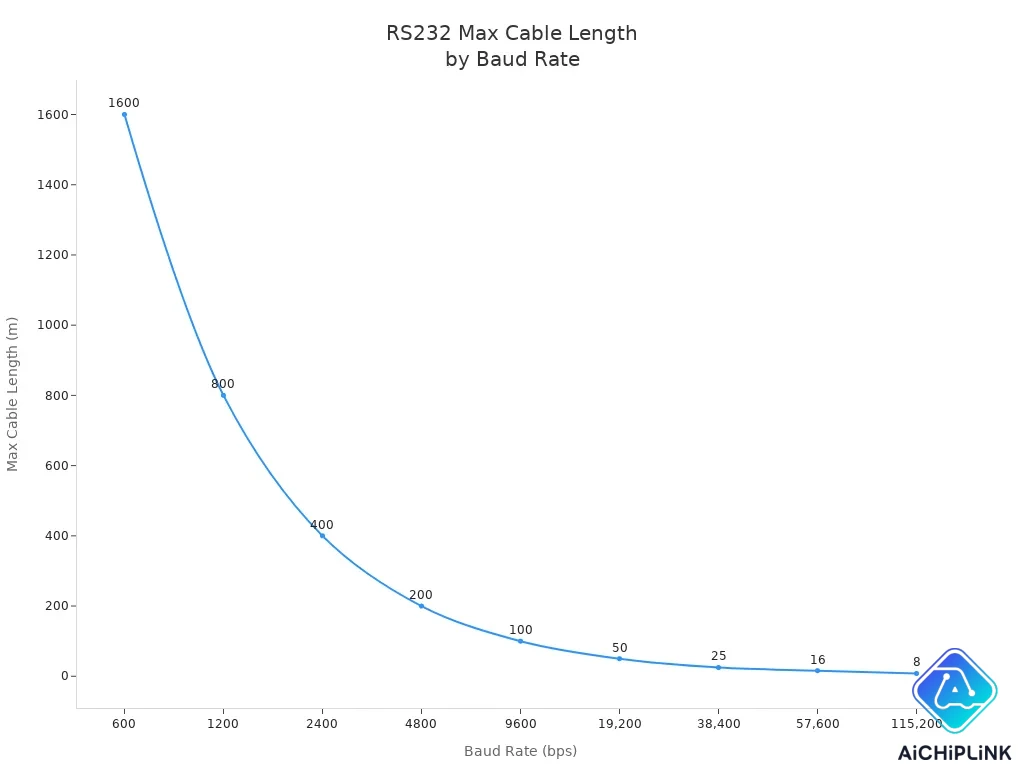

The length of the cable changes how well rs232 works. Longer cables make data move slower. Here is a table that shows the longest cable and the fastest speed for rs232:

Maximum Cable Length (meters)	Maximum Baud Rate*
1600	600
800	1200
400	2400
200	4800
100	9600
50	19,200
25	38,400
16	57,600
8	115,200

You can see that if you want faster data, you need a shorter cable for rs232 to work well.

RS232 Uses

You can find rs232 in many jobs. It is still used to connect devices that need serial data. Here are some common uses:

• In factories, machines use rs232 to talk and check quality.

• In telecom, modems and switches use rs232 to send data.

• In hospitals, medical tools use rs232 for correct results.

• In stores, barcode scanners and cash registers use serial links.

• In planes, navigation and radios use rs232 to share data.

• In cars, mechanics use rs232 to test and check systems.

You often see db9 and rs232 together in these places. This pairing gives you a strong and easy way to send serial data.

DB9 Connector vs RS232: Key Differences

Physical vs Protocol

When you look at db9 connector and rs232, they are not the same. The db9 connector is a real part you can touch. It has a D-shape and nine pins inside. You use it to connect two devices for serial data. The rs232 protocol is not something you can hold. It is a set of rules for sending and getting data. Rs232 helps devices talk to each other the right way.

Here is a table that shows how db9 and rs232 are not alike:

Category	DB9 Connector	RS232 Protocol
Connector Type	D-subminiature, 9-pin (DE-9)	Not a connector, but a protocol
Pin Count	9 pins	9 pins (when using DB9 for RS232)
Surge Protection	Built-in surge suppression	Not defined by protocol
Chassis Protection	Metal shell for EMI and ground	Not specified
Durability	High mechanical endurance	Depends on hardware
Voltage Range	Not defined by DB9	±3V to ±15V
Speed (Data Rate)	Not defined by DB9	Up to 20 kbps
EMI Resistance	Metal shielding	Voltage levels resist EMI

You often use db9 and rs232 together in many machines. The db9 connector gives a strong link. The rs232 protocol makes sure data moves safely. When you compare rs232 and db9, remember one is hardware and one is rules for data.

Compatibility

You need to check if db9 and rs232 will work with your devices. The db9 connector is made for rs232 jobs. You see it on old computers and machines. It matches the pin layout for rs232, so you can connect things easily. Other connectors may not work with rs232, so you must check before plugging in.

Here is a table that shows how db9 compares to other connectors for rs232:

Feature	DB9 Connector	Other Connectors
Compatibility	Widely recognized for RS232 devices	Varies, may not support RS232
Physical Interface	Designed for RS232 pin configuration	May not be tailored for RS232
Application	Common in legacy and industrial systems	Depends on the connector type
Data Transmission Reliability	Reliable point-to-point communication	Varies based on design

You might have problems if you use db9 and rs232 in new devices. The db9 connector can be too big for small spaces. The pins can break if you are not careful. The rs232 protocol is slow and does not work well with long cables. Some new devices do not have db9 or rs232 ports.

Here are some common problems you might see:

• The db9 connector may not last in rough places.

• The big size can make it hard to fit in small spots.

• Pins can break or bend, which causes trouble.

• Slow speeds over long cables can stop data.

• Some new devices do not have db9 or rs232 ports.

You should always check your device details to make sure db9 and rs232 will work for you.

Limitations

You need to know what db9 and rs232 cannot do before you pick them. The db9 connector is strong, but it is hard to use in small spaces. The pins can break if you push too hard. The rs232 protocol is slow compared to new ways to send data. You might see delays or errors if you use long cables or work near loud machines.

Here is a table that lists the main limits:

Limitation	Description
Size Constraints	DB9 connectors are hard to use in tight spaces.
Risk of Damage	Exposed pins can break or bend easily.
Slow Communication Speeds	RS232 is slow, especially over long cables.
Susceptibility to Signal Degradation	Signals can weaken or get noisy over long distances.

You might see these problems when you use db9 and rs232:

• Serial data is slow and can freeze your computer if the cable is long.

• RS232 is not made for fast data, so you may need something else for quick jobs.

• Noise from machines can mess up your signal and cause errors.

• If you use the wrong pin layout, your devices may not talk.

• Bad matches can make your signal weak or unclear.

You should think about these limits before you pick db9 connector or rs232 for your setup. If you need fast and strong data over long cables, you may want to try newer choices.

DB9 and RS232 Together

Integration

You often see db9 and rs232 working side by side in real-world systems. Many factories and industrial sites use this pair to connect machines, sensors, and controllers. The db9 connector vs rs232 debate comes up when you need to choose the right setup for your devices. In most cases, the db9 connector acts as the physical link, while rs232 sets the rules for how data moves between devices.

Here are some ways you might use db9 and rs232 together in industrial automation:

• Connect a programmable logic controller (PLC) to a computer for monitoring.

• Link barcode scanners to point-of-sale systems.

• Attach sensors to data loggers for tracking machine performance.

Each pin on the db9 connector has a job. For example:

1. Pin 2 sends data (TXD).

2. Pin 3 receives data (RXD).

3. Pin 5 provides the ground (GND).

You can rely on db9 and rs232 for simple, point-to-point serial communication. The db9 connector vs rs232 question matters most when you need to match the right hardware with the right protocol. In embedded systems, you might use db9 for easy maintenance and wide compatibility. Sometimes, you may need a different connector if space is tight or the environment is harsh.

Tip: Always check if your device supports db9 and rs232 before setting up your serial connection.

Here is a table that shows what you should consider when integrating db9 and rs232:

Aspect	Details
Compatibility	DB9 connectors work well with most rs232 devices.
Physical Size	DB9 is compact, but smaller connectors may fit better in tight spaces.
Environmental Factors	Use more durable connectors if you work in harsh conditions.
Performance Needs	RS232 works best for low-speed, short-distance serial communication.
Legacy vs. Modern	DB9 and rs232 are great for older systems, but new tech may need more.

You get many advantages with db9 and rs232. The design is simple, and you can find parts easily. Maintenance is easy, and the setup works well for many industrial jobs. However, the db9 connector can wear out, and rs232 has limits in speed and distance.

Troubleshooting

You may run into problems when using db9 and rs232 together. Most issues come from cable connections, pin-outs, or mismatched settings. If your serial devices do not talk to each other, start by checking the basics.

Here are the most common troubleshooting steps:

1. Check the cable connections. Make sure you use the correct pin-out for db9 and rs232.

2. Match the baud rate and other settings on both devices.

3. If you use a USB to rs232 adapter, make sure the driver works with your system.

You can use special tools to test your db9 and rs232 setup. Here is a table with some helpful diagnostic tools:

Tool/Method	Description
RS-232 Loopback Plug	Checks if your serial port works by looping signals back.
Hardware Diagnostic Software	Tests rs232 and db9 connections using your computer.
Serial Protocol Analyzer	Looks at the format of your serial communication.
Data Logger Software	Records data during serial tests for later review.
Test Automation Tool	Runs automatic tests on your serial connections.

Note: If you keep having trouble, try swapping cables or testing with another device. Sometimes, a simple change can fix the problem.

You can avoid many issues by following best practices. Always use the right cable and connector for your setup. Double-check your pin-out and settings before you start. If you need higher speed or longer distance, you may want to look beyond db9 and rs232.

How to Choose: RS232 vs DB9 for Your Needs

Requirements

You need to look at your project’s needs before you pick between rs232 vs db9. Start by thinking about where you will use the connection. If you work in a factory or a place with lots of dust and vibration, a standard db9 connector may not last long. You might need a tougher connector for harsh environments. Next, check how far your data needs to travel and how fast you want it to move. RS232 works well for short distances and slow speeds. If you need faster data or longer cables, you should look at other options.

Here is a table to help you compare the main factors:

Factor	Description
Environmental Factors	In harsh environments, standard db9 connectors may not be rugged enough, so you need more durable options.
Performance Needs	RS232 supports short distances and low-speed data transmission. For higher speeds or longer runs, consider alternatives.
Legacy vs. Modern Systems	RS232 and db9 ensure compatibility with older systems. Newer designs may benefit from modern connectors.

You should also think about the devices you want to connect. If you work with older machines, db9 and rs232 will likely fit your needs. For new devices, you may need to check if they support these connections.

Selection Tips

You can make a smart choice by following a few simple tips. First, look at your budget. Both db9 connectors and the rs232 protocol are affordable. You save money because db9 connectors are easy to find and simple to install. RS232 does not need much hardware or software, so it keeps costs low.

• DB9 connectors are cost-effective due to their widespread availability and simple design, which lowers installation and maintenance costs.

• RS232 protocol is recognized for its low hardware and software overhead, making it suitable for simple and cost-effective communication tasks.

• Both db9 connectors and RS232 protocol are often chosen for their affordability in various applications.

You should match the connector and protocol to your application. If you need a strong connection for an old computer or industrial machine, db9 and rs232 work well. For new projects, you may want to use USB or wireless options. Always check the pinout and make sure your devices use the same settings. If you need to fit a connector in a small space, look for a smaller version of db9 or a different type.

Tip: Test your setup before you install it. This helps you catch problems early and saves time.

You can rely on db9 and rs232 for simple, low-cost, and reliable connections. If your needs change, you can switch to newer technology later.

You have learned DB9 connectors are hardware you can touch. RS232 is a way devices talk to each other. Always look at your device details before you decide.

• Check if your devices use RS232 to send data.

• See if a DB9 connector fits your device’s space.

• Think about how fast and strong your system needs to be.

Emerging Technology	Impact on DB9 and RS232
IoT, AI, Edge Computing	DB9 and RS232 help old devices work with new tech.
5G, Reliability	DB9 cables are cheap and strong for many jobs.

First, figure out what you need for your project. Look up choices and try your setup to pick the best one for your job.
