ST VNQ5E050MKTR-E

Manufacturer No:

VNQ5E050MKTR-E

Manufacturer:

Package:

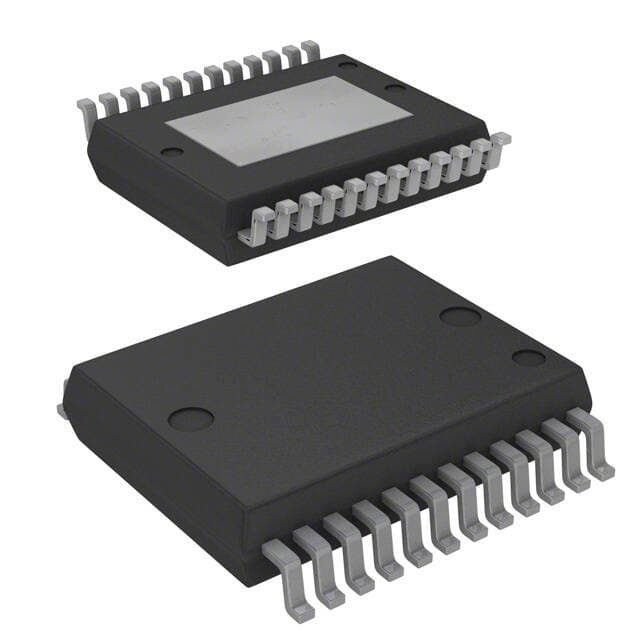

24-SOP (0.295, 7.50mm Width) Exposed Pad

Description:

N-Channel 0.8mm PMIC VIPower? Series VNQ5E050 24 Pin 13V 24-SOP (0.295, 7.50mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VNQ5E050MKTR-E information

ST VNQ5E050MKTR-E technical specifications, attributes, parameters and parts with similar specifications to ST VNQ5E050MKTR-E.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 7 months ago)

Factory Lead Time
18 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
24-SOP (0.295, 7.50mm Width) Exposed Pad

Number of Pins
24

Operating Temperature
-40°C~150°C TJ

Packaging
Tape & Reel (TR)

Series
VIPower?

JESD-609 Code
e3

Feature
Auto Restart

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
24

ECCN Code
EAR99

Resistance
50mOhm

Terminal Finish
Matte Tin (Sn) - annealed

Subcategory
Peripheral Drivers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
13V

Terminal Pitch
0.8mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
VNQ5E050

Pin Count
24

Number of Outputs
4

Qualification Status
Not Qualified

Output Type
N-Channel

Max Output Current
27A

Operating Supply Voltage
28V

Interface
On/Off

Nominal Supply Current
8mA

Output Configuration
High Side

Voltage - Supply (Vcc/Vdd)
Not Required

Input Type
Non-Inverting

Switch Type
General Purpose

Output Current per Channel
19A

Ratio - Input:Output
1:1

Voltage - Load
4.5V~28V

Driver Number of Bits
4

Fault Protection
Current Limiting (Fixed), Over Temperature, Over Voltage

Turn On Time
20 µs

Rds On (Typ)
50m ? (Max)

Turn Off Time
35 µs

Built-in Protections
TRANSIENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

Download datasheets and manufacturer documentation for ST VNQ5E050MKTR-E.

Datasheets:

stmicroelectronics-vnq5e050mke-datasheets-0336.pdf

VNQ5E050MKTR-E Overview

As a result, it is packaged in the form of a Tape & Reel (TR).This package is included in 24-SOP (0.295, 7.50mm Width) Exposed Pad.Mounting type Surface Mount is selected for the LED driving board.A General Purpose switch type is owned by it.In order to guarantee reliable performance, the temperature should be set to -40°C~150°C TJ.The LED driver is equipped with 4 outputs.In order to operate, it requires a voltage supply of Not Required.A maximum output voltage of N-Channel volts can be achieved by this LED driver.It is equipped with Auto Restart features.It comes under the family of VNQ5E050.A total of 24 terminations have been recorded.The operation is performed through the 24 pins.Currently, the lighting driver has a total of 1 functions.This operation requires the maximum output current to be decreased to 27A.High efficiency is possible when the supply voltage is set to 13V.Surface Mount is mounted in the way.24 pins are connected to it in total.Currently, the LED driving board has 50mOhm resistance.It is part of the VIPower? series.A self-contained econtainer holding Peripheral Drivers capacity contains this lighting driver.It is recommended to set the supply voltage to 28V for optimum efficiency.

VNQ5E050MKTR-E Features

Supplied from 13V
Resistance of 50mOhm

VNQ5E050MKTR-E Applications

There are a lot of STMicroelectronics
VNQ5E050MKTR-E Power Switches ICs applications.

PC Card Hot Swap
Storage Drives
Portable/Handheld Devices
Wireless/Networking Cards
Low Voltage I/O System Power
Hard Disk Drives
Solid-State Drives
Hot Swap
HDD and SSD
Hot Swap
