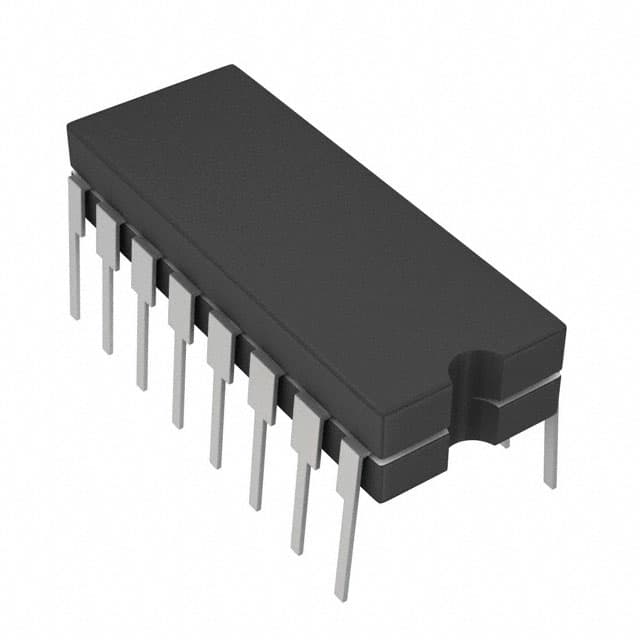

ADI LT1524J

Manufacturer No:

LT1524J

Manufacturer:

ADI

Package:

CDIP

Description:

16 Terminals DC to DC converter IC SWITCHING CONTROLLER

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LT1524J information

ADI LT1524J technical specifications, attributes, parameters and parts with similar specifications to ADI LT1524J.

Type
Parameter

Package / Case
CDIP

Surface Mount
NO

Published
2012

JESD-609 Code
e0

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

HTS Code
8542.39.00.01

Subcategory
Switching Regulator or Controllers

Technology
BIPOLAR

Terminal Position
DUAL

Terminal Form
THROUGH-HOLE

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Terminal Pitch
2.54mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
16

JESD-30 Code
R-GDIP-T16

Qualification Status
Not Qualified

Operating Temperature (Max)
125°C

Operating Temperature (Min)
-55°C

Input Voltage-Nom
20V

Analog IC - Other Type
SWITCHING CONTROLLER

Input Voltage (Min)
8V

Control Mode
VOLTAGE-MODE

Output Current-Max
0.1A

Input Voltage (Max)
40V

Control Technique
PULSE WIDTH MODULATION

Supply Current-Max (Isup)
10mA

Switcher Configuration
PUSH-PULL

Switching Frequency-Max
300kHz

Length
19.43mm

Height Seated (Max)
5.08mm

Width
7.62mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI LT1524J.

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

LT1524J Overview

In the CDIP package, the switching controller meets most application requirements. A SWITCHING CONTROLLER analog integrated circuit is connected to the switch converters. DUAL are the position of the terminal of the switching converters. Various 16 terminations. This dc dc converter ic uses a variety of control techniques, including PULSE WIDTH MODULATION. There is a DC switcher's nominal voltage of 20V. Specifically, switching converter falls under the Switching Regulator or Controllers category. It is recommended that the dc dc voltage regulator's minimum input voltage be 8V. The dc to dc regulator can only accept 40V input voltage. As a result, switching converter outputs current to the greatest value possible (0.1A). 1 functions (s) are included in the switch converters. Designing voltage regulators switchings with 16 pins. It is important that the controller is supplied with 10mA more than 10mA volts of current. It is possible for this switching controller to switch at a frequency of 300kHz. 125°C degrees is the highest switching controller's ambient temperature limit. dc to dc voltage regulators should have -55°C temperatures at the bottom.

LT1524J Features

PULSE WIDTH MODULATION

LT1524J Applications

There are a lot of Linear Technology/Analog Devices
LT1524J DC to DC converter applications.

Network technology
Automation technology
CMM
Various precision measuring instruments
Various precision measuring detectors
Flaw detection equipment
Balance equipment
Industrial robots
Industrial controllers
Die casting equipment
