ADI LT6703HDC-2#TRPBF

Manufacturer No:

LT6703HDC-2#TRPBF

Manufacturer:

ADI

Package:

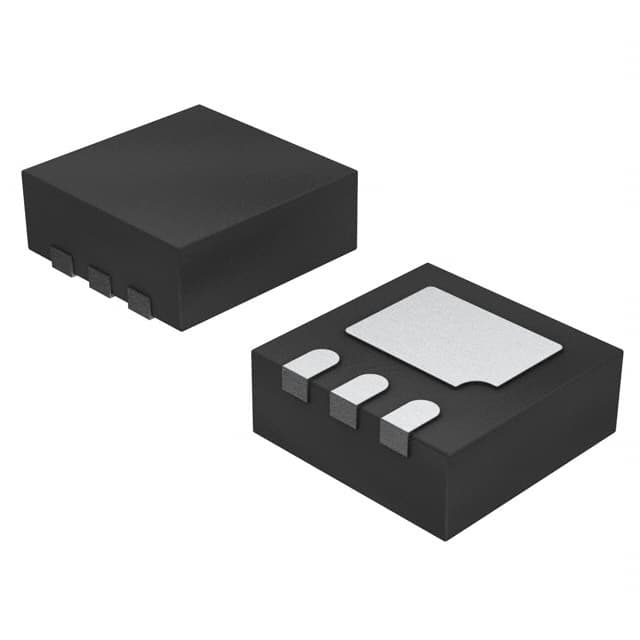

3-WFSFN Exposed Pad

Description:

Surface Mount Tape & Reel (TR) 29000 ns ?s Linear Comparators 2009

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LT6703HDC-2#TRPBF information

ADI LT6703HDC-2#TRPBF technical specifications, attributes, parameters and parts with similar specifications to ADI LT6703HDC-2#TRPBF.

Type
Parameter

Factory Lead Time
10 Weeks

Mounting Type
Surface Mount

Package / Case
3-WFSFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~125°C

Packaging
Tape & Reel (TR)

Series
Over-The-Top®

Published
2009

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

ECCN Code
EAR99

Type
General Purpose

Terminal Finish
Matte Tin (Sn)

Subcategory
Comparator

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
LT6703

JESD-30 Code
S-PDSO-N3

Qualification Status
Not Qualified

Output Type
Open Collector

Number of Elements
1

Response Time
29000 ns

Voltage - Supply, Single/Dual (±)
1.4V~18V

Current - Quiescent (Max)
17?A

Current - Input Bias (Max)
0.01?A @ 18V

Hysteresis
13.5mV

Propagation Delay (Max)
29?s

Length
2mm

Height Seated (Max)
0.8mm

Width
2mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI LT6703HDC-2#TRPBF.

Datasheets:

lineartechnologyanalogdevices-lt6703idc3trmpbf-datasheets-2912.pdf

LT6703HDC-2#TRPBF Overview

Electronic comparator is packaged in 3-WFSFN Exposed Pad for convenient transportation.This comparator is of the Open Collector output type.Ready for shipping in Tape & Reel (TR) package.You can find 3 terminals of the comparator.Other Comparator like the device play a important role in the industry.Supplied by 5V voltage, the comparator can accomplish the many demanding tasks.Speaking of types, this is a typical General Purpose comparator.This is a 1 element comparator.The pinout of the component starts from 3 pins it has.Surface Mount universial mout for easy adapting.The operating temperature should be set to -40°C~125°C to avoid mal-function.Try search LT6703 to get more pin-to-pin solutions for your special needs.The part is from Over-The-Top® comparator series.

LT6703HDC-2#TRPBF Features

Open Collector output capability
General Purpose IC
Employing 1 elements
Operates under -40°C~125°C

LT6703HDC-2#TRPBF Applications

There are a lot of Linear Technology/Analog Devices
LT6703HDC-2#TRPBF linear comparators applications.

Mobile Communications
Notebooks and PDAs
Battery-Powered Electronics
General-Purpose Portable Devices
General-Purpose, Low-Voltage Applications
Self-diagnostics
Lithium ion battery monitoring
Battery management and protection
Current and voltage sensing
Analog front end
