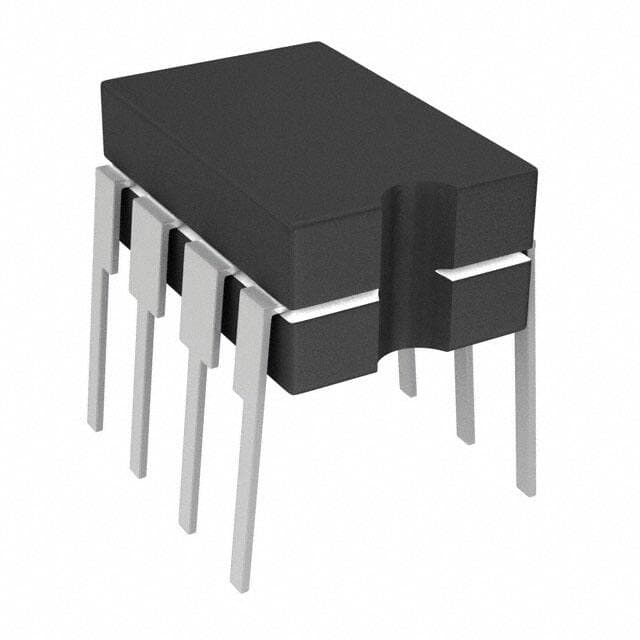

Microchip TC7662AIJA
Manufacturer No:
TC7662AIJA
Manufacturer:
Package:
8-CDIP (0.300, 7.62mm)
Description:
8 Terminals 3V 8-Pin TC7662A DC DC Voltage Regulator SWITCHED CAPACITOR CONVERTER 1 Outputs 12kHz Tube 40mA 8-CDIP (0.300, 7.62mm)
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
TC7662AIJA information
Microchip TC7662AIJA technical specifications, attributes, parameters and parts with similar specifications to Microchip TC7662AIJA.
- Type
- Parameter
- Factory Lead Time
- 6 Weeks
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- 8-CDIP (0.300, 7.62mm)
- Number of Pins
- 8
- Operating Temperature
- -25°C~85°C TA
- Packaging
- Tube
- Published
- 2002
- JESD-609 Code
- e1
- Pbfree Code
- no
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 8
- ECCN Code
- EAR99
- Terminal Finish
- Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
- Subcategory
- Other Analog ICs
- Max Power Dissipation
- 800mW
- Technology
- CMOS
- Terminal Position
- DUAL
- Terminal Pitch
- 2.54mm
- Base Part Number
- TC7662A
- Function
- Ratiometric
- Number of Outputs
- 1
- Output Voltage
- -18V
- Voltage - Input (Min)
- 3V
- Input Voltage-Nom
- 15V
- Max Supply Voltage
- 18V
- Min Supply Voltage
- 3V
- Analog IC - Other Type
- SWITCHED CAPACITOR CONVERTER
- Nominal Supply Current
- 510μA
- Output Configuration
- Positive or Negative
- Current - Output
- 40mA
- Output Power
- 800mW
- Voltage - Output (Min/Fixed)
- -Vin 2Vin
- Topology
- Charge Pump
- Logic Function
- Inverting
- Frequency - Switching
- 12kHz
- Synchronous Rectifier
- No
- Switcher Configuration
- DOUBLER INVERTER
- Length
- 9.5mm
- Width
- 6.73mm
- RoHS Status
- RoHS Compliant
