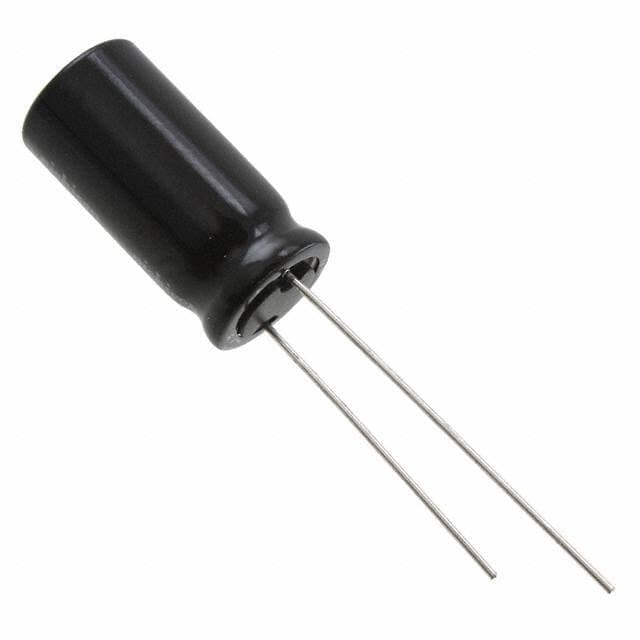

NICHICON UVP1H101MPD

Manufacturer No:

UVP1H101MPD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UVP 100?F Capacitor ±20% Bulk Through Hole 265mA 0.394Dia 10.00mm -40°C~85°C Bi-Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UVP1H101MPD information

NICHICON UVP1H101MPD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UVP1H101MPD.

Type
Parameter

Factory Lead Time
17 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Number of Pins
2

Dielectric Material
Aluminium

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
UVP

Published
2009

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
General Purpose

Capacitance
100?F

Voltage - Rated DC
50V

Lead Pitch
5mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.197 5.00mm

Lifetime @ Temp
2000 Hrs @ 85°C

Leakage Current
150?A

Ripple Current
265mA

Polarization
Bi-Polar

Life (Hours)
2000 hours

Ripple Current @ Low Frequency
265mA @ 120Hz

Ripple Current @ High Frequency
397.5mA @ 10kHz

Dissipation Factor
0.14 %

Diameter
10mm

Height
20mm

Height Seated (Max)
0.866 22.00mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UVP1H101MPD.

Datasheets:

nichicon-uvp1h100med1td-datasheets-0541.pdf

nichicon-uvp1h101mpd-datasheets-1051.pdf

UVP1H101MPD Overview

A full charge means 397.5mA @ 10kHz ripple current.During the lowest charge, ripple current is 265mA @ 120Hz.You should keep the seated height (Max) below 0.866 22.00mm.There is a dissipation factor of 0.14 %.The capacitor operates from 50V DC voltage.When operating at -40°C~85°C, high efficiency can be achieved.

UVP1H101MPD Features

the ripple current is 397.5mA @ 10kHz.
the ripple current is 265mA @ 120Hz.
a dissipation factor of 0.14 %
voltage - Rated DC of 50V
an operating temperature of -40°C~85°C

UVP1H101MPD Applications

There are a lot of Nichicon
UVP1H101MPD applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
