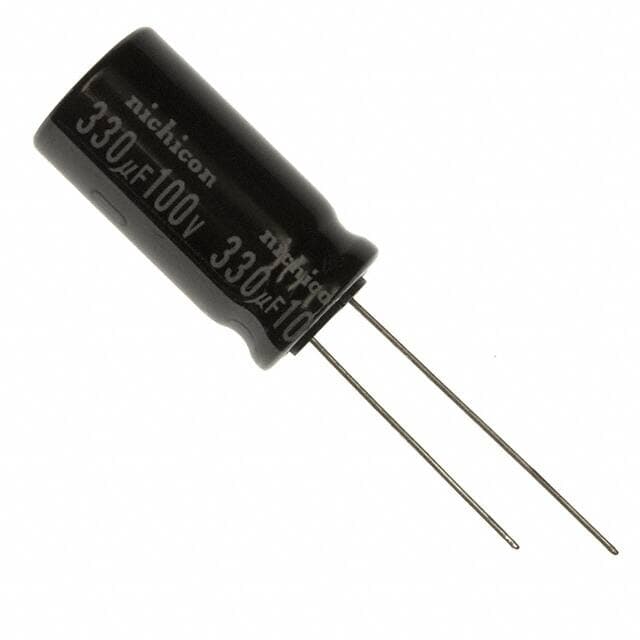

NICHICON UVZ2A331MHD1TO

Manufacturer No:

UVZ2A331MHD1TO

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UVZ 330?F Capacitor ±20% Tape & Box (TB) Through Hole 540mA 0.492Dia 12.50mm -55°C~105°C Polar 5.0038mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UVZ2A331MHD1TO information

NICHICON UVZ2A331MHD1TO technical specifications, attributes, parameters and parts with similar specifications to NICHICON UVZ2A331MHD1TO.

Type
Parameter

Factory Lead Time
19 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Number of Pins
2

Dielectric Material
Aluminium

Operating Temperature
-55°C~105°C

Packaging
Tape & Box (TB)

Series
UVZ

Published
2010

Size / Dimension
0.492Dia 12.50mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
General Purpose

Capacitance
330?F

Voltage - Rated DC
100V

Lead Pitch
5.0038mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.197 5.00mm

Lifetime @ Temp
1000 Hrs @ 105°C

Leakage Current
0.99mA

Ripple Current
540mA

Polarization
Polar

Life (Hours)
1000 hours

Tan Delta
0.08

Ripple Current @ Low Frequency
540mA @ 120Hz

Ripple Current @ High Frequency
810mA @ 10kHz

Lead/Base Style
Straight

Diameter
12.5mm

Height
25mm

Height Seated (Max)
1.063 27.00mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for NICHICON UVZ2A331MHD1TO.

UVZ2A331MHD1TO Overview

At full charge, the ripple current is 810mA @ 10kHz.The ripple current is 540mA @ 120Hz at the lowest charge.It is recommended to keep the height seated (Max) below 1.063 27.00mm.The capacitor operates at a voltage of 100V - Rated DC.For high efficiency, the operating temperature should be -55°C~105°C.

UVZ2A331MHD1TO Features

the ripple current is 810mA @ 10kHz.
the ripple current is 540mA @ 120Hz.
voltage - Rated DC of 100V
an operating temperature of -55°C~105°C

UVZ2A331MHD1TO Applications

There are a lot of Nichicon
UVZ2A331MHD1TO applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
