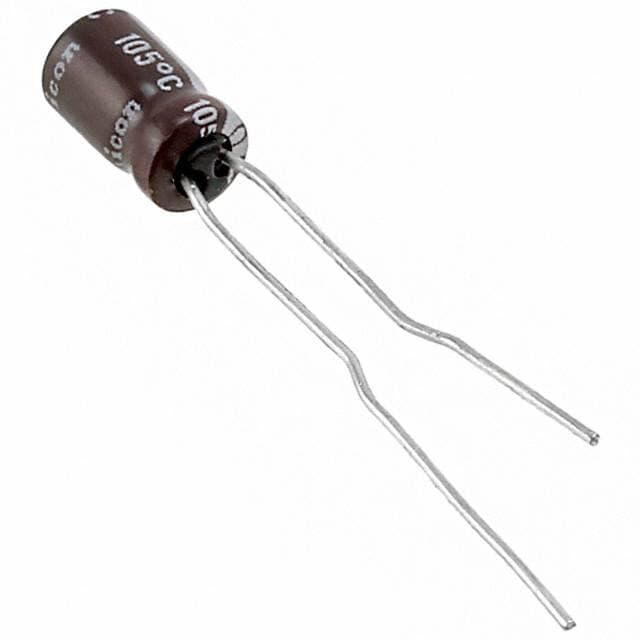

NICHICON UPW0J102MPD
NICHICON UPW0J102MPD

NICHICON UPW0J102MPD

Manufacturer No:

UPW0J102MPD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UPW 1000?F Capacitor ±20% Bulk Through Hole 755mA 0.394Dia 10.00mm -55°C~105°C Polar 5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UPW0J102MPD information

NICHICON UPW0J102MPD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UPW0J102MPD.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • PCB, Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Terminal Shape
  • WIRE
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Bulk
  • Series
  • UPW
  • Published
  • 2009
  • Size / Dimension
  • 0.394Dia 10.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • HTS Code
  • 8532.22.00
  • Capacitance
  • 1000?F
  • Voltage - Rated DC
  • 6.3V
  • Lead Pitch
  • 5mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • ESR (Equivalent Series Resistance)
  • 180mOhm
  • Lead Spacing
  • 0.197 5.00mm
  • Lead Diameter
  • 600 ?m
  • Voltage
  • 6.3V
  • Lifetime @ Temp
  • 5000 Hrs @ 105°C
  • Leakage Current
  • 189?A
  • Ripple Current
  • 755mA
  • Polarization
  • Polar
  • Life (Hours)
  • 5000 hours
  • Impedance
  • 90mOhm
  • Ripple Current @ Low Frequency
  • 566.25mA @ 120Hz
  • Ripple Current @ High Frequency
  • 755mA @ 100kHz
  • Dissipation Factor
  • 0.22 %
  • Diameter
  • 10mm
  • Height
  • 12.5mm
  • Height Seated (Max)
  • 0.492 12.50mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for NICHICON UPW0J102MPD.

Datasheets:

UPW0J102MPD Overview


As far as the ripple current is concerned, it is 755mA @ 100kHz at full charge.The ESR (Equivalent Series Resistance) of 180mOhm needs to be provided to fully play its function.As far as the ripple current is concerned, it is 566.25mA @ 120Hz at the lowest charge.The height seated (Max) should be kept below 0.492 12.50mm.It operates from a 0.22 % dissipation factor.This capacitor operates from a voltage - Rated DC of 6.3V.The operating temperature should be maintained at -55°C~105°C for high efficiency.
