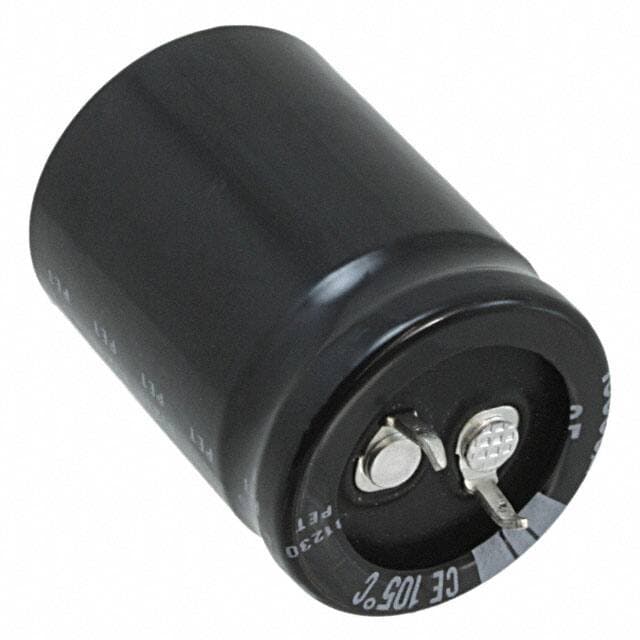

NICHICON LGU1J272MELA
NICHICON LGU1J272MELA

NICHICON LGU1J272MELA

Manufacturer No:

LGU1J272MELA

Manufacturer:

NICHICON

Package:

Radial, Can - Snap-In

Description:

LGU 2700?F Capacitor ±20% Bulk Through Hole 2.11A 0.984Dia 25.00mm -40°C~105°C Polar 10mm Radial, Can - Snap-In

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LGU1J272MELA information

NICHICON LGU1J272MELA technical specifications, attributes, parameters and parts with similar specifications to NICHICON LGU1J272MELA.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can - Snap-In
  • Dielectric Material
  • ALUMINUM (WET)
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • LGU
  • Published
  • 2009
  • Size / Dimension
  • 0.984Dia 25.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Feature
  • General Purpose
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Snap in
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • HTS Code
  • 8532.22.00
  • Capacitance
  • 2700?F
  • Voltage - Rated DC
  • 63V
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Spacing
  • 0.394 10.00mm
  • Lifetime @ Temp
  • 3000 Hrs @ 105°C
  • Leakage Current
  • 1.23mA
  • Ripple Current
  • 2.11A
  • Polarization
  • Polar
  • Life (Hours)
  • 3000 hours
  • Tan Delta
  • 0.25
  • Ripple Current @ Low Frequency
  • 2.07A @ 120Hz
  • Ripple Current @ High Frequency
  • 2.4265A @ 50kHz
  • Diameter
  • 25mm
  • Height
  • 35mm
  • Height Seated (Max)
  • 1.457 37.00mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON LGU1J272MELA.

Datasheets:

LGU1J272MELA Overview


During full charge, the ripple current is 2.4265A @ 50kHz.When the battery is charged to its lowest level, the ripple current is 2.07A @ 120Hz.You should keep the height of the seat (Max) below 1.457 37.00mm.Rated DC voltage of 63V is used to operate this capacitor.If you want high efficiency, you should keep the operating temperature at -40°C~105°C.

LGU1J272MELA Features


the ripple current is 2.4265A @ 50kHz.
the ripple current is 2.07A @ 120Hz.
voltage - Rated DC of 63V
an operating temperature of -40°C~105°C


LGU1J272MELA Applications


There are a lot of Nichicon
LGU1J272MELA applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
