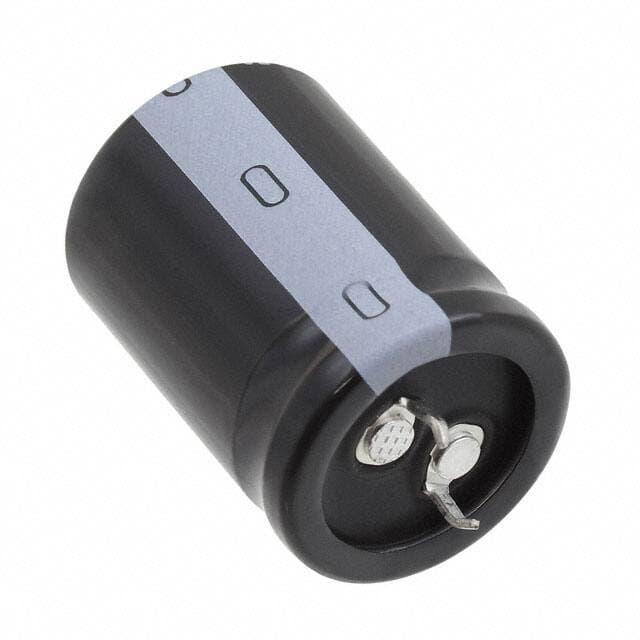

NICHICON LGU2C821MELA
Manufacturer No:
LGU2C821MELA
Manufacturer:
Package:
Radial, Can - Snap-In
Description:
LGU 820?F Capacitor ±20% Bulk Through Hole 2.04A 0.984Dia 25.00mm -40°C~105°C Polar 10mm Radial, Can - Snap-In
Quantity:
Delivery:




Payment:






In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
LGU2C821MELA information
NICHICON LGU2C821MELA technical specifications, attributes, parameters and parts with similar specifications to NICHICON LGU2C821MELA.
- Type
- Parameter
- Factory Lead Time
- 19 Weeks
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- Radial, Can - Snap-In
- Dielectric Material
- ALUMINUM (WET)
- Operating Temperature
- -40°C~105°C
- Packaging
- Bulk
- Series
- LGU
- Published
- 2009
- Size / Dimension
- 0.984Dia 25.00mm
- Tolerance
- ±20%
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- Termination
- Snap in
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin (Sn)
- Applications
- General Purpose
- HTS Code
- 8532.22.00
- Capacitance
- 820?F
- Voltage - Rated DC
- 160V
- Lead Pitch
- 10mm
- Lead Spacing
- 0.394 10.00mm
- Lifetime @ Temp
- 3000 Hrs @ 105°C
- Leakage Current
- 1.08mA
- Ripple Current
- 2.04A
- Polarization
- Polar
- Life (Hours)
- 3000 hours
- Tan Delta
- 0.15
- Ripple Current @ Low Frequency
- 2.04A @ 120Hz
- Ripple Current @ High Frequency
- 3.06A @ 50kHz
- Diameter
- 25mm
- Height
- 35mm
- Height Seated (Max)
- 1.378 35.00mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for NICHICON LGU2C821MELA.
LGU2C821MELA Overview
During full charge, the ripple current is 3.06A @ 50kHz.When the battery is charged to its lowest level, the ripple current is 2.04A @ 120Hz.You should keep the height of the seat (Max) below 1.378 35.00mm.Rated DC voltage of 160V is used to operate this capacitor.If you want high efficiency, you should keep the operating temperature at -40°C~105°C.
LGU2C821MELA Features
the ripple current is 3.06A @ 50kHz.
the ripple current is 2.04A @ 120Hz.
voltage - Rated DC of 160V
an operating temperature of -40°C~105°C
LGU2C821MELA Applications
There are a lot of Nichicon
LGU2C821MELA applications of aluminum electrolytic capacitors.
- Power supplies
- Computer motherboards
- Uninterruptible power supplies
- Frequency converters
- Computer
- Telecommunication
- Industrial systems
- Smoothing and filtering applications
- Standard and switched mode power supplies
- Energy storage in pulse systems
