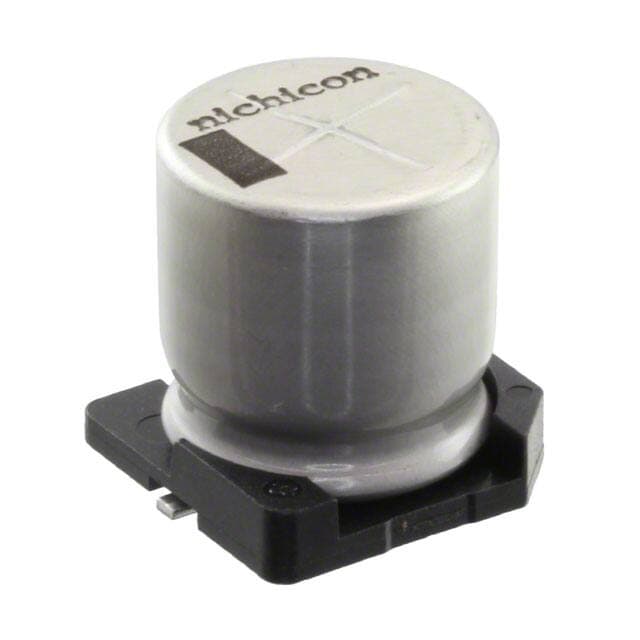

NICHICON UCZ1J151MNQ1MS
NICHICON UCZ1J151MNQ1MS

NICHICON UCZ1J151MNQ1MS

Manufacturer No:

UCZ1J151MNQ1MS

Manufacturer:

NICHICON

Package:

Radial, Can - SMD

Description:

UCZ 150?F Capacitor ±20% Tape & Reel (TR) Surface Mount 1A 0.492Dia 12.50mm -40°C~125°C Polar Radial, Can - SMD

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UCZ1J151MNQ1MS information

NICHICON UCZ1J151MNQ1MS technical specifications, attributes, parameters and parts with similar specifications to NICHICON UCZ1J151MNQ1MS.

  • Type
  • Parameter
  • Factory Lead Time
  • 24 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Weight
  • 2.350005g
  • Surface Mount Land Size
  • 0.535Lx0.535W 13.60mmx13.60mm
  • Operating Temperature
  • -40°C~125°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • UCZ
  • Published
  • 2015
  • Size / Dimension
  • 0.492Dia 12.50mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • SMD/SMT
  • Applications
  • General Purpose
  • Capacitance
  • 150?F
  • Voltage - Rated DC
  • 63V
  • ESR (Equivalent Series Resistance)
  • 200mOhm @ 100kHz
  • Lifetime @ Temp
  • 3000 Hrs @ 125°C
  • Leakage Current
  • 3?A
  • Ripple Current
  • 1A
  • Polarization
  • Polar
  • Ripple Current @ Low Frequency
  • 500mA @ 120Hz
  • Ripple Current @ High Frequency
  • 1A @ 100kHz
  • Dissipation Factor
  • 0.12 %
  • Height Seated (Max)
  • 0.571 14.50mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UCZ1J151MNQ1MS.

Datasheets:

UCZ1J151MNQ1MS Overview


Full charge results in a ripple current of 1A @ 100kHz.200mOhm @ 100kHz must have the ESR (Equivalent Series Resistance) to function properly.The ripple current at the lowest charge is 500mA @ 120Hz.Keeping the maximum height of the seated person (Max) below 0.571 14.50mm is recommended.Despite its 0.12 % dissipation factor, it still operates.Rated DC voltage is 63V for this capacitor.High efficiency requires an operating temperature of -40°C~125°C.

UCZ1J151MNQ1MS Features


the ripple current is 1A @ 100kHz.
the ripple current is 500mA @ 120Hz.
a dissipation factor of 0.12 %
voltage - Rated DC of 63V
an operating temperature of -40°C~125°C


UCZ1J151MNQ1MS Applications


There are a lot of Nichicon
UCZ1J151MNQ1MS applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
