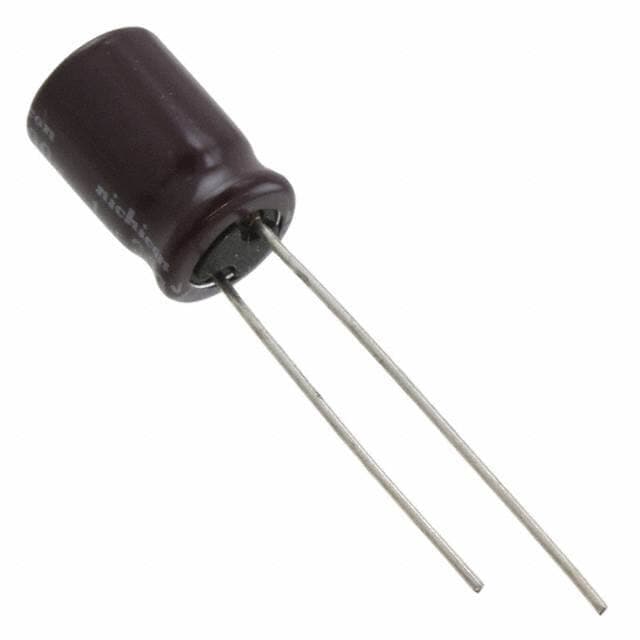

Nichicon UPM1C221MPD
Nichicon UPM1C221MPD

Nichicon UPM1C221MPD

Manufacturer No:

UPM1C221MPD

Manufacturer:

Nichicon

Package:

Radial, Can

Description:

UPM 220?F Capacitor ±20% Bulk Through Hole 335mA 0.315Dia 8.00mm -55°C~105°C Polar 3.5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UPM1C221MPD information

Nichicon UPM1C221MPD technical specifications, attributes, parameters and parts with similar specifications to Nichicon UPM1C221MPD.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • PCB, Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Terminal Shape
  • WIRE
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Bulk
  • Series
  • UPM
  • Published
  • 2004
  • Size / Dimension
  • 0.315Dia 8.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • Capacitance
  • 220?F
  • Voltage - Rated DC
  • 16V
  • Lead Pitch
  • 3.5mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Spacing
  • 0.138 3.50mm
  • Lead Diameter
  • 600 ?m
  • Voltage
  • 16V
  • Lifetime @ Temp
  • 3000 Hrs @ 105°C
  • Leakage Current
  • 105.6?A
  • Ripple Current
  • 335mA
  • Polarization
  • Polar
  • Life (Hours)
  • 3000 hours
  • Impedance
  • 160mOhm
  • Ripple Current @ Low Frequency
  • 335mA @ 120Hz
  • Dissipation Factor
  • 0.16 %
  • Ripple Current (AC)
  • 205mA
  • Diameter
  • 8mm
  • Height
  • 11.5mm
  • Height Seated (Max)
  • 0.512 13.00mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Nichicon UPM1C221MPD.

Datasheets:

UPM1C221MPD Overview


If the charge is low, ripple current is 335mA @ 120Hz.Keep your seated height below 0.512 13.00mm.Based on the dissipation factor of 0.16 %, it operates.A voltage of 16V DC is used to operate this capacitor.A voltage of 16V AC powers this capacitor.The maximum efficiency can be achieved by maintaining -55°C~105°C as the operating temperature.

UPM1C221MPD Features


the ripple current is 335mA @ 120Hz.
a dissipation factor of 0.16 %
voltage - Rated DC of 16V
an operating temperature of -55°C~105°C


UPM1C221MPD Applications


There are a lot of Nichicon
UPM1C221MPD applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
