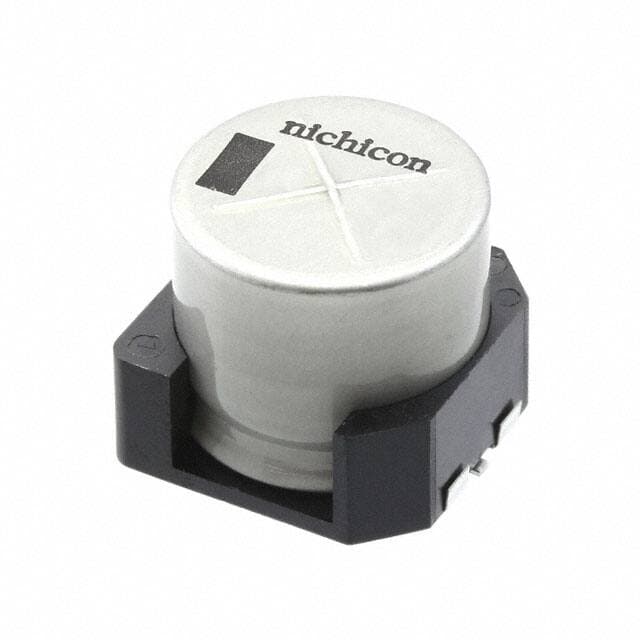

NICHICON UCX1V122MNS1ZD
NICHICON UCX1V122MNS1ZD

NICHICON UCX1V122MNS1ZD

Manufacturer No:

UCX1V122MNS1ZD

Manufacturer:

NICHICON

Package:

Radial, Can - SMD

Description:

UCX 1200?F Capacitor ±20% Tray Surface Mount 1.4A 0.709Dia 18.00mm -40°C~135°C Polar Radial, Can - SMD

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UCX1V122MNS1ZD information

NICHICON UCX1V122MNS1ZD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UCX1V122MNS1ZD.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Surface Mount Land Size
  • 0.752Lx0.752W 19.10mmx19.10mm
  • Operating Temperature
  • -40°C~135°C
  • Packaging
  • Tray
  • Series
  • UCX
  • Published
  • 2015
  • Size / Dimension
  • 0.709Dia 18.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Terminal Finish
  • Tin (Sn)
  • Applications
  • General Purpose
  • Voltage - Rated
  • 35V
  • Capacitance
  • 1200?F
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • ESR (Equivalent Series Resistance)
  • 50mOhm
  • Lifetime @ Temp
  • 2000 Hrs @ 135°C
  • Ripple Current
  • 1.4A
  • Life (Hours)
  • 2000 hours
  • Ripple Current @ Low Frequency
  • 700mA @ 120Hz
  • Ripple Current @ High Frequency
  • 1.4A @ 100kHz
  • Height Seated (Max)
  • 0.669 17.00mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UCX1V122MNS1ZD.

Datasheets:

UCX1V122MNS1ZD Overview


In terms of ripple current, it is 1.4A @ 100kHz at full charge.In order for 50mOhm to perform its full function, the ESR (Equivalent Series Resistance) needs to be provided.When the charge is lowest, the ripple current is 700mA @ 120Hz.Sitting height (Max) should not exceed 0.669 17.00mm.It is recommended to maintain the operating temperature at -40°C~135°C in order to maximize efficiency.

UCX1V122MNS1ZD Features


the ripple current is 1.4A @ 100kHz.
the ripple current is 700mA @ 120Hz.
an operating temperature of -40°C~135°C


UCX1V122MNS1ZD Applications


There are a lot of Nichicon
UCX1V122MNS1ZD applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
