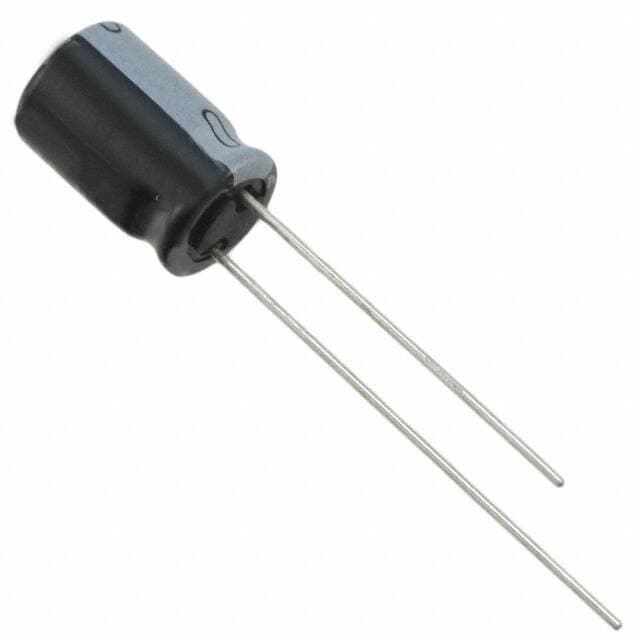

Nichicon UHE1H101MPD
Nichicon UHE1H101MPD

Nichicon UHE1H101MPD

Manufacturer No:

UHE1H101MPD

Manufacturer:

Nichicon

Package:

Radial, Can

Description:

UHE 100?F Capacitor ±20% Bulk Through Hole 555mA 0.315Dia 8.00mm -40°C~105°C Polar 3.5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UHE1H101MPD information

Nichicon UHE1H101MPD technical specifications, attributes, parameters and parts with similar specifications to Nichicon UHE1H101MPD.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Terminal Shape
  • WIRE
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • UHE
  • Published
  • 2004
  • Size / Dimension
  • 0.315Dia 8.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • HTS Code
  • 8532.22.00
  • Capacitance
  • 100?F
  • Voltage - Rated DC
  • 50V
  • Lead Pitch
  • 3.5mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • ESR (Equivalent Series Resistance)
  • 680mOhm
  • Lead Spacing
  • 0.138 3.50mm
  • Lead Diameter
  • 600 ?m
  • Voltage
  • 50V
  • Lifetime @ Temp
  • 7000 Hrs @ 105°C
  • Leakage Current
  • 50?A
  • Ripple Current
  • 555mA
  • Polarization
  • Polar
  • Life (Hours)
  • 7000 hours
  • Tan Delta
  • 0.10
  • Impedance
  • 170mOhm
  • Ripple Current @ Low Frequency
  • 388.5mA @ 120Hz
  • Ripple Current @ High Frequency
  • 555mA @ 100kHz
  • Dissipation Factor
  • 0.1 %
  • Diameter
  • 8mm
  • Height
  • 11.5mm
  • Height Seated (Max)
  • 0.453 11.50mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Nichicon UHE1H101MPD.

Datasheets:

UHE1H101MPD Overview


In terms of ripple current, it is 555mA @ 100kHz at full charge.In order for 680mOhm to perform its full function, the ESR (Equivalent Series Resistance) needs to be provided.When the charge is lowest, the ripple current is 388.5mA @ 120Hz.Sitting height (Max) should not exceed 0.453 11.50mm.Based on a dissipation factor of 0.1 %, it operates.Voltage - Rated DC of 50V is required to operate this capacitor.It is recommended to maintain the operating temperature at -40°C~105°C in order to maximize efficiency.

UHE1H101MPD Features


the ripple current is 555mA @ 100kHz.
the ripple current is 388.5mA @ 120Hz.
a dissipation factor of 0.1 %
voltage - Rated DC of 50V
an operating temperature of -40°C~105°C


UHE1H101MPD Applications


There are a lot of Nichicon
UHE1H101MPD applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems

User Guide
