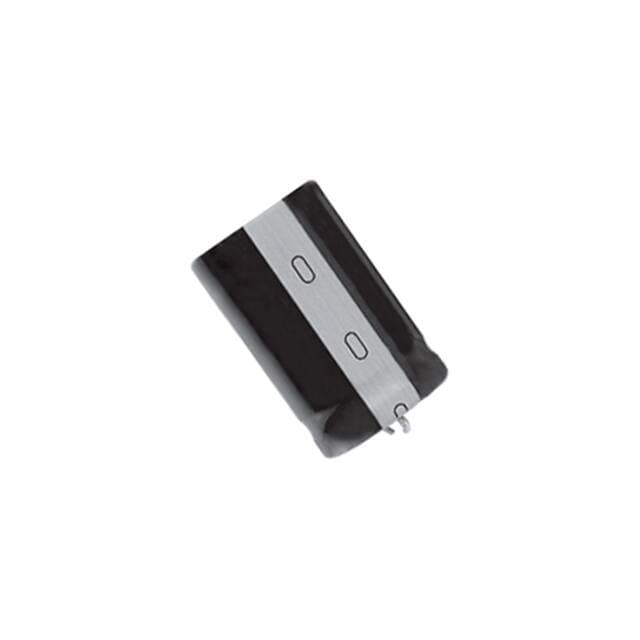

NICHICON LGM2W561MELC35

Manufacturer No:

LGM2W561MELC35

Manufacturer:

NICHICON

Package:

Radial, Can - Snap-In

Description:

LGM 560?F Capacitor ±20% Bulk Through Hole 1.2A 1.378Dia 35.00mm -25°C~105°C Polar 10.0076mm Radial, Can - Snap-In

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LGM2W561MELC35 information

NICHICON LGM2W561MELC35 technical specifications, attributes, parameters and parts with similar specifications to NICHICON LGM2W561MELC35.

Type
Parameter

Factory Lead Time
17 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can - Snap-In

Operating Temperature
-25°C~105°C

Packaging
Bulk

Series
LGM

Published
2015

Size / Dimension
1.378Dia 35.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Applications
General Purpose

Voltage - Rated
450V

Capacitance
560?F

Lead Pitch
10.0076mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.394 10.00mm

Lifetime @ Temp
2000 Hrs @ 105°C

Ripple Current
1.2A

Polarization
Polar

Life (Hours)
2000 hours

Height Seated (Max)
1.476 37.50mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON LGM2W561MELC35.

Datasheets:

nichicon-lgm2w471melc30-datasheets-3002.pdf

LGM2W561MELC35 Overview

As far as the ripple current is concerned, it is 1.2A @ 120Hz at the lowest charge.The height seated (Max) should be kept below 1.476 37.50mm.The operating temperature should be maintained at -25°C~105°C for high efficiency.

LGM2W561MELC35 Features

the ripple current is 1.2A @ 120Hz.
an operating temperature of -25°C~105°C

LGM2W561MELC35 Applications

There are a lot of Nichicon
LGM2W561MELC35 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
