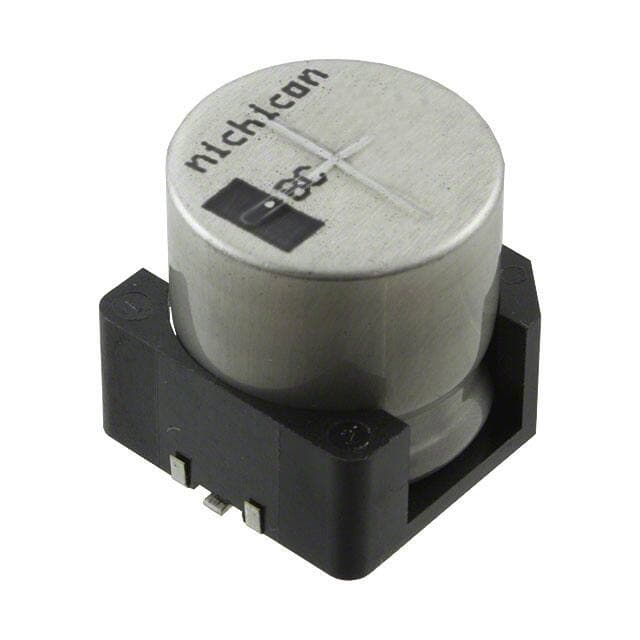

NICHICON UBC1V471MNS1MS
Manufacturer No:
UBC1V471MNS1MS
Manufacturer:
Package:
Radial, Can - SMD
Description:
UBC 470?F Capacitor ±20% Tape & Reel (TR) Surface Mount 750mA 0.630Dia 16.00mm -55°C~150°C Polar Radial, Can - SMD
Quantity:
Delivery:




Payment:






In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
UBC1V471MNS1MS information
NICHICON UBC1V471MNS1MS technical specifications, attributes, parameters and parts with similar specifications to NICHICON UBC1V471MNS1MS.
- Type
- Parameter
- Factory Lead Time
- 21 Weeks
- Mount
- PCB, Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- Radial, Can - SMD
- Terminal Shape
- FLAT
- Dielectric Material
- ALUMINUM (WET)
- Surface Mount Land Size
- 0.673Lx0.673W 17.10mmx17.10mm
- Operating Temperature
- -55°C~150°C
- Packaging
- Tape & Reel (TR)
- Series
- UBC
- Published
- 2009
- Size / Dimension
- 0.630Dia 16.00mm
- Tolerance
- ±20%
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- Termination
- SMD/SMT
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin (Sn)
- Applications
- Automotive
- HTS Code
- 8532.22.00
- Capacitance
- 470?F
- Capacitor Type
- ALUMINUM ELECTROLYTIC CAPACITOR
- Size Code
- 6767
- Voltage
- 35V
- Lifetime @ Temp
- 1000 Hrs @ 150°C
- Leakage Current
- 493.5?A
- Ripple Current
- 750mA
- Polarization
- Polar
- Life (Hours)
- 1000 hours
- Tan Delta
- 0.14
- Ripple Current @ Low Frequency
- 502.5mA @ 120Hz
- Ripple Current @ High Frequency
- 750mA @ 100kHz
- Diameter
- 16mm
- Height
- 16.5mm
- Height Seated (Max)
- 0.689 17.50mm
- Length
- 18.1mm
- Width
- 17.1mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for NICHICON UBC1V471MNS1MS.
UBC1V471MNS1MS Overview
In terms of ripple current, it is 750mA @ 100kHz at full charge.When the charge is lowest, the ripple current is 502.5mA @ 120Hz.Sitting height (Max) should not exceed 0.689 17.50mm.Voltage - Rated DC of 35V is required to operate this capacitor.It is recommended to maintain the operating temperature at -55°C~150°C in order to maximize efficiency.
UBC1V471MNS1MS Features
the ripple current is 750mA @ 100kHz.
the ripple current is 502.5mA @ 120Hz.
voltage - Rated DC of 35V
an operating temperature of -55°C~150°C
UBC1V471MNS1MS Applications
There are a lot of Nichicon
UBC1V471MNS1MS applications of aluminum electrolytic capacitors.
- Power supplies
- Computer motherboards
- Uninterruptible power supplies
- Frequency converters
- Computer
- Telecommunication
- Industrial systems
- Smoothing and filtering applications
- Standard and switched mode power supplies
- Energy storage in pulse systems
