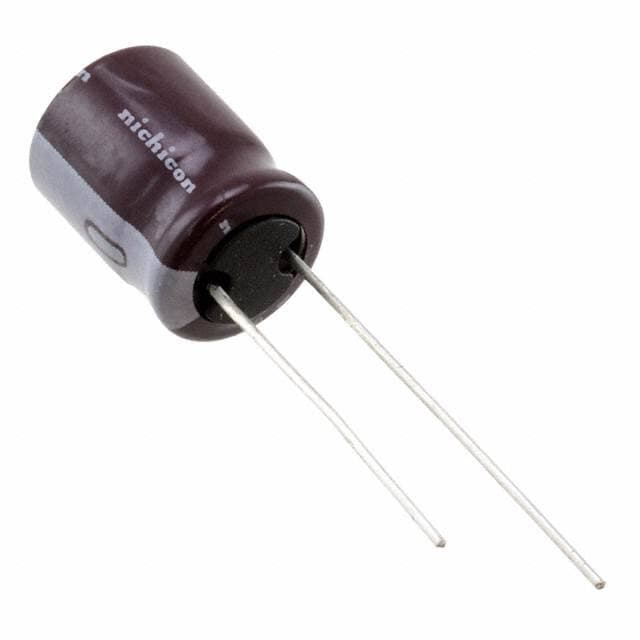

Nichicon UPS1J101MPD
Nichicon UPS1J101MPD

Nichicon UPS1J101MPD

Manufacturer No:

UPS1J101MPD

Manufacturer:

Nichicon

Package:

Radial, Can

Description:

UPS 100?F Capacitor ±20% Bulk Through Hole 390mA 0.394Dia 10.00mm -55°C~105°C Polar 5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UPS1J101MPD information

Nichicon UPS1J101MPD technical specifications, attributes, parameters and parts with similar specifications to Nichicon UPS1J101MPD.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • PCB, Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Terminal Shape
  • WIRE
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Bulk
  • Series
  • UPS
  • Published
  • 2004
  • Size / Dimension
  • 0.394Dia 10.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Applications
  • General Purpose
  • Capacitance
  • 100?F
  • Voltage - Rated DC
  • 63V
  • Lead Pitch
  • 5mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Spacing
  • 0.197 5.00mm
  • Lead Diameter
  • 600 ?m
  • Voltage
  • 63V
  • Lifetime @ Temp
  • 2000 Hrs @ 105°C
  • Leakage Current
  • 189?A
  • Ripple Current
  • 390mA
  • Polarization
  • Polar
  • Life (Hours)
  • 2000 hours
  • Tan Delta
  • 0.16
  • Impedance
  • 310mOhm
  • Ripple Current @ Low Frequency
  • 195mA @ 120Hz
  • Ripple Current @ High Frequency
  • 390mA @ 100kHz
  • Dissipation Factor
  • 0.09 %
  • Ripple Current (AC)
  • 390mA
  • Diameter
  • 10mm
  • Height
  • 12.5mm
  • Height Seated (Max)
  • 0.551 14.00mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Nichicon UPS1J101MPD.

Datasheets:

UPS1J101MPD Overview


During full charge, the ripple current is 390mA @ 100kHz.When the battery is charged to its lowest level, the ripple current is 195mA @ 120Hz.You should keep the height of the seat (Max) below 0.551 14.00mm.Basically, it has a dissipation factor of 0.09 %.Rated DC voltage of 63V is used to operate this capacitor.Rated AC of 63V is the voltage at which this capacitor operates.If you want high efficiency, you should keep the operating temperature at -55°C~105°C.

UPS1J101MPD Features


the ripple current is 390mA @ 100kHz.
the ripple current is 195mA @ 120Hz.
a dissipation factor of 0.09 %
voltage - Rated DC of 63V
an operating temperature of -55°C~105°C


UPS1J101MPD Applications


There are a lot of Nichicon
UPS1J101MPD applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems

User Guide
