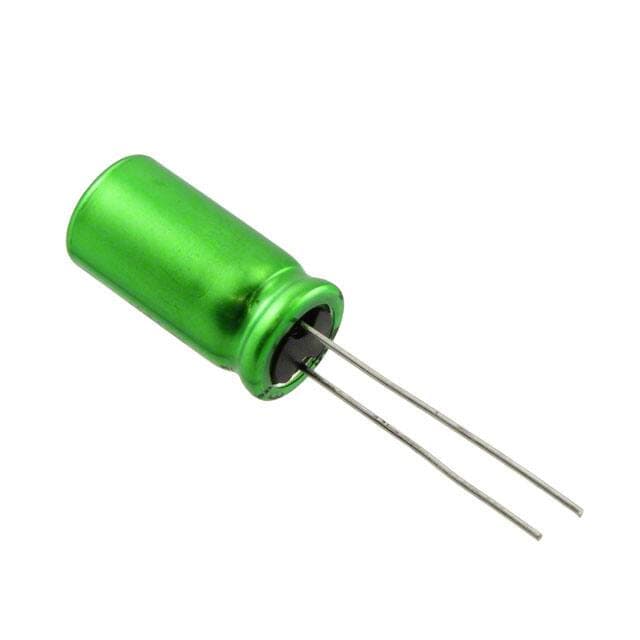

NICHICON UES1V101MPM

Manufacturer No:

UES1V101MPM

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UES 100?F Capacitor ±20% Bulk Through Hole 0.394Dia 10.00mm -40°C~85°C Bi-Polar 5.0038mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UES1V101MPM information

NICHICON UES1V101MPM technical specifications, attributes, parameters and parts with similar specifications to NICHICON UES1V101MPM.

Type
Parameter

Factory Lead Time
17 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Dielectric Material
ALUMINUM (WET)

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
UES

Published
2012

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
Audio

HTS Code
8532.22.00

Capacitance
100?F

Voltage - Rated DC
35V

Lead Pitch
5.0038mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Polarity
NON-POLARIZED

Lead Spacing
0.197 5.00mm

Lifetime @ Temp
1000 Hrs @ 85°C

Leakage Current
3?A

Polarization
Bi-Polar

Life (Hours)
1000 hours

Dissipation Factor
0.14 %

Diameter
10mm

Height
20mm

Height Seated (Max)
0.846 21.50mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UES1V101MPM.

Datasheets:

nichicon-ues1v101mpm-datasheets-5269.pdf

nichicon-ues1v101mpm-datasheets-5270.pdf

UES1V101MPM Overview

It is recommended to keep the height seated (Max) below 0.846 21.50mm.A 0.14 % dissipation factor is used.The capacitor operates at a voltage of 35V - Rated DC.For high efficiency, the operating temperature should be -40°C~85°C.

UES1V101MPM Features

a dissipation factor of 0.14 %
voltage - Rated DC of 35V
an operating temperature of -40°C~85°C

UES1V101MPM Applications

There are a lot of Nichicon
UES1V101MPM applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
