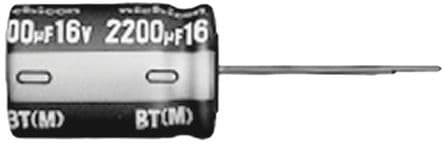

Nichicon UBT1H331MHD8
Nichicon UBT1H331MHD8

Nichicon UBT1H331MHD8

Manufacturer No:

UBT1H331MHD8

Manufacturer:

Nichicon

Package:

Radial, Can

Description:

UBT 330?F Capacitor ±20% Bulk Through Hole 1.33A 0.492Dia 12.50mm -40°C~125°C Polar 5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UBT1H331MHD8 information

Nichicon UBT1H331MHD8 technical specifications, attributes, parameters and parts with similar specifications to Nichicon UBT1H331MHD8.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Terminal Shape
  • WIRE
  • Dielectric Material
  • ALUMINUM (WET)
  • Operating Temperature
  • -40°C~125°C
  • Packaging
  • Bulk
  • Series
  • UBT
  • Published
  • 2009
  • Size / Dimension
  • 0.492Dia 12.50mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Number of Terminations
  • 2
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • Automotive
  • HTS Code
  • 8532.22.00
  • Capacitance
  • 330?F
  • Lead Pitch
  • 5mm
  • ESR (Equivalent Series Resistance)
  • 70mOhm
  • Lead Spacing
  • 0.197 5.00mm
  • Lead Diameter
  • 600 ?m
  • Voltage
  • 50V
  • Lifetime @ Temp
  • 10000 Hrs @ 125°C
  • Leakage Current
  • 4?A
  • Ripple Current
  • 1.33A
  • Polarization
  • Polar
  • Life (Hours)
  • 10000 hours
  • Tan Delta
  • 0.1
  • Impedance
  • 70mOhm
  • Ripple Current @ Low Frequency
  • 665mA @ 120Hz
  • Ripple Current @ High Frequency
  • 1.33A @ 100kHz
  • Diameter
  • 12.5mm
  • Height
  • 20mm
  • Height Seated (Max)
  • 0.866 22.00mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Nichicon UBT1H331MHD8.

Datasheets:

UBT1H331MHD8 Overview


A full charge means 1.33A @ 100kHz ripple current.A full performance of 70mOhm requires the ESR (Equivalent Series Resistance).During the lowest charge, ripple current is 665mA @ 120Hz.You should keep the seated height (Max) below 0.866 22.00mm.When operating at -40°C~125°C, high efficiency can be achieved.

UBT1H331MHD8 Features


the ripple current is 1.33A @ 100kHz.
the ripple current is 665mA @ 120Hz.
an operating temperature of -40°C~125°C


UBT1H331MHD8 Applications


There are a lot of Nichicon
UBT1H331MHD8 applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
