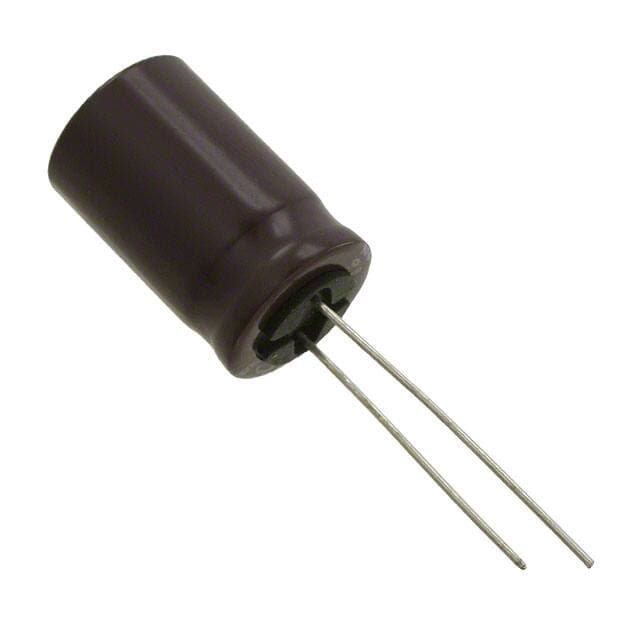

Nichicon UCS2G220MHD

Manufacturer No:

UCS2G220MHD

Manufacturer:

Nichicon

Package:

Radial, Can

Description:

UCS 22?F Capacitor ±20% Bulk Through Hole 760mA 0.492Dia 12.50mm -40°C~105°C Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UCS2G220MHD information

Nichicon UCS2G220MHD technical specifications, attributes, parameters and parts with similar specifications to Nichicon UCS2G220MHD.

Type
Parameter

Factory Lead Time
19 Weeks

Contact Plating
Tin

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Dielectric Material
ALUMINUM (WET)

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
UCS

Published
2009

Size / Dimension
0.492Dia 12.50mm

Tolerance
±20%

JESD-609 Code
e2

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Applications
General Purpose

HTS Code
8532.22.00

Capacitance
22?F

Lead Pitch
5mm

Lead Spacing
0.197 5.00mm

Lead Diameter
600 ?m

Voltage
400V

Lifetime @ Temp
10000 Hrs @ 105°C

Leakage Current
0.452mA

Ripple Current
760mA

Polarization
Polar

Life (Hours)
10000 hours

Ripple Current @ Low Frequency
380mA @ 120Hz

Ripple Current @ High Frequency
760mA @ 100kHz

Dissipation Factor
0.24 %

Diameter
12.5mm

Height
20mm

Height Seated (Max)
0.846 21.50mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Nichicon UCS2G220MHD.

Datasheets:

nichicon-pcj1a391mcl1gs-datasheets-5842.pdf

UCS2G220MHD Overview

Ripple current at full charge is 760mA @ 100kHz.It is 380mA @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 0.846 21.50mm.Consequently, it operates with a dissipation factor of 0.24 % (0.24 %).It is recommended that the operating temperature be kept at -40°C~105°C to achieve high efficiency.

UCS2G220MHD Features

the ripple current is 760mA @ 100kHz.
the ripple current is 380mA @ 120Hz.
a dissipation factor of 0.24 %
an operating temperature of -40°C~105°C

UCS2G220MHD Applications

There are a lot of Nichicon
UCS2G220MHD applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
