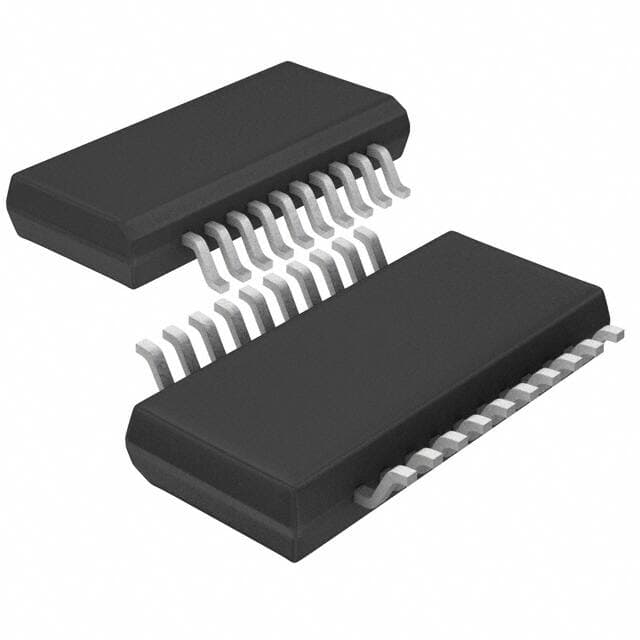

DIODES PI3C3245QEX

Manufacturer No:

PI3C3245QEX

Manufacturer:

DIODES

Package:

20-SSOP (0.154, 3.90mm Width)

Description:

20 Terminations 2.3V~3.6V 20 Pin PI3C3245 Signal switch 1 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PI3C3245QEX information

DIODES PI3C3245QEX technical specifications, attributes, parameters and parts with similar specifications to DIODES PI3C3245QEX.

Type
Parameter

Factory Lead Time
18 Weeks

Contact Plating
Tin

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
20-SSOP (0.154, 3.90mm Width)

Number of Pins
20

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Published
2011

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Type
Bus Switch

Resistance
8Ohm

Voltage - Supply
2.3V~3.6V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.635mm

Time@Peak Reflow Temperature-Max (s)
40

Qualification Status
Not Qualified

Circuit
8 x 1:1

Supply Voltage-Max (Vsup)
3.63V

Supply Voltage-Min (Vsup)
2.97V

Number of Ports
2

Number of Bits
8

Propagation Delay
250 ps

Quiescent Current
500?A

Turn On Delay Time
9.8 ns

Family
CB3Q/3VH/3C/2B

Output Characteristics
3-STATE

Supply Type
Single

Output Polarity
TRUE

High Level Output Current
-120mA

Low Level Output Current
120mA

Voltage Supply Source
Single Supply

Independent Circuits
1

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for DIODES PI3C3245QEX.

PI3C3245QEX Overview

In order to save board space, digital switch is located in the 20-SSOP (0.154, 3.90mm Width).Tape & Reel (TR) is the packaging method.Digital switch ic uses a Surface Mount mounting method.the multiplexers uses an analog IC Bus Switch.When the operating temperature is kept at -40°C~85°C, turn signal switch will not be susceptible to external factors.When operated with a 2.3V~3.6V supply voltage, digital controlled switch provides digital controlled switch's superior flexibility for designers.The basic configuration includes 20 terminations.The base part number is PI3C3245, which can also be used to find its logic switch related parts.The multiplexer's system is powered by 3.3V voltage.As the end of conductors, it uses GULL WING.Single is used as its supply type.With 20 pins, it is configured.Surface Mount is the way it is mounted.The logic switch belongs to the family of CB3Q/3VH/3C/2B.Signal multiplexer provides 8 bits.In order to prevent unnecessary failures, it is recommended that the minimal supply voltage (Vsup) be kept at 2.97V.It is advisable to keep the maximum supply voltage (Vsup) at 3.63V so as to avoid some unnecessary failures.In the absence of external influences, it consumes 500?A current of multiplexer ic.With a resistance of 0, it operates.With a resistance of 8Ohm, it operates.

PI3C3245QEX Features

Supplied in the 20-SSOP (0.154, 3.90mm Width) package
Adopting a supply type of Single

PI3C3245QEX Applications

There are a lot of Diodes Incorporated
PI3C3245QEX Signal Switches / Multiplexers / Decoders applications.

Telephone network
Computer memory
Transmission from the computer system of a satellite
Time division multiplexing system
Frequency multiplexing system
A/D converters
D/A converters
Implementing boolean functions with multiple variables
Data collection system
Audio transmission
