Manufacturer No:

PI4ULS5V104GAEX

Manufacturer:

DIODES

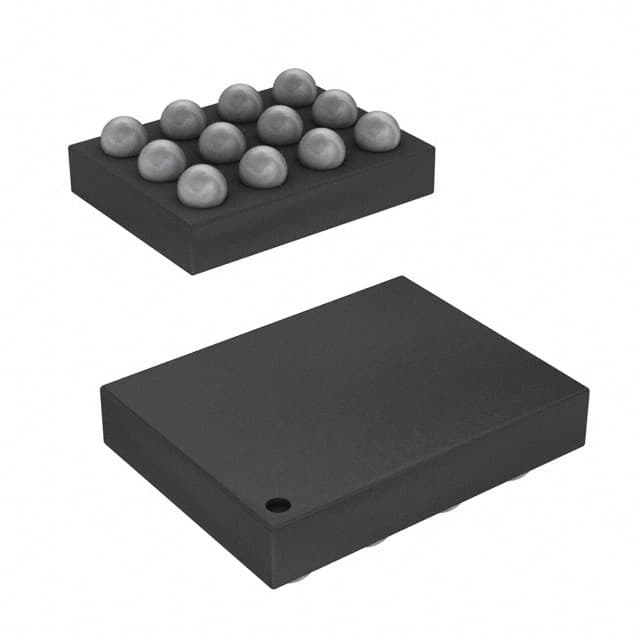

Package:

12-UFBGA, CSPBGA

Description:

Surface Mount 12 pins Tape & Reel (TR) 5.5V V Voltage Translators & Level Shifters 1 Voltage Level 12-UFBGA, CSPBGA Obsolete 10 Weeks Weeks 1 (Unlimited)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PI4ULS5V104GAEX information

DIODES PI4ULS5V104GAEX technical specifications, attributes, parameters and parts with similar specifications to DIODES PI4ULS5V104GAEX.

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 12-UFBGA, CSPBGA
  • Number of Pins
  • 12
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tape & Reel (TR)
  • Series
  • ULS
  • Published
  • 2013
  • Feature
  • Auto-Direction Sensing
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 12
  • ECCN Code
  • EAR99
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BALL
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 1
  • Supply Voltage
  • 1.5V
  • Terminal Pitch
  • 0.5mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • 4ULS5V104
  • Output Type
  • Tri-State, Non-Inverted
  • Operating Supply Voltage
  • 5.5V
  • Number of Channels
  • 4
  • Number of Circuits
  • 1
  • Number of Ports
  • 2
  • Number of Bits
  • 4
  • Propagation Delay
  • 4 ns
  • Logic Function
  • Level Shifter
  • Data Rate
  • 100Mbps
  • Output Characteristics
  • 3-STATE
  • Output Polarity
  • TRUE
  • Logic IC Type
  • BUS TRANSCEIVER
  • High Level Output Current
  • -20?A
  • Channel Type
  • Bidirectional
  • Low Level Output Current
  • 20?A
  • Translator Type
  • Voltage Level
  • Voltage - VCCA
  • 1.2V~3.6V
  • Voltage - VCCB
  • 1.65V~5.5V
  • Height Seated (Max)
  • 0.625mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for DIODES PI4ULS5V104GAEX.

PCN Packaging:

PI4ULS5V104GAEX Overview


12-UFBGA, CSPBGA contains it.Packaged in the way of Tape & Reel (TR).Tri-State, Non-Inverted is the output configured for it.Its translator type is Voltage Level.Mounting this electronic component follows the Surface Mount method.In this electrical device, the Channel type is Bidirectional.There is -40°C~85°C TA operating temperature.The circuit's superior flexibility is achieved through the use of 1 circuits.Transmission lines are terminated using 12 terminations.Parts that are related to 4ULS5V104 can be identified based on its base part number.Power comes from a voltage of 1.5V.The device is part of the ULS series.The board has 12 pins.4 Bits are used in the design of this electronic part.Level translators is configured from 1.2V~3.6V for the VCCA supply rail.Level translators is configured from 1.65V~5.5V for the VCCB supply rail.Using the method of Surface Mount, this electronic component is mounted.4 is the number of channels.A BUS TRANSCEIVER logic IC is used.In transmission lines, there are 2 terminations, which correspond to the characteristic impedance of the line.Level translators is possible to ensure Auto-Direction Sensing when operating.In order to achieve high efficiency, the supply voltage should be kept at 5.5V.
