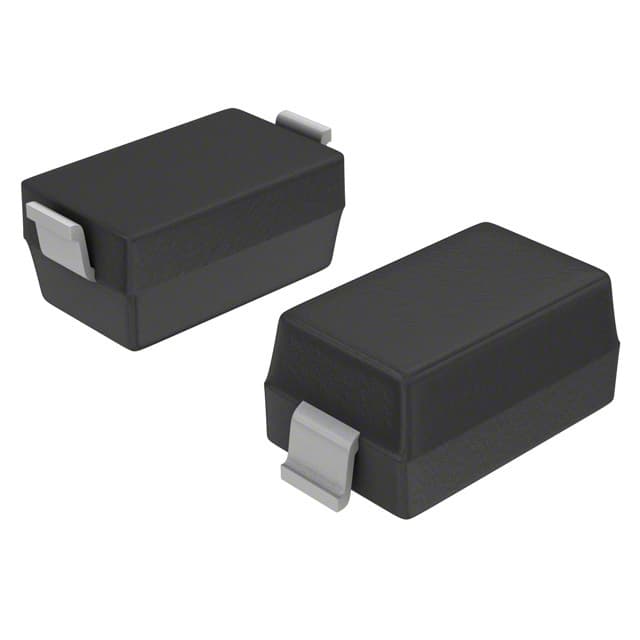

DIODES B0530W-7-F
DIODES B0530W-7-F

DIODES B0530W-7-F

Manufacturer No:

B0530W-7-F

Manufacturer:

DIODES

Package:

SOD-123

Description:

Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 430mV @ 500mA -65°C~125°C 130?A @ 30V 2-Termination Tape & Reel (TR) SOD-123 Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

B0530W-7-F information

DIODES B0530W-7-F technical specifications, attributes, parameters and parts with similar specifications to DIODES B0530W-7-F.

  • Type
  • Parameter
  • Factory Lead Time
  • 15 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • SOD-123
  • Number of Pins
  • 2
  • Weight
  • 10.007382mg
  • Diode Element Material
  • SILICON
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2003
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -65°C
  • HTS Code
  • 8541.10.00.70
  • Capacitance
  • 170pF
  • Subcategory
  • Rectifier Diodes
  • Voltage - Rated DC
  • 30V
  • Max Power Dissipation
  • 410mW
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Current Rating
  • 500mA
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • B0530
  • Pin Count
  • 2
  • Number of Elements
  • 1
  • Polarity
  • Standard
  • Element Configuration
  • Single
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Schottky
  • Current - Reverse Leakage @ Vr
  • 130?A @ 30V
  • Power Dissipation
  • 410mW
  • Output Current
  • 500mA
  • Voltage - Forward (Vf) (Max) @ If
  • 430mV @ 500mA
  • Forward Current
  • 500mA
  • Operating Temperature - Junction
  • -65°C~125°C
  • Forward Voltage
  • 430mV
  • Max Reverse Voltage (DC)
  • 30V
  • Average Rectified Current
  • 500mA
  • Peak Reverse Current
  • 130?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 30V
  • Capacitance @ Vr, F
  • 170pF @ 0V 1MHz

Download datasheets and manufacturer documentation for DIODES B0530W-7-F.

Datasheets:

Environmental Information:

PCN Design/Specification:

PCN Assembly/Origin:

B0530W-7-F Overview


There is no reason to reverse the voltage at 30V.Devices like this have an average rectified current of 500mA volts.In the course of its primary operation, this electronic or electrical device produces 410mW heat.There is no limit to the forward current value.The most energy losses ( 410mW heat) come from electronic and electrical devices.Having a current rating of 500mA means it can carry the maximum current an indefinite period without deterioration.This device can deliver 170pF values depending on the capacitance.On the data sheets, the peak reverse is indicated by the data chart as 130?A.

B0530W-7-F Features


an average rectified current of 500mA volts
the least amount of 410mW heat (energy loss)
a current rating of 500mA
the peak reverse is 130?A


B0530W-7-F Applications


There are a lot of Diodes Incorporated
B0530W-7-F applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
