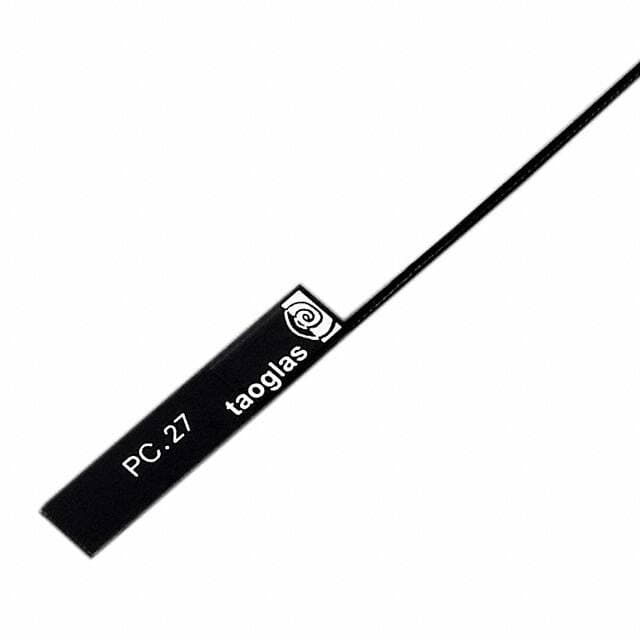

Taoglas Limited PC27.09.0100A

Manufacturer No:

PC27.09.0100A

Manufacturer:

Taoglas Limited

Package:

Description:

4 Bands Flat Patch Wide B Adhesive MMCX Male 800MHz 900MHz 1.8GHz 1.9GHz Bulk 0.031 0.80mm GSM

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PC27.09.0100A information

Taoglas Limited PC27.09.0100A technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited PC27.09.0100A.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Adhesive

Mounting Type
Adhesive

Packaging
Bulk

Series
TheStripe?

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
MMCX Male

Applications
GSM

Frequency
1.9GHz

Impedance
50Ohm

Max Frequency
1.9GHz

RF Family/Standard
Cellular

Antenna Type
Flat Patch

VSWR
3.59, 2.02. 2.21, 2.3

Number of Bands
4

Frequency Group
Wide B

Frequency (Center/Band)
800MHz 900MHz 1.8GHz 1.9GHz

Height
787.4?m

Length
34mm

Width
7mm

Height (Max)
0.031 0.80mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Taoglas Limited PC27.09.0100A.

PC27.09.0100A Overview

RF Antennas can be generalized using Adhesive.An Antenna RF from the series TheStripe?.An enclosure of Bulk is used to package the RF modulator.As it has a Adhesive, it's suitable for most RF ic designs.

PC27.09.0100A Features

With Adhesive
TheStripe? series

PC27.09.0100A Applications

There are a lot of Taoglas Limited
PC27.09.0100A RF Antennas applications.

Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
